Connector Locations

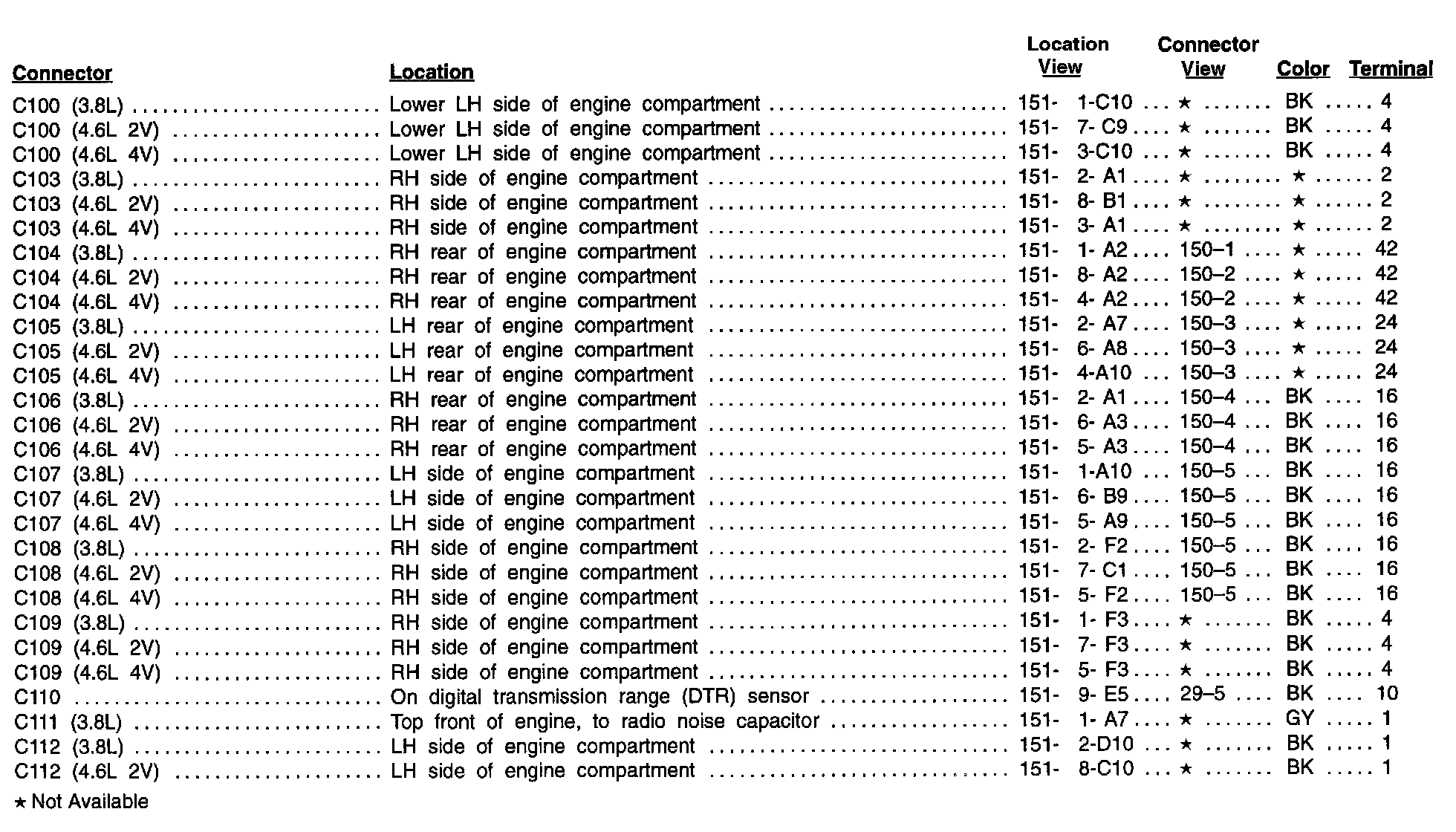

C100-C112:

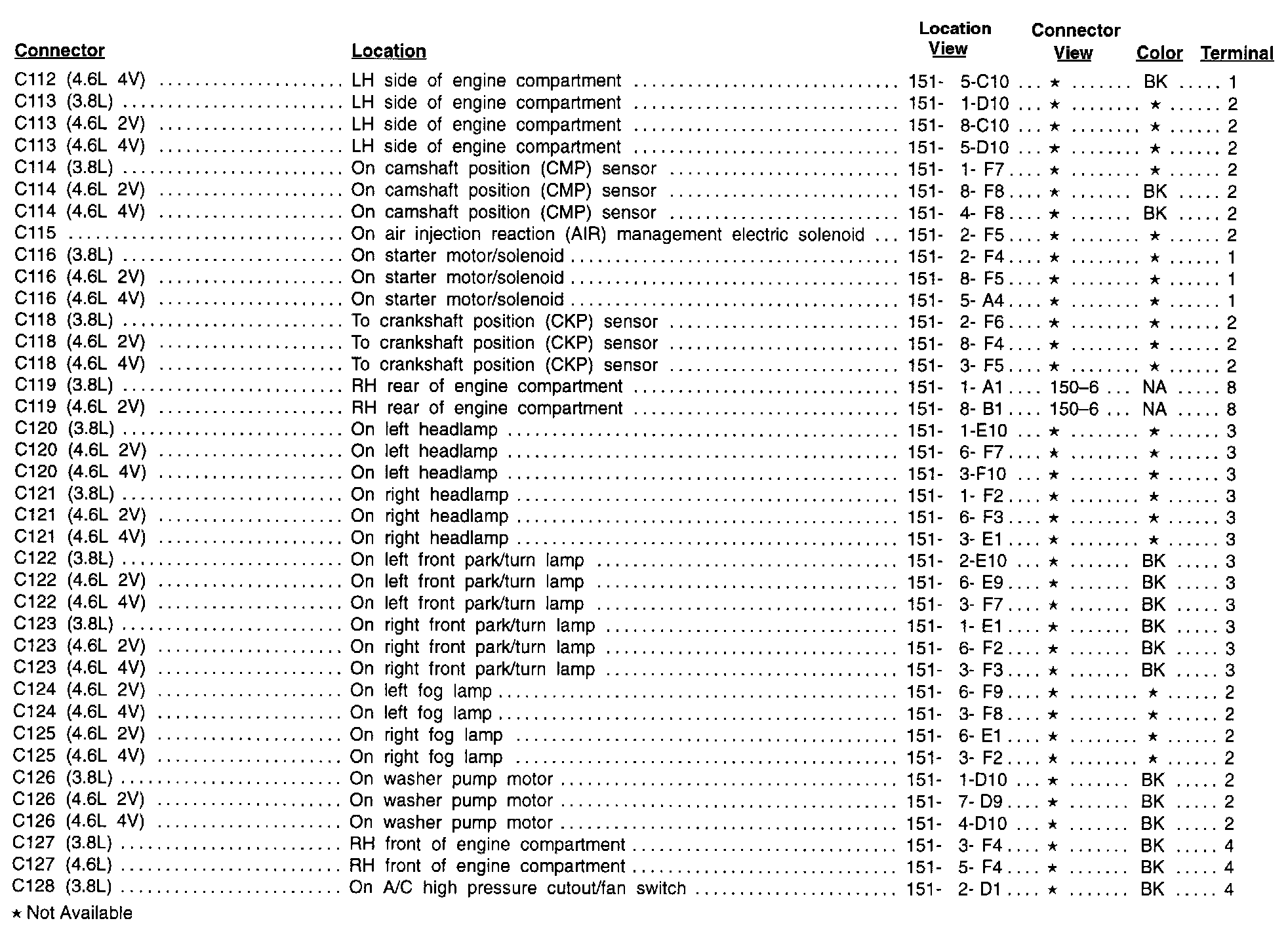

C112-C128:

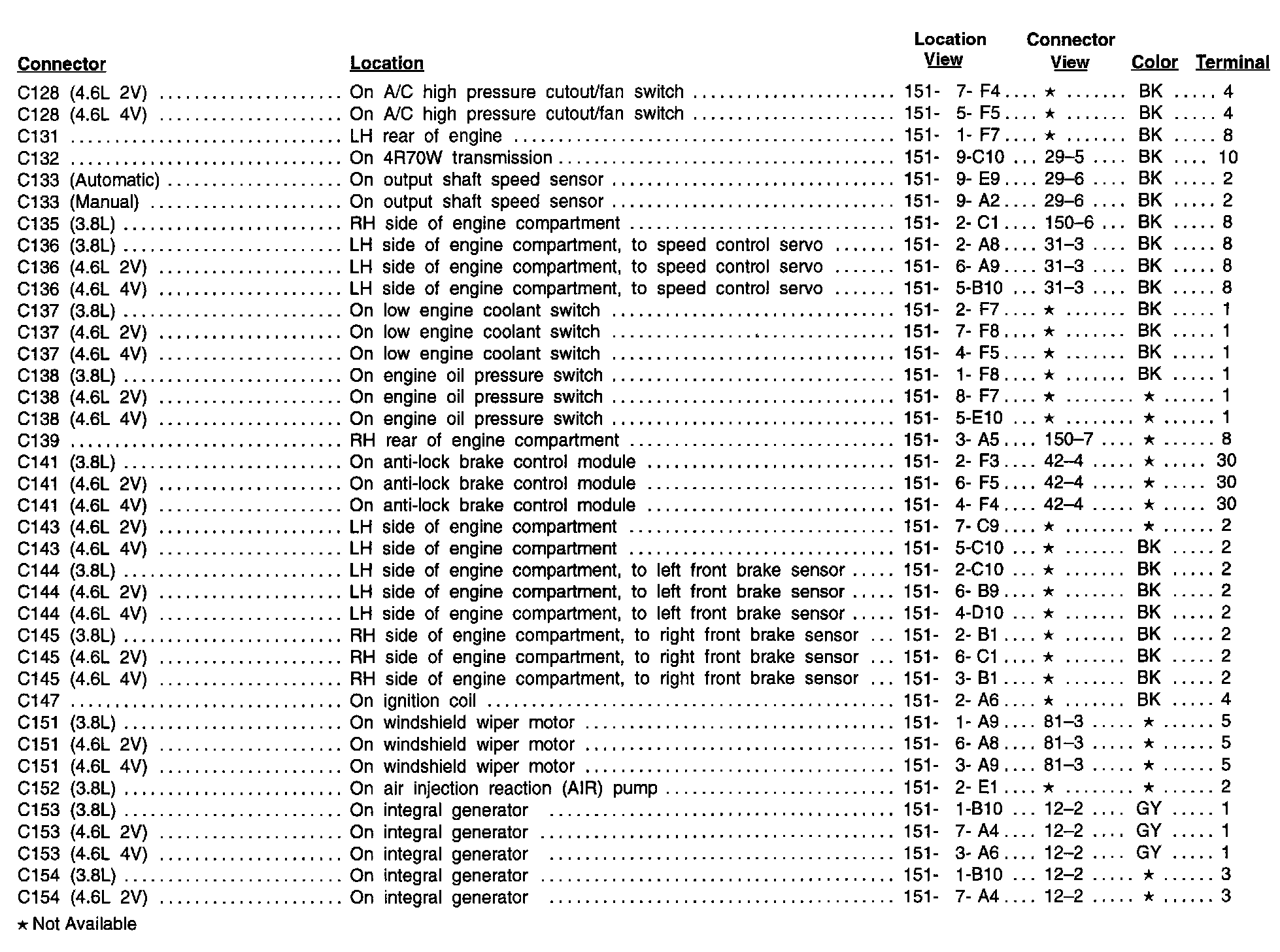

C128-C154:

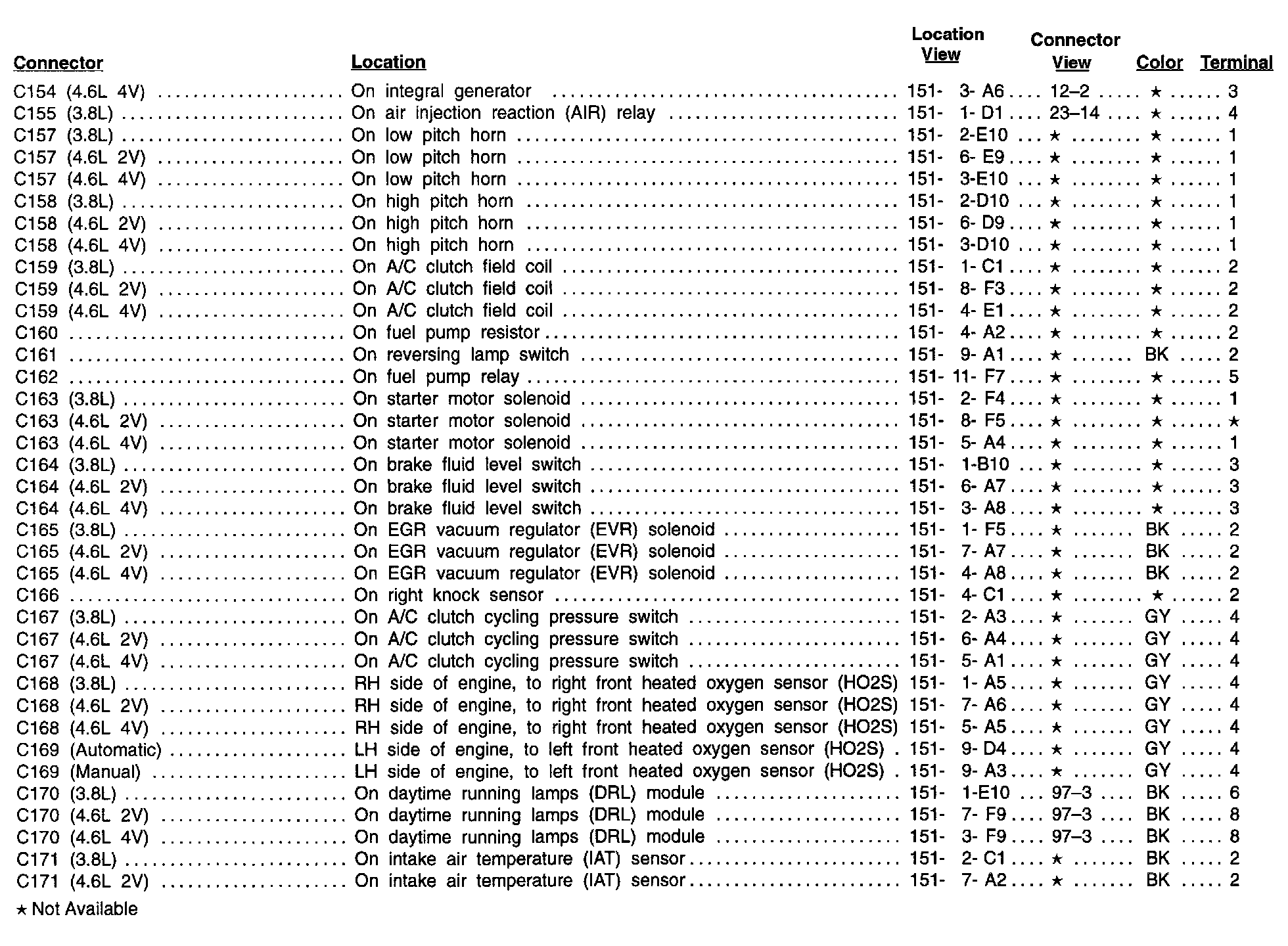

C154-C171:

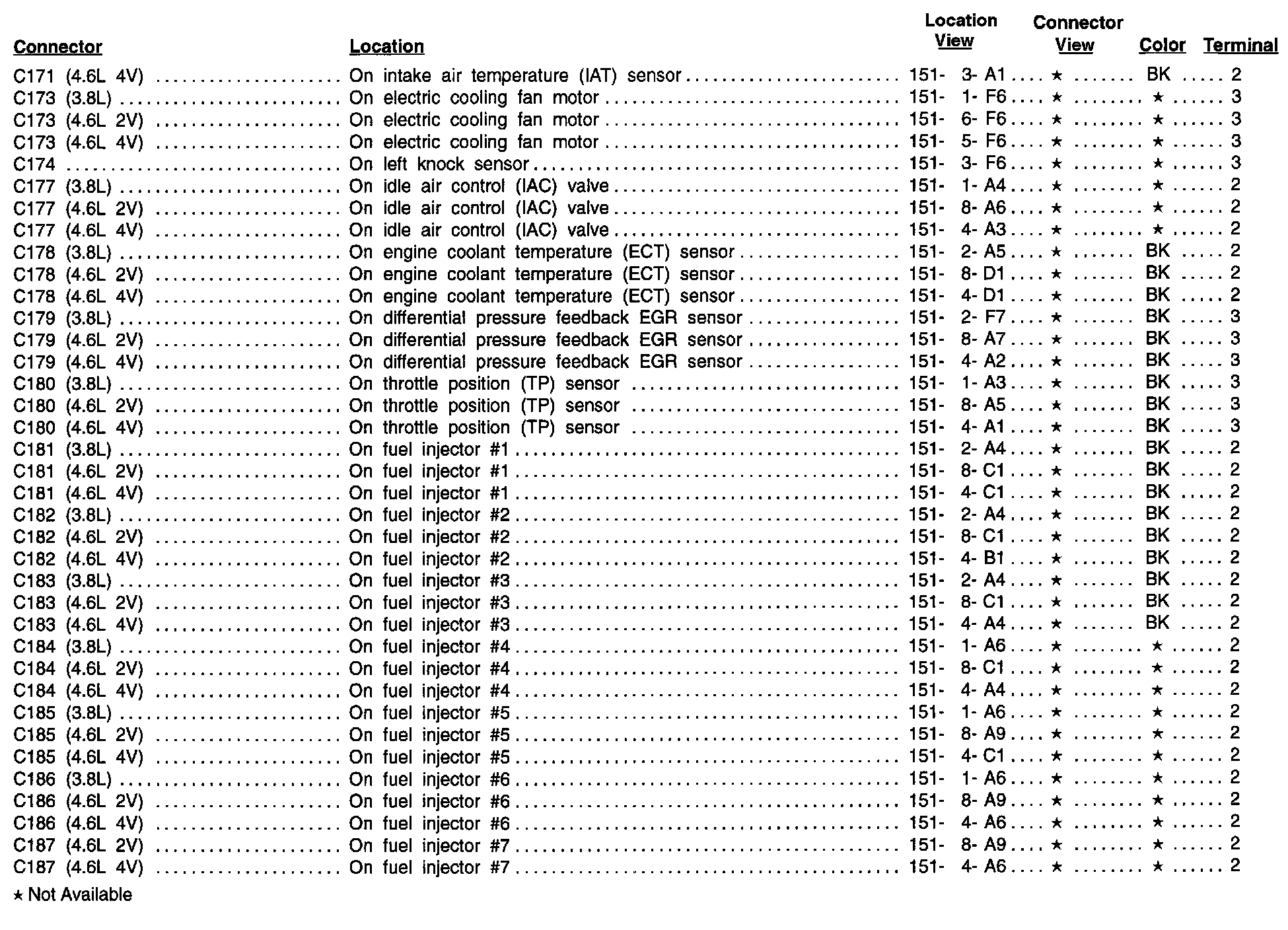

C171-C187:

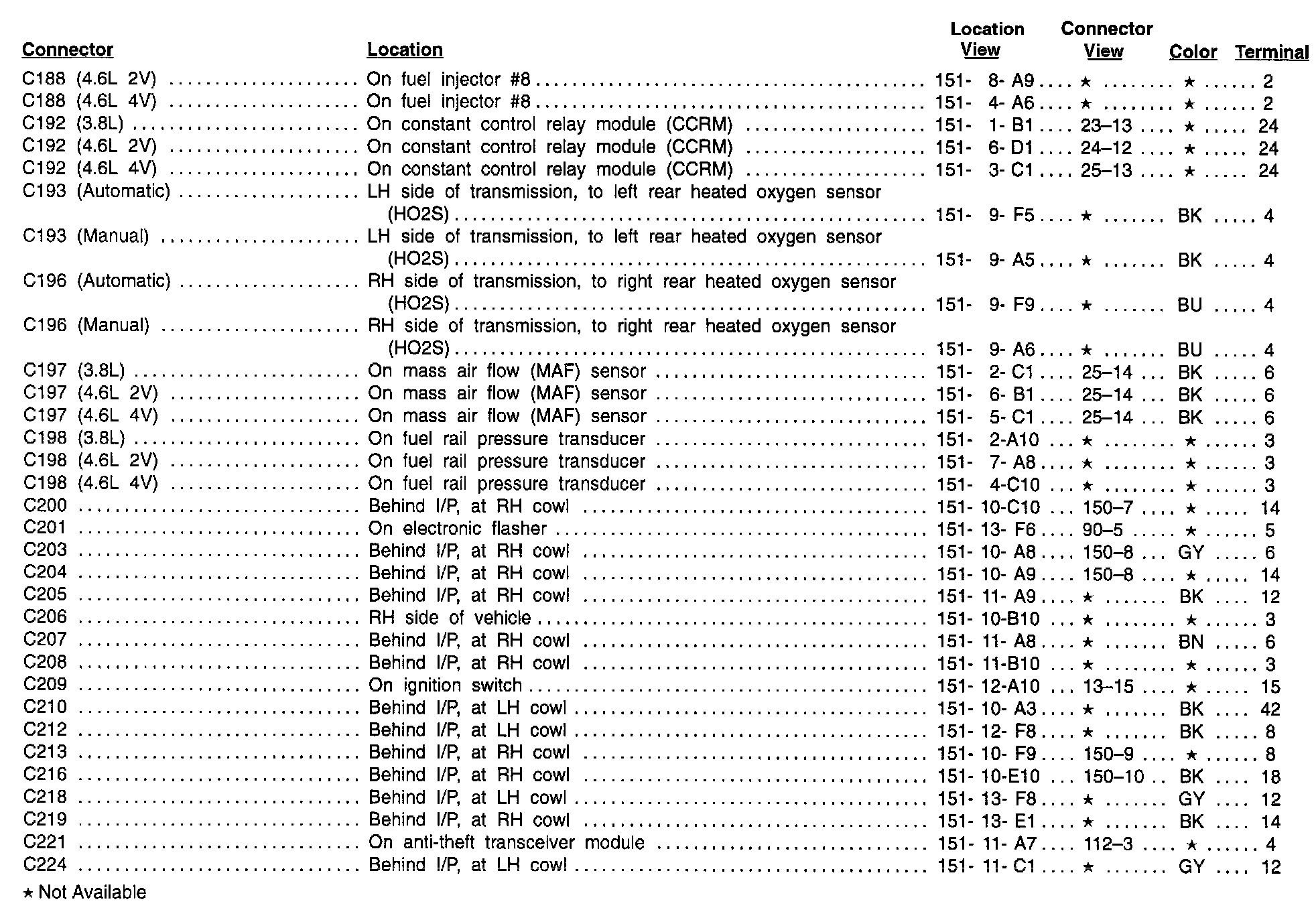

C188-C224:

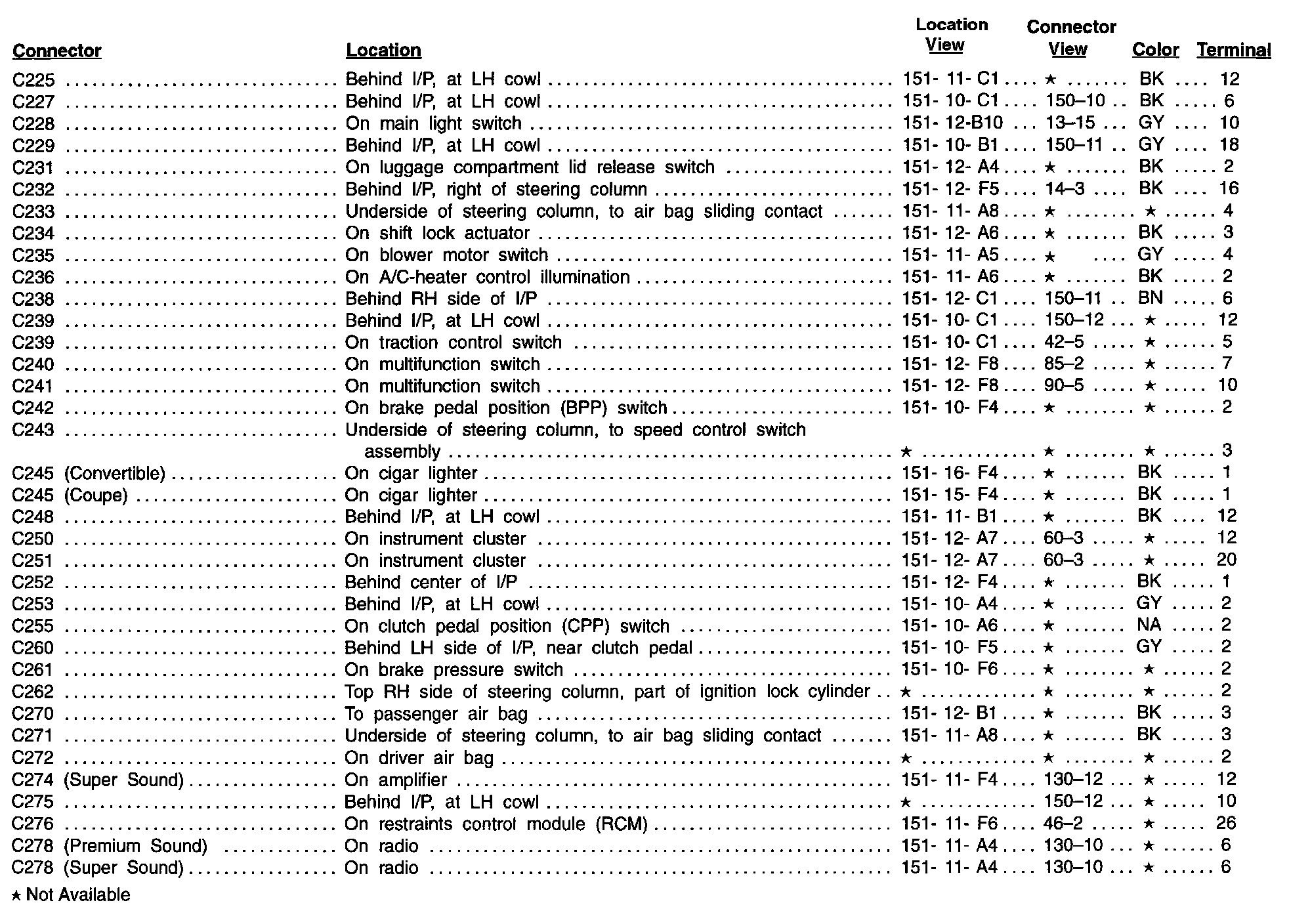

C225-C278:

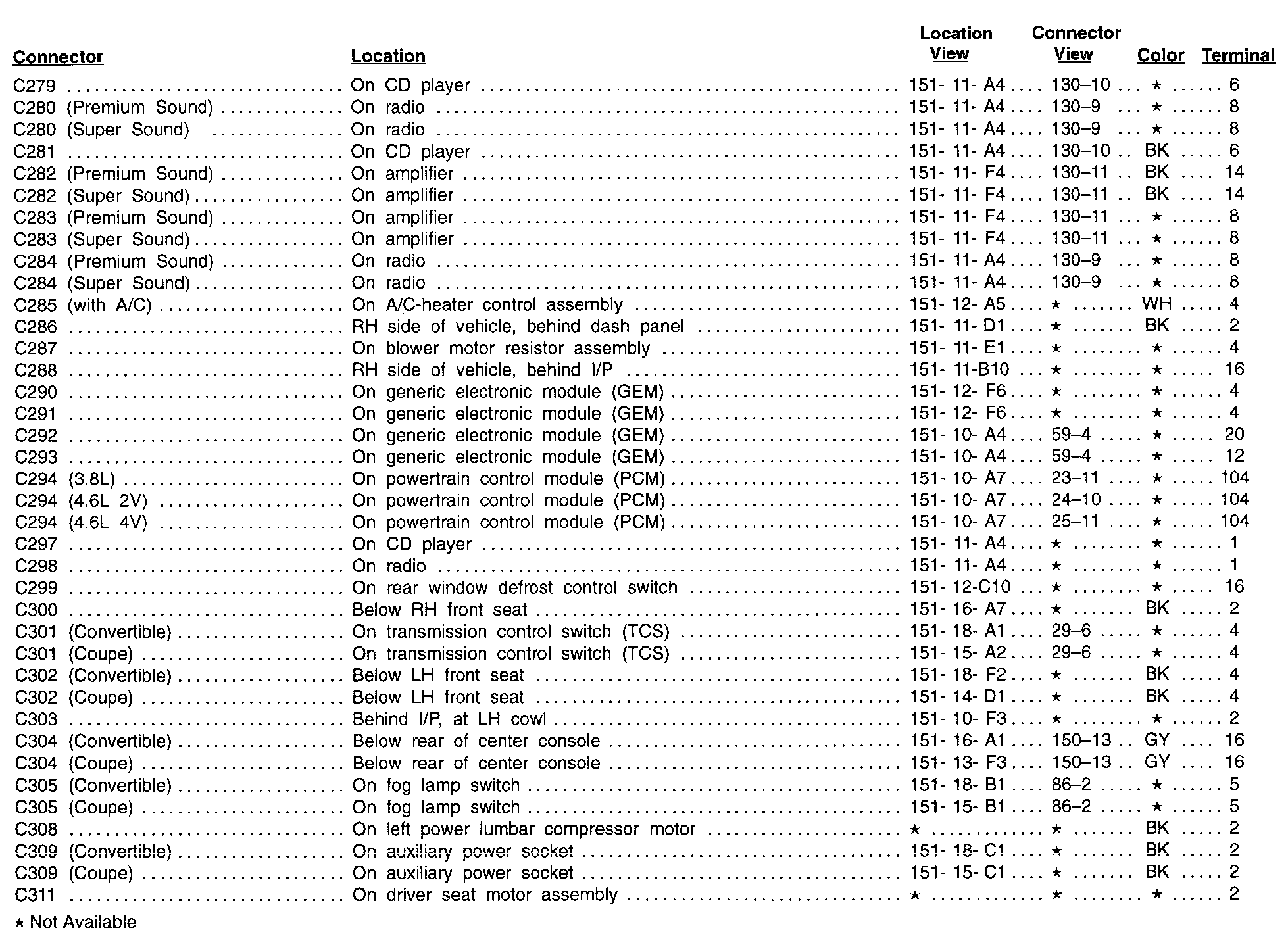

C279-C311:

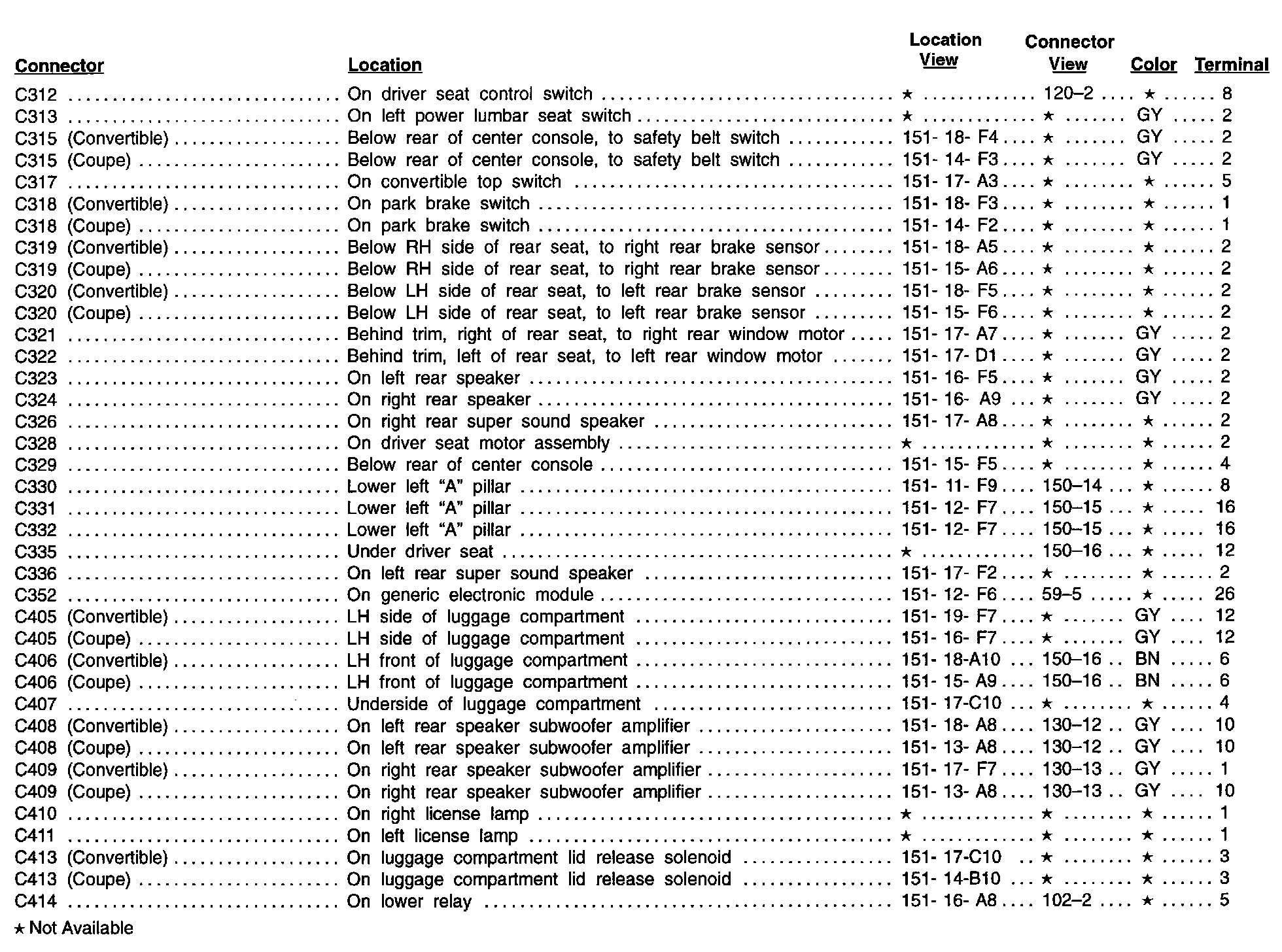

C312-C414:

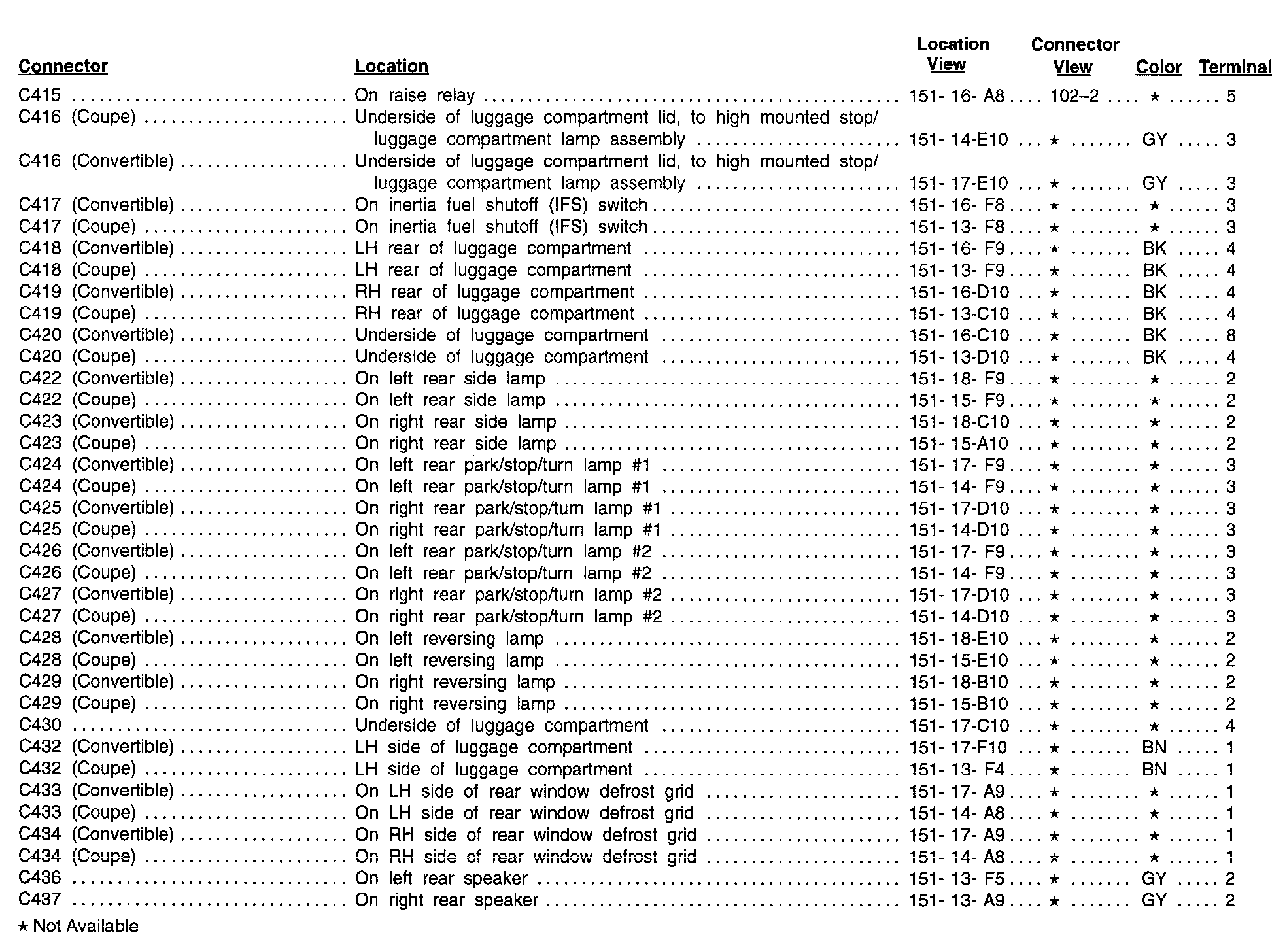

C415-C437:

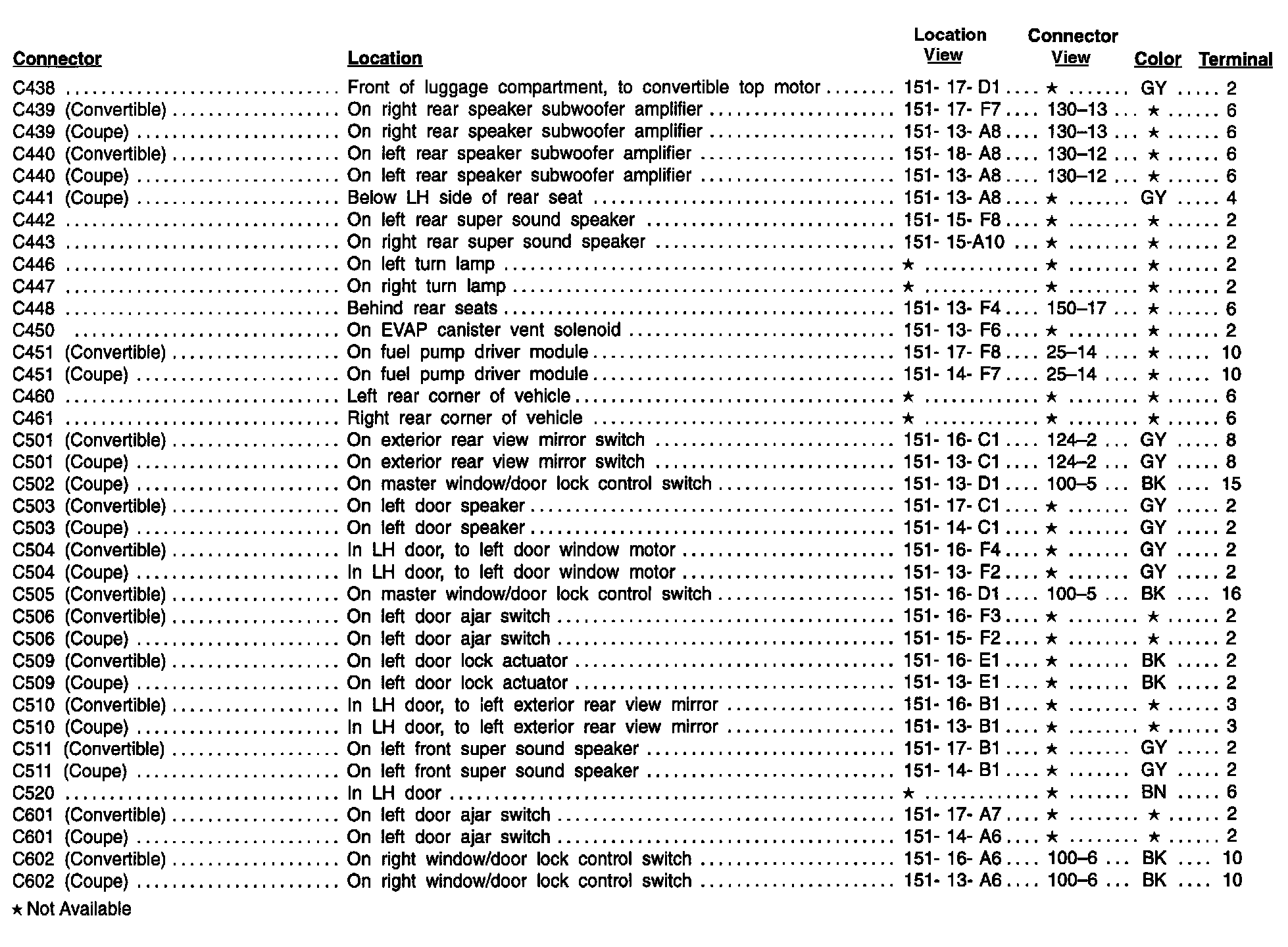

C438-C602:

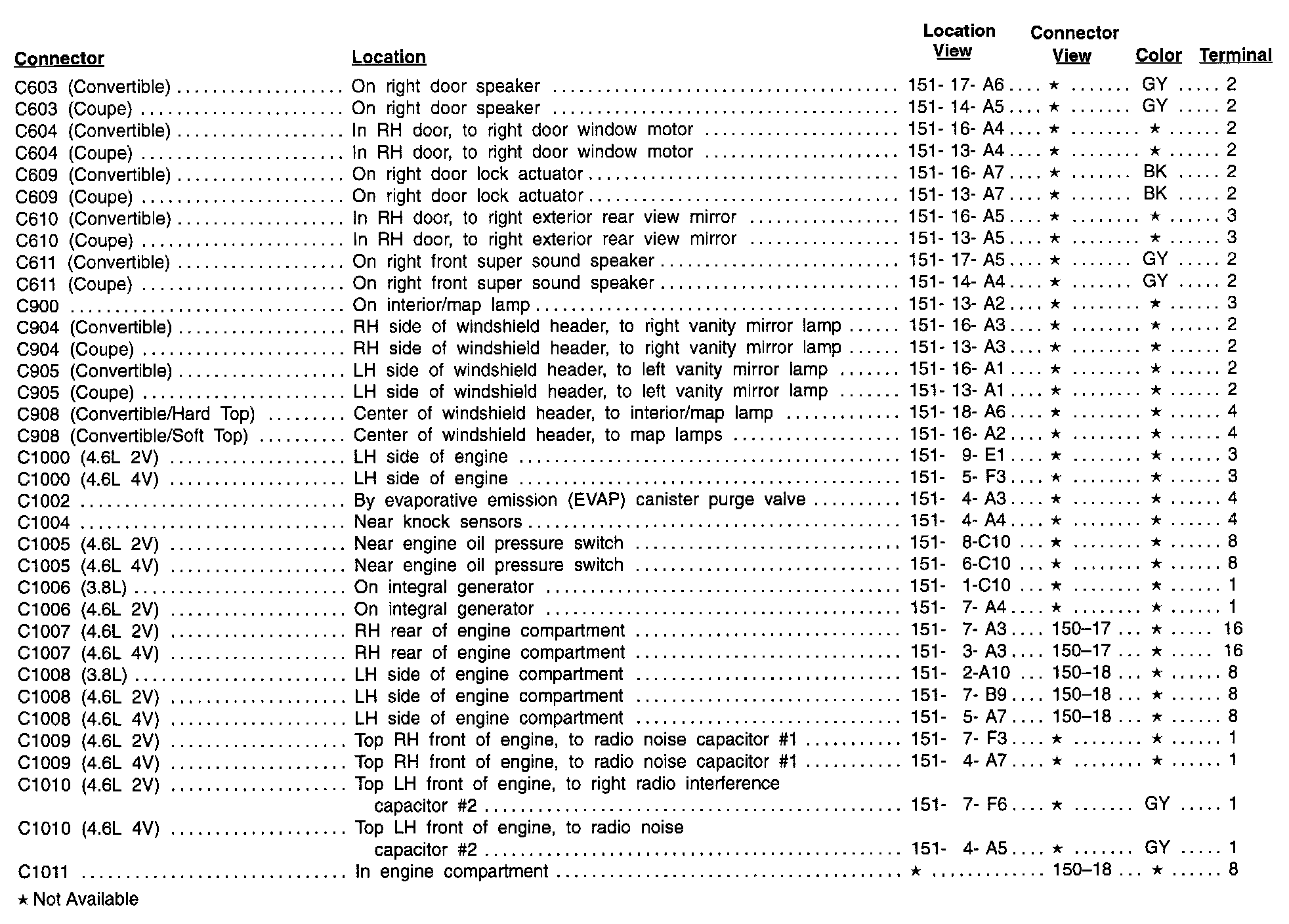

C603-C1011:

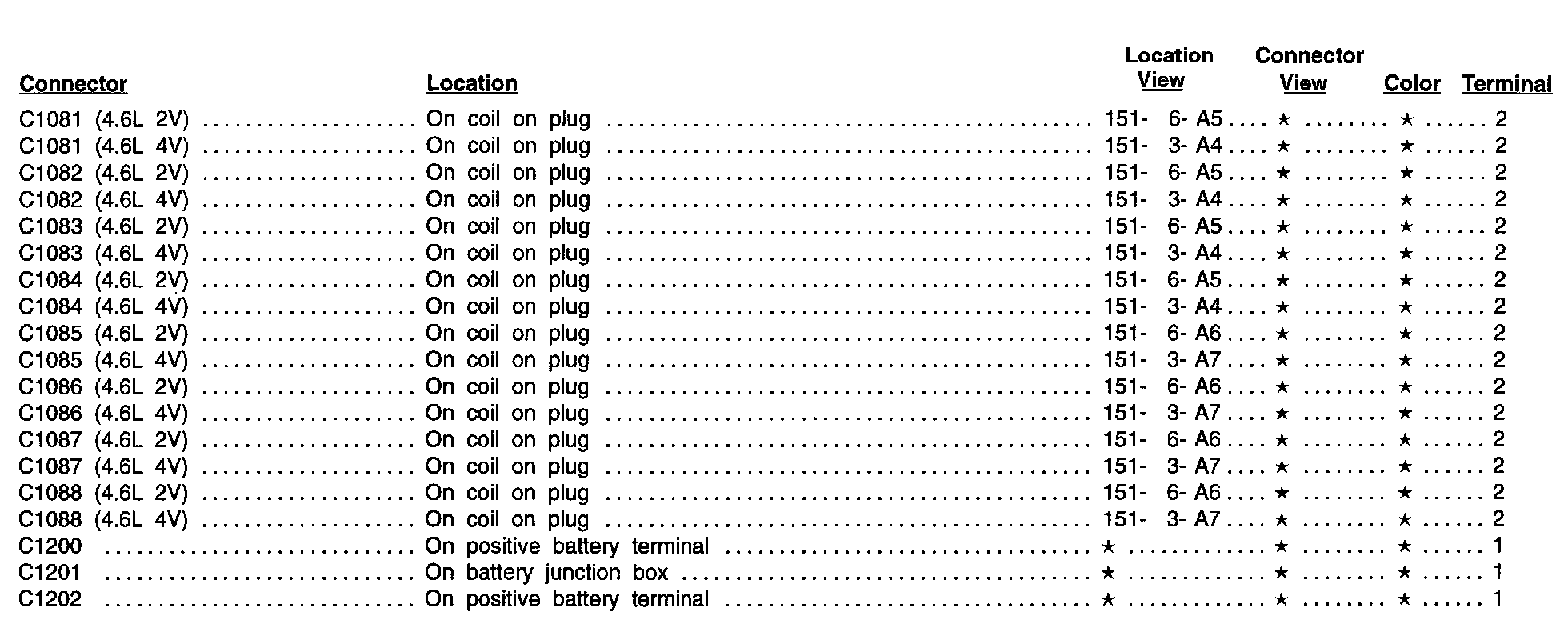

C1081-C1202:
