Traction Control Module: Service and Repair

Removal

1. Remove the hydraulic control unit (HCU).

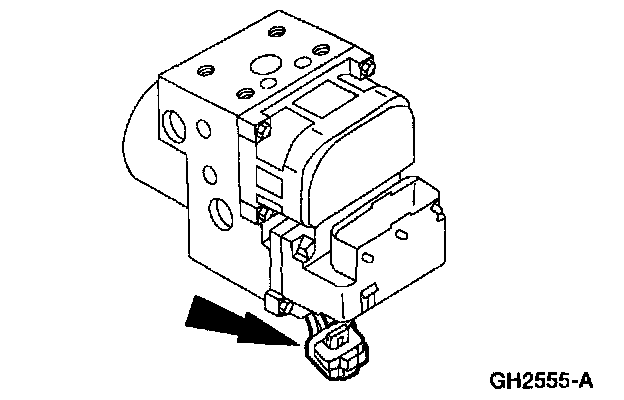

2. Remove the pump motor electrical connector.

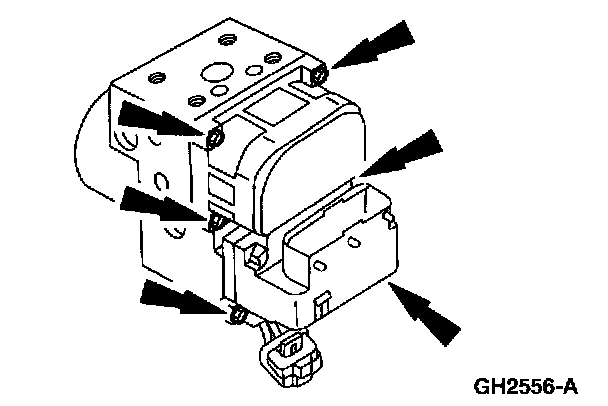

3. Remove the anti-lock-brake control module screws.
4. Remove the anti-lock-brake control module from the HCU.

Installation

1. Note: The brake system must be bled after the HCU is installed or replaced.

To install, reverse the removal procedure.
