Power Window Switch: Service and Repair

REMOVAL

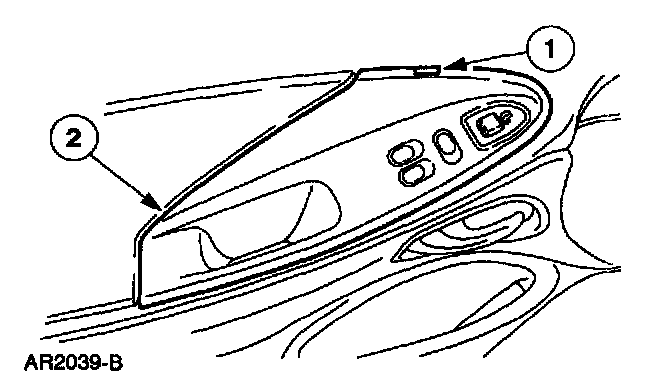

1. Position the window regulator switch plate aside.
1 Pull at the service notch.
2 Lift to release the clip at the rear edge.

CAUTION: Use a shop towel or similar material between the tool and the door trim panel or damage to the door trim panel may occur.

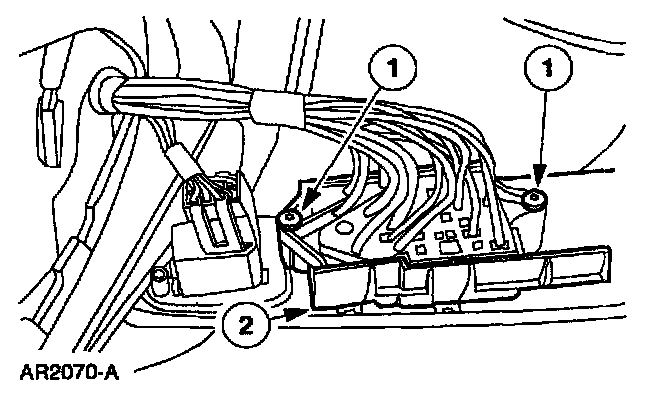

2. Remove the window regulator control switch.
1 Remove the screws.
2 Disconnect the connector.

INSTALLATION
1. To install, reverse the removal procedure.
