Ranger 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Rear Antilock Brake System Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

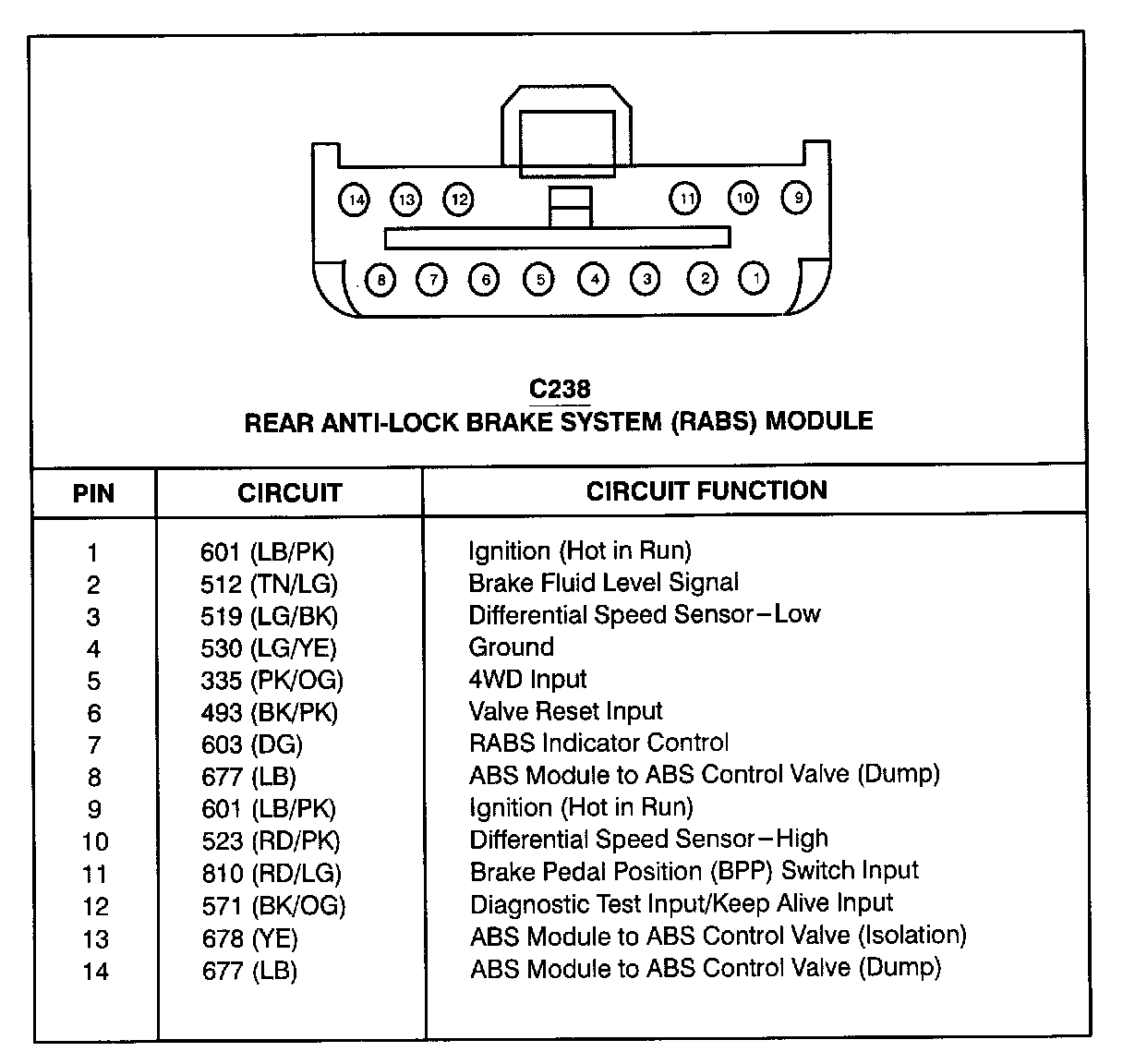

Rear Antilock Brake System Module
