Disc Brake System
1 Of 2:
2 Of 2:

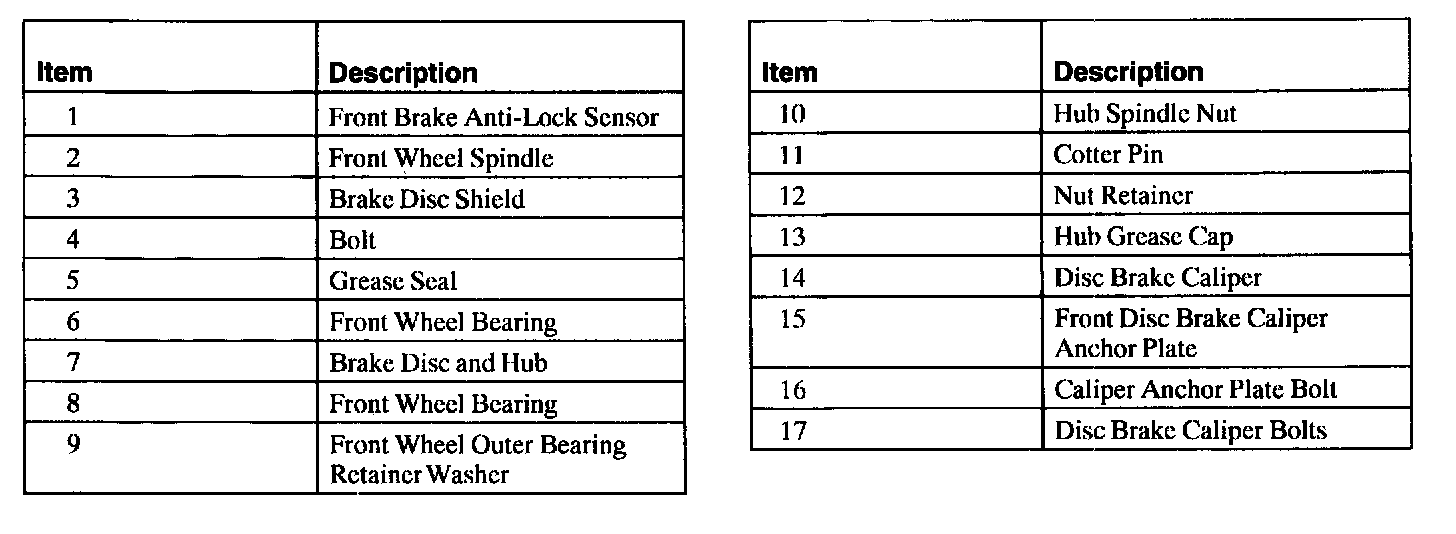

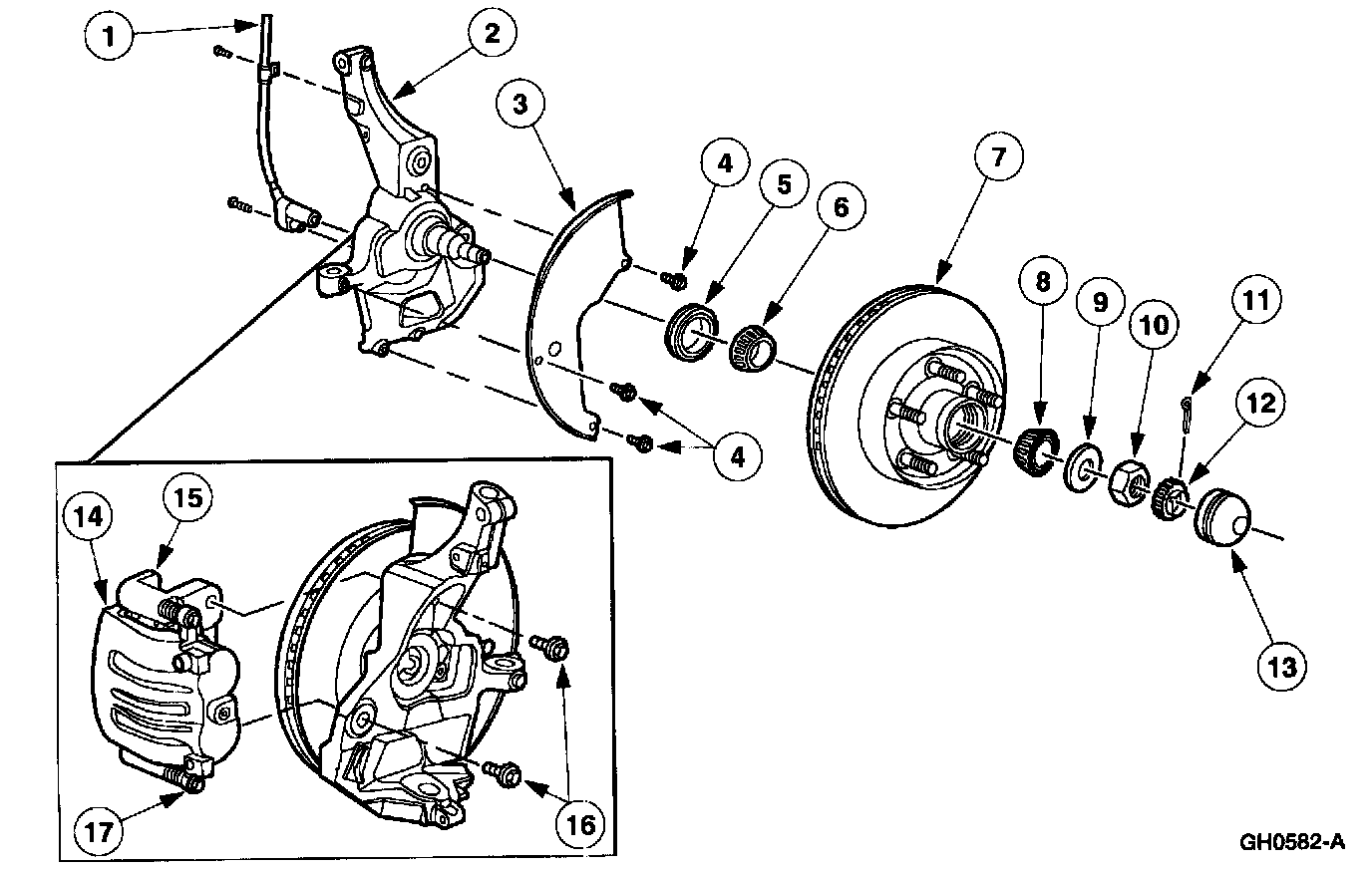

Front Disc Brake Components-4x2
1 Of 2:
2 Of 2:

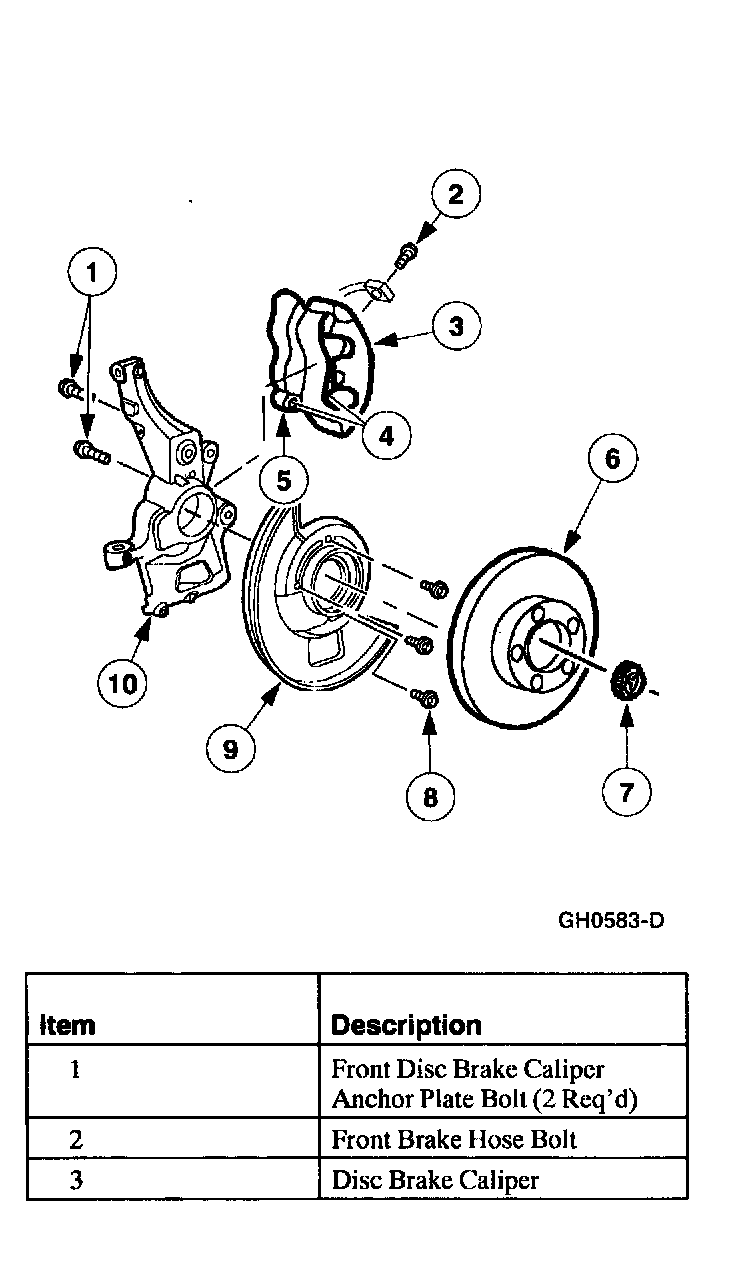

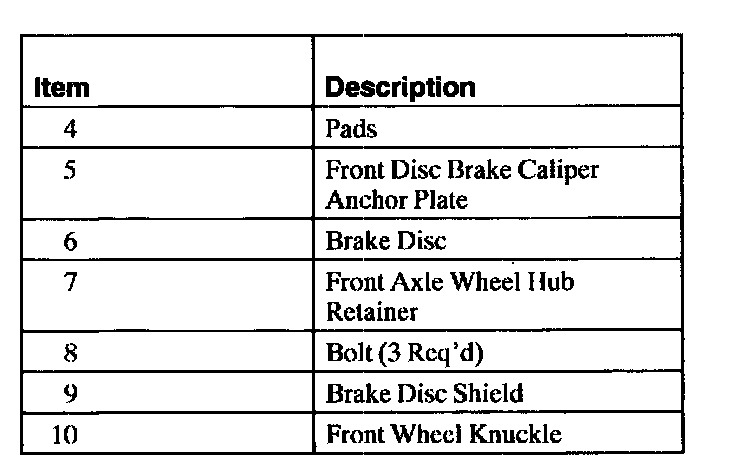

Front Disc Brake Components-4x4
