Front Suspension - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

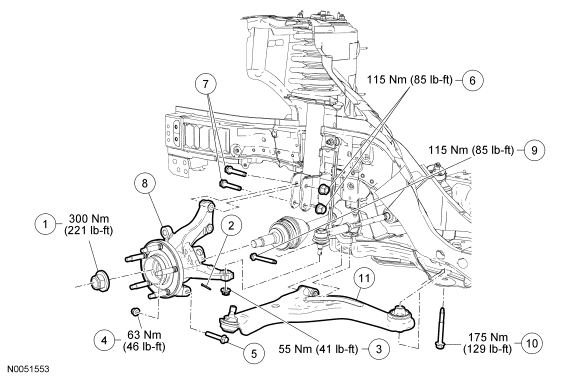

| Item |
Part Number |
Description |
| 1 |
W705967 |
Wheel hub nut |
| 2 |
- |
Cotter pin |
| 3 |
W705833 |
Tie-rod end-to-knuckle nut |
| 4 |
W520213 |
Lower ball joint pinch bolt nut |
| 5 |
W709618 |
Lower ball joint pinch bolt |
| 6 |
W711999 |
Strut-to-knuckle nuts (2 required) |
| 7 |
W711998 |
Strut-to-knuckle bolts (2 required) |
| 8 |
3K171 LH/ 3K170 RH |
Wheel knuckle |
| 9 |
W500749 |
Front lower arm bolt |
| 10 |
W712807 |
Rear lower arm bolt |
| 11 |
3A424 LH/ 3A423 RH |
Lower arm |
Courtesy of FORD MOTOR CO.

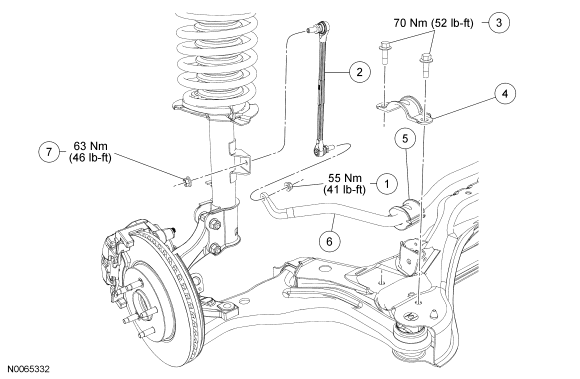

| Item |
Part Number |
Description |
| 1 |
W708990 |
Lower stabilizer bar link nut |
| 2 |
5K483 |
Stabilizer bar link |
| 3 |
W506441 |
Stabilizer bar bushing bracket bolts (2 required) |
| 4 |
5486 |
Stabilizer bar bushing bracket |
| 5 |
5493A |
Stabilizer bar bushing |
| 6 |
5482 |
Stabilizer bar |
| 7 |
W708990 |
Upper stabilizer bar link nut |
- For additional information, refer to the procedures in this article.
