Parking Aid Module: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

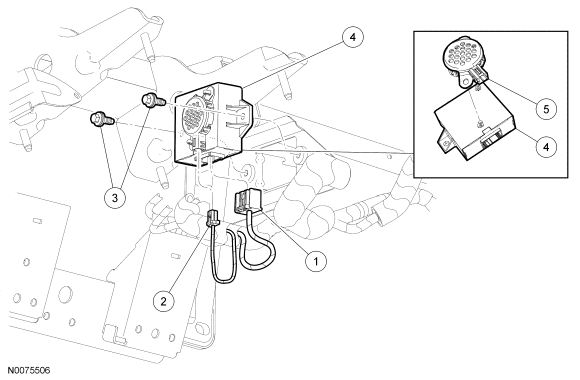

| Item |
Part Number |
Description |
| 1 |
- |
Parking aid module (PAM) electrical connector (part of 14401) |
| 2 |
- |
Parking aid speaker electrical connector (part of 14401) |
| 3 |
W503273 |
Bolt and washer assemblies (2 required) |
| 4 |
15T850 |
PAM |
| 5 |
15A866 |
Parking aid speaker |
