Pinpoint Test I: The Traction Control Cannot Be Disabled

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

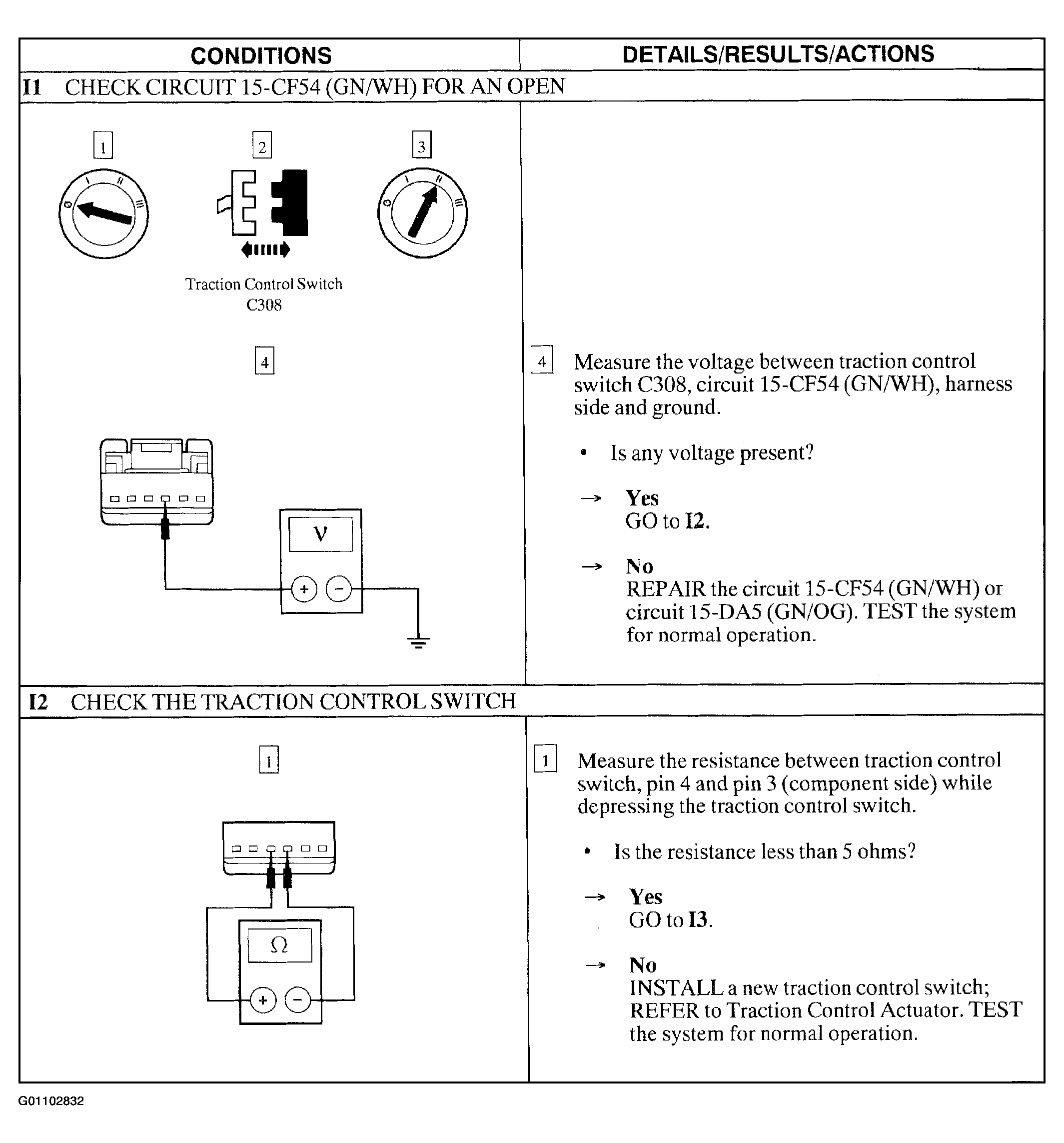

Fig 1: Pinpoint Test I (Steps I1 & I2)

Courtesy of FORD MOTOR CO.

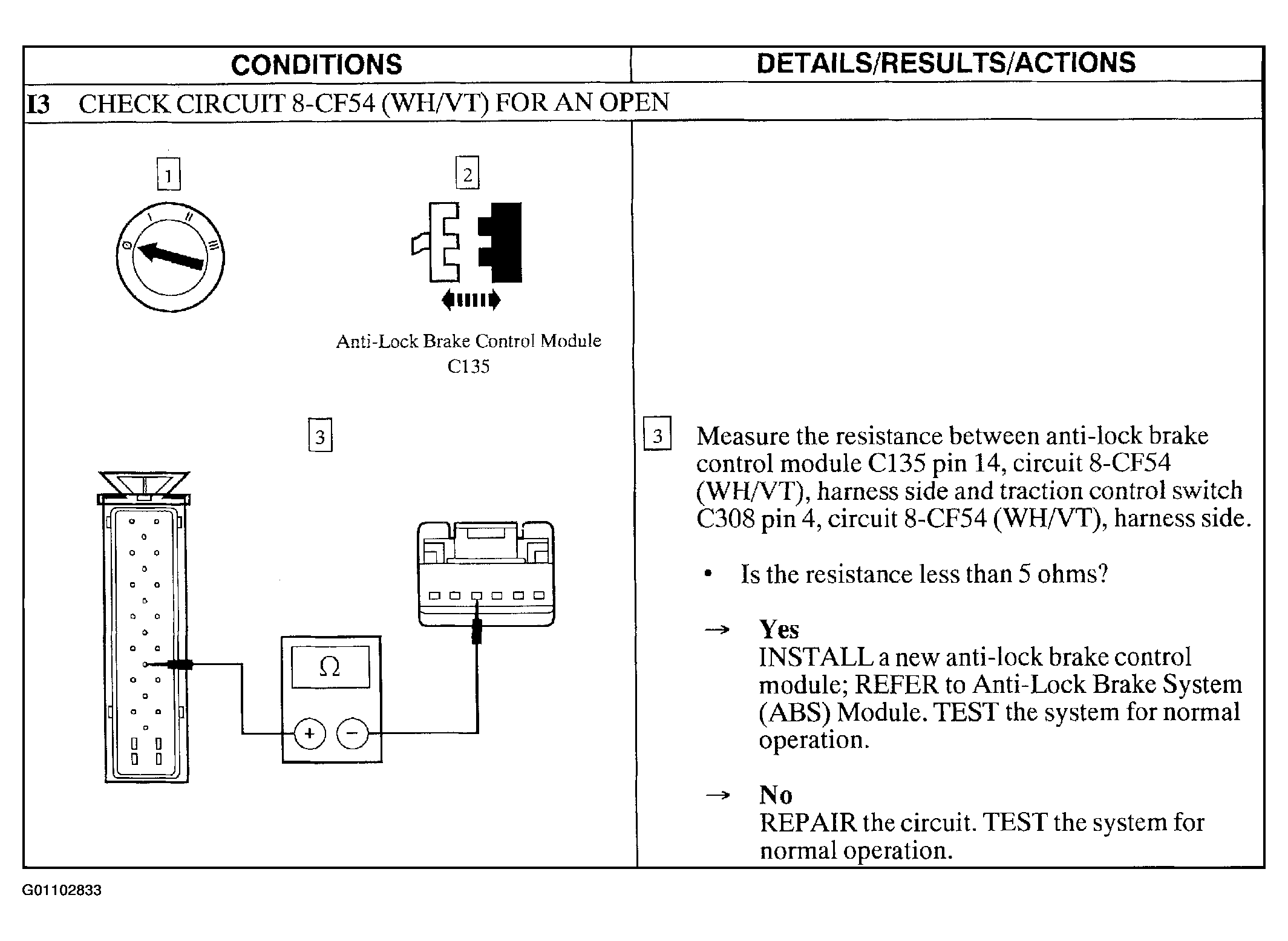

Fig 2: Pinpoint Test I (Step I3)

Courtesy of FORD MOTOR CO.
