Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Position the inner splash shield aside.
1. Remove the pin-type retainers.
2. Position the inner splash shield aside.

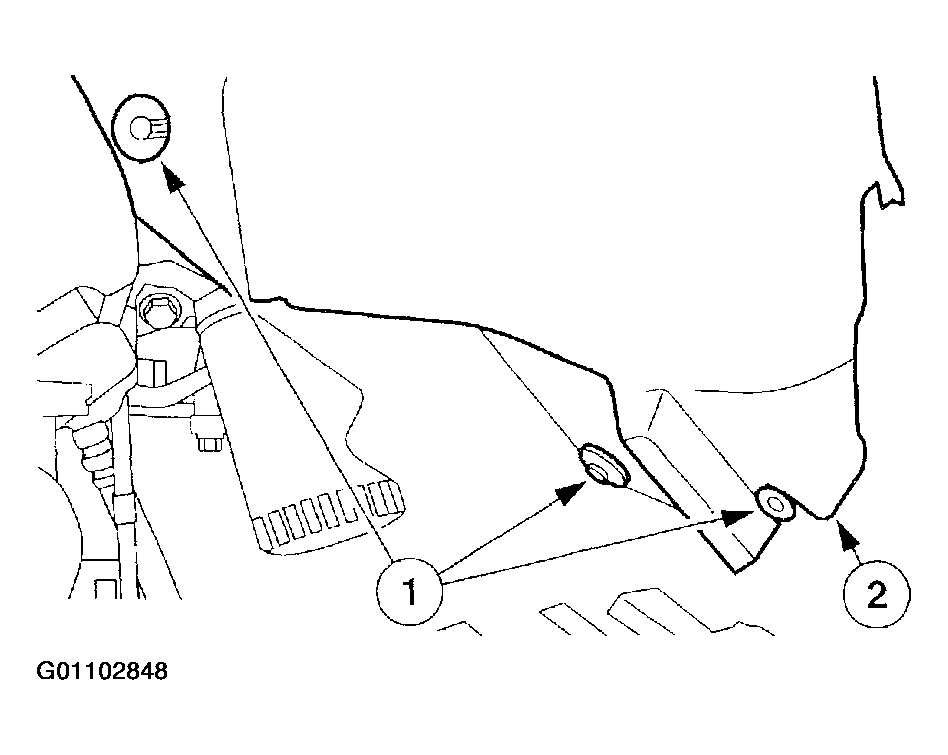

  Fig 1: Positioning Inner Splash Shield Aside
  Courtesy of FORD MOTOR CO.
Disconnect the anti-lock brake sensor electrical connector.

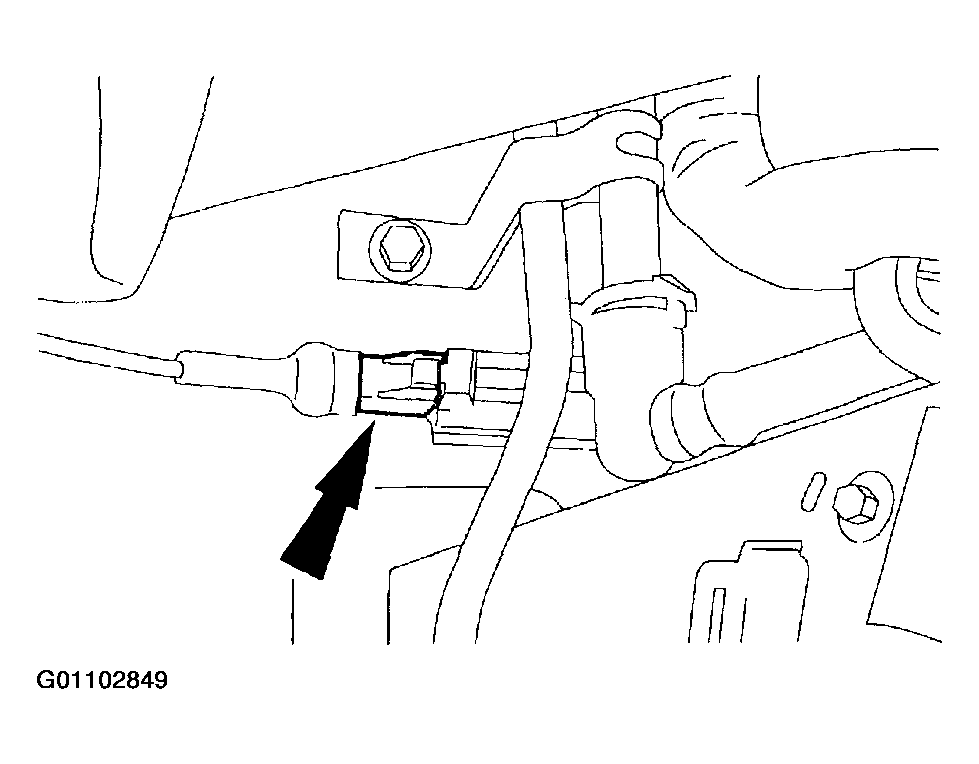

Fig 2: Disconnecting Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor harness from the brake hose clips.

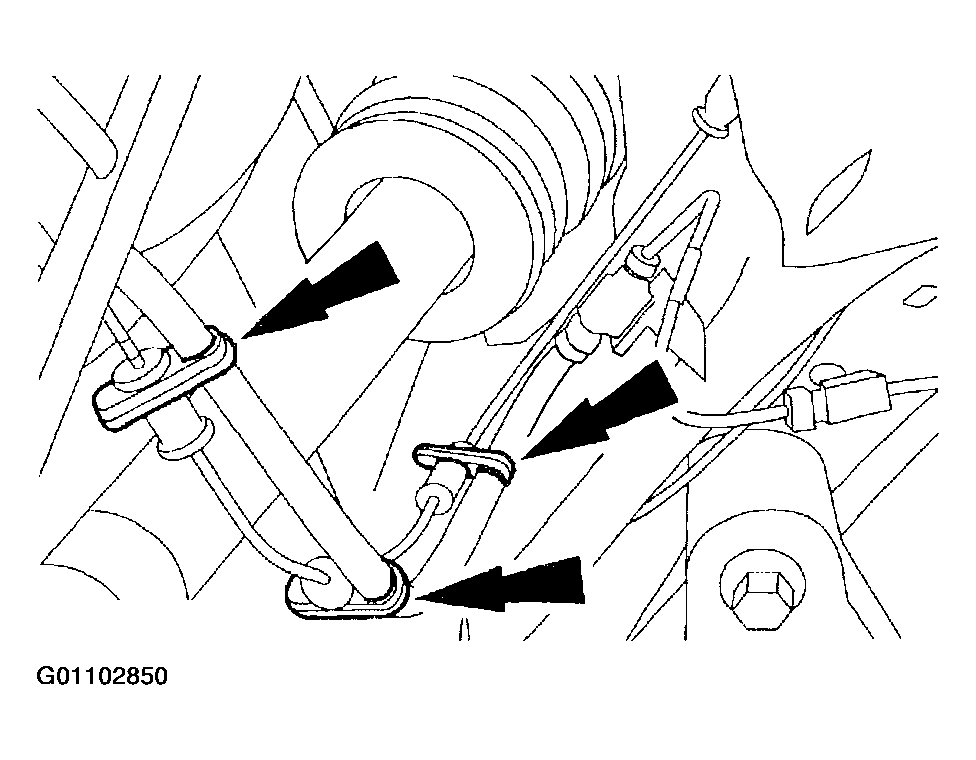

Fig 3: Removing Anti-Lock Brake Sensor Harness
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor.
1. Remove the anti-lock brake sensor clip.
2. Remove the anti-lock brake sensor.

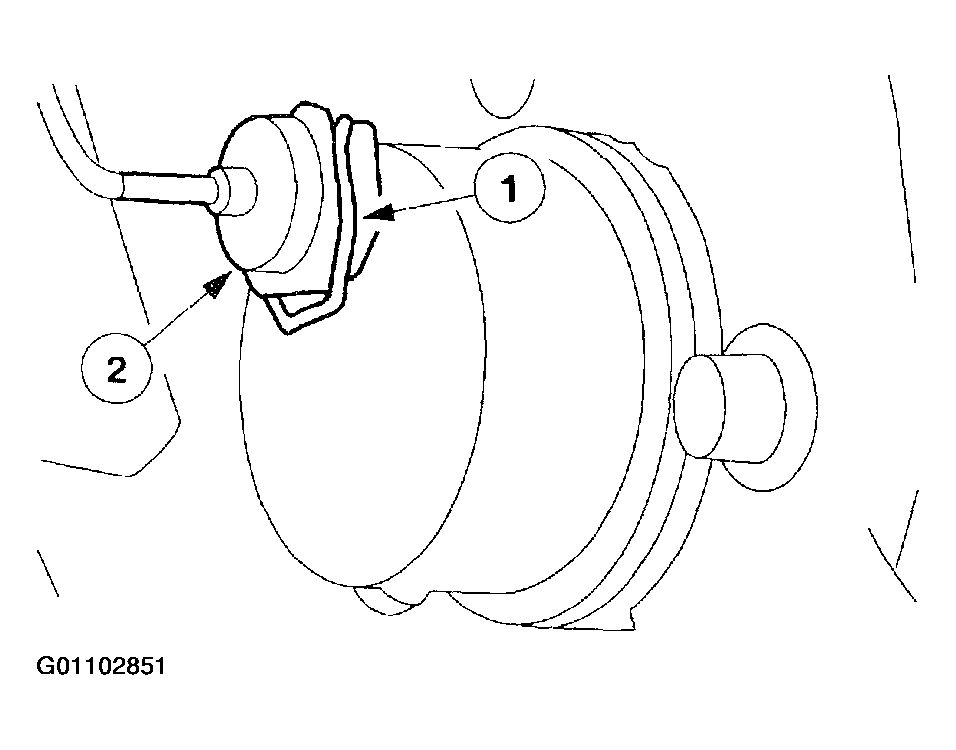

  Fig 4: Removing Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the anti-lock brake sensor is fully seated before installation of the new clip.

To install, reverse the removal procedure.
- Apply a 2.5 mm (0.1 in) bead of silicone sealant to the outside diameter of the anti-lock brake sensor.
