Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: The telematics control module must be reconfigured upon installation. See MODULE CONFIGURATION .

Disconnect the battery ground cable.
Position the LH quarter trim panel aside.
Remove the telematics control module nuts.

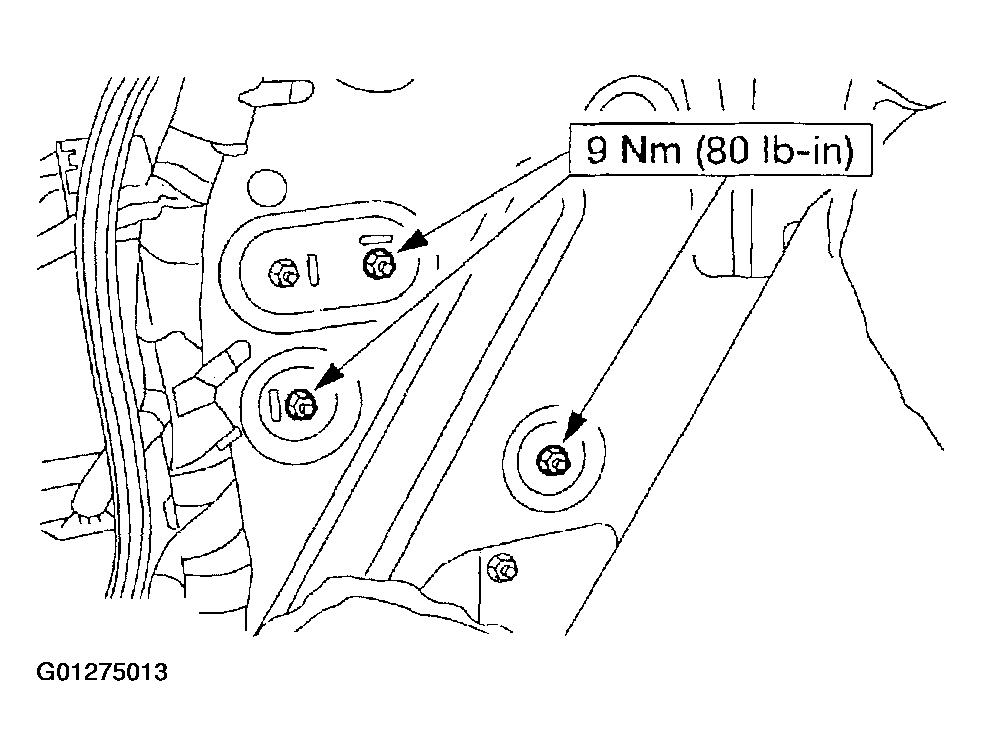

Fig 1: Removing Telematics Control Module Nuts
Courtesy of FORD MOTOR CO.
Remove the telematics control module.
1. Disconnect the antenna.
2. Disconnect the electrical connector.

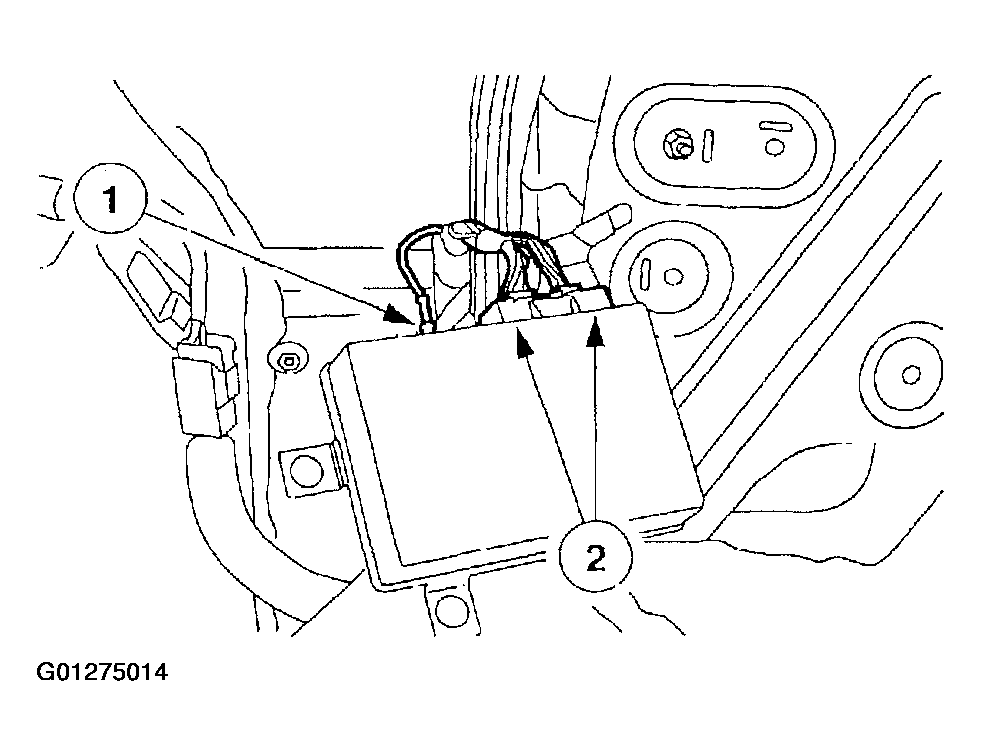

Fig 2: Removing Telematics Control Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
