Heated Seat Module: Installation
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

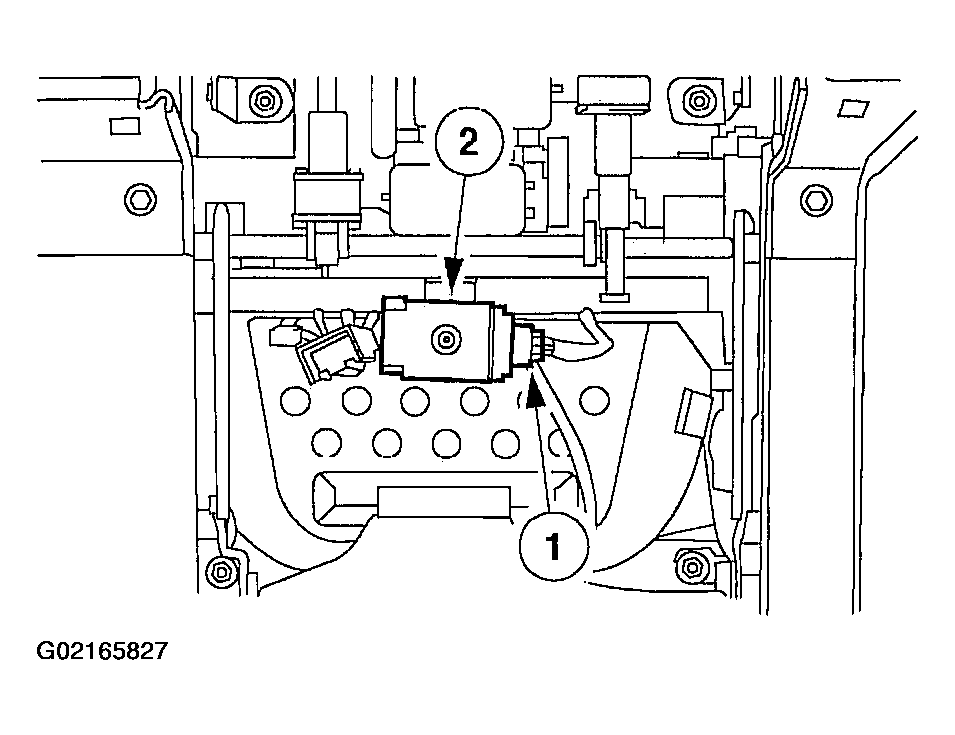

- Install the heated seat module.
- Connect the electrical connector.
- Install the module.
- Restore the vehicle to operating condition.
- Install the affected seat. For additional information, see FRONT SEAT .
- Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
- Check the active restraint system for correct operation.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
