MULTIFUNCTION Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

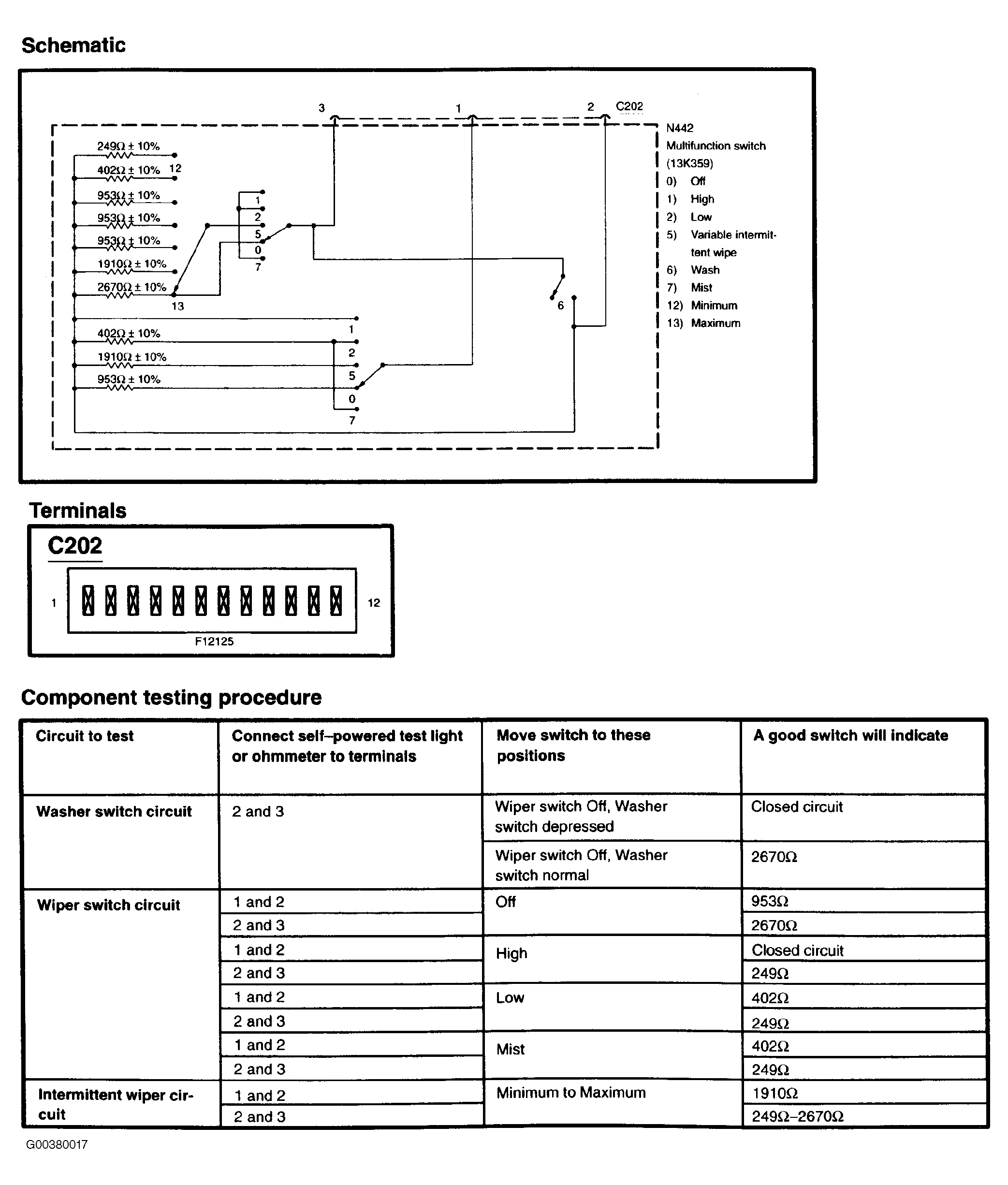

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion

Courtesy of FORD MOTOR CO.

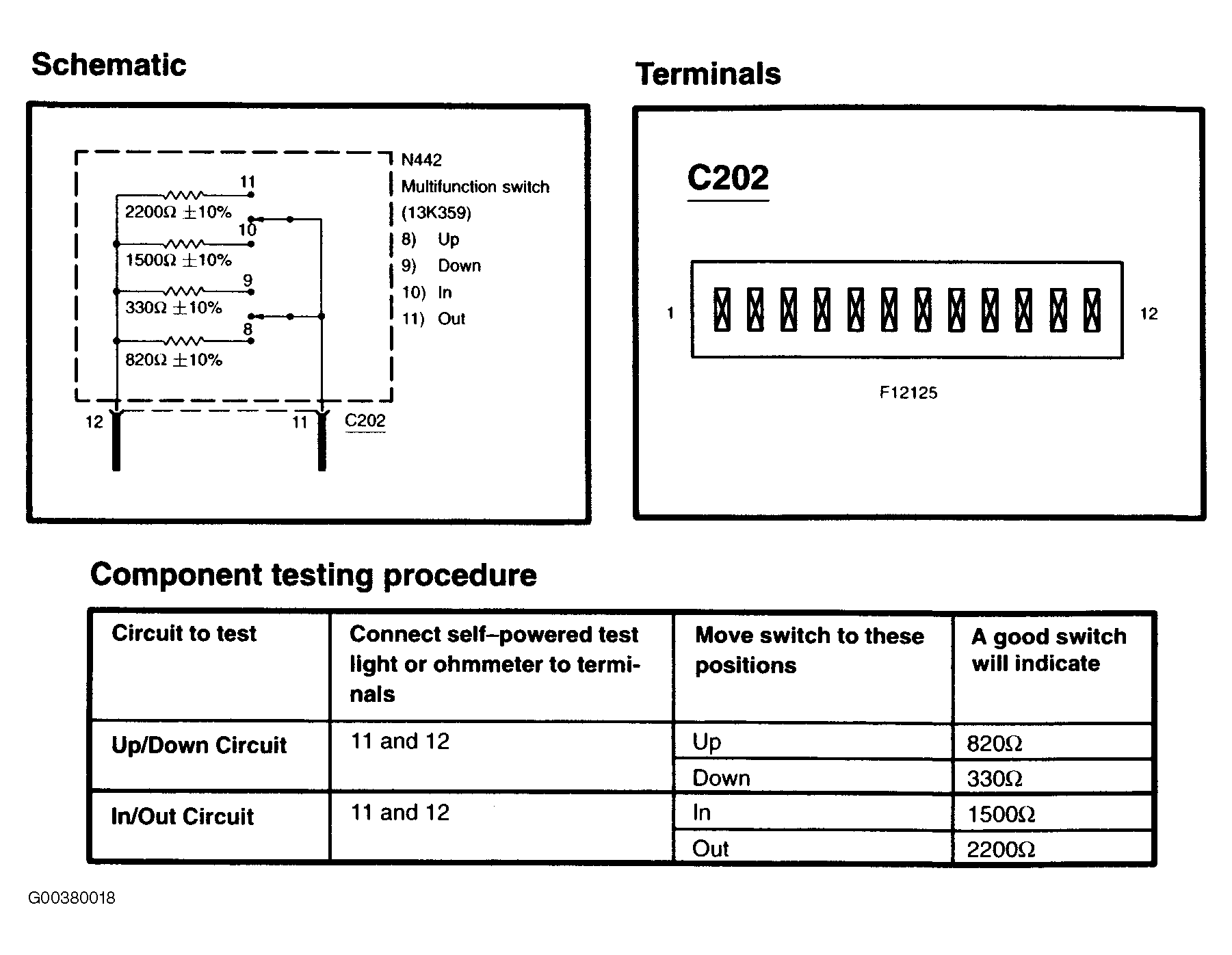

Fig 2: Testing Multifunction Switch - Telescoping Steering Column Control Section

Courtesy of FORD MOTOR CO.

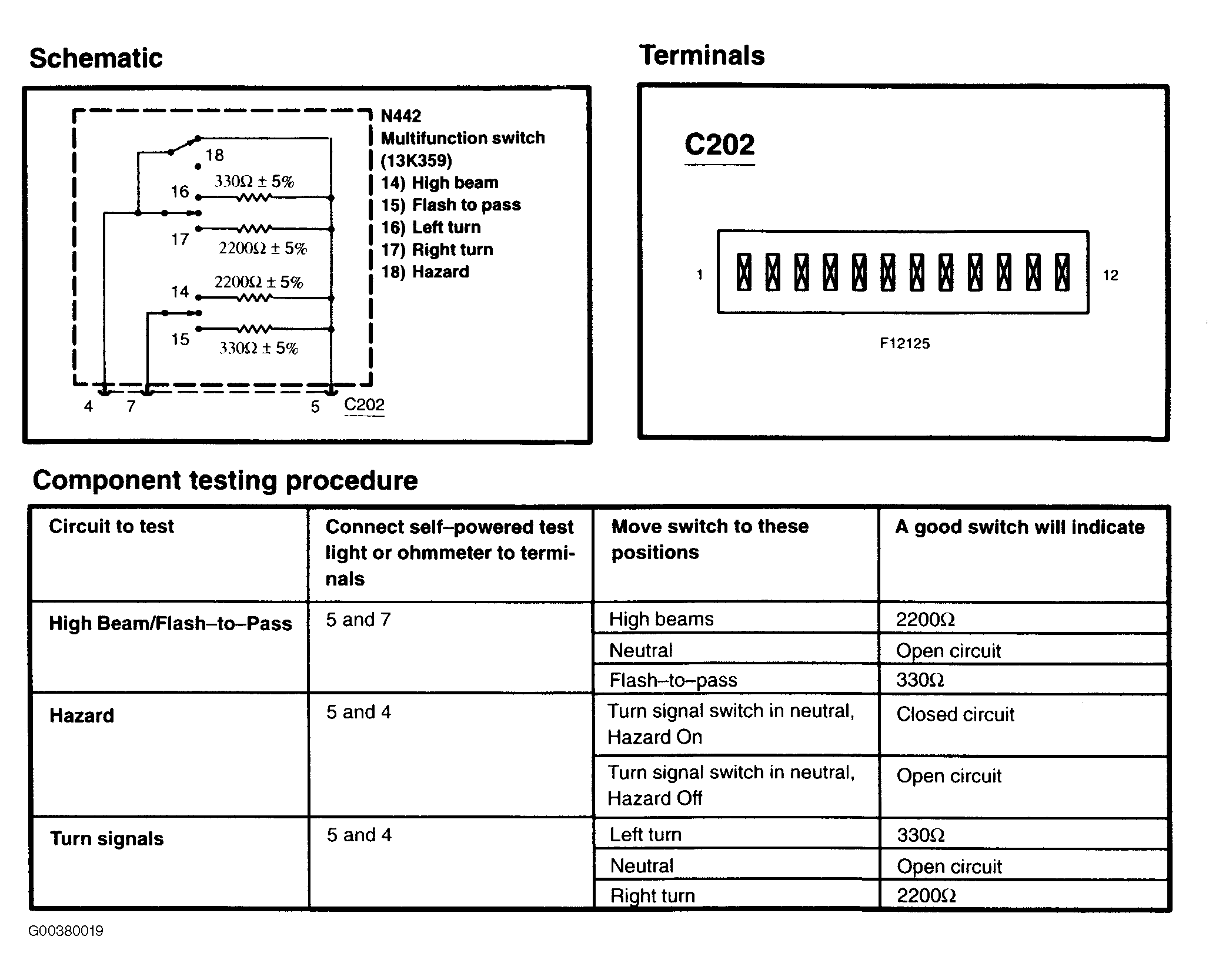

Fig 3: Testing Multifunction Switch - Lamp Portion

Courtesy of FORD MOTOR CO.
