Seat Adjust Switch
WARNING:
This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

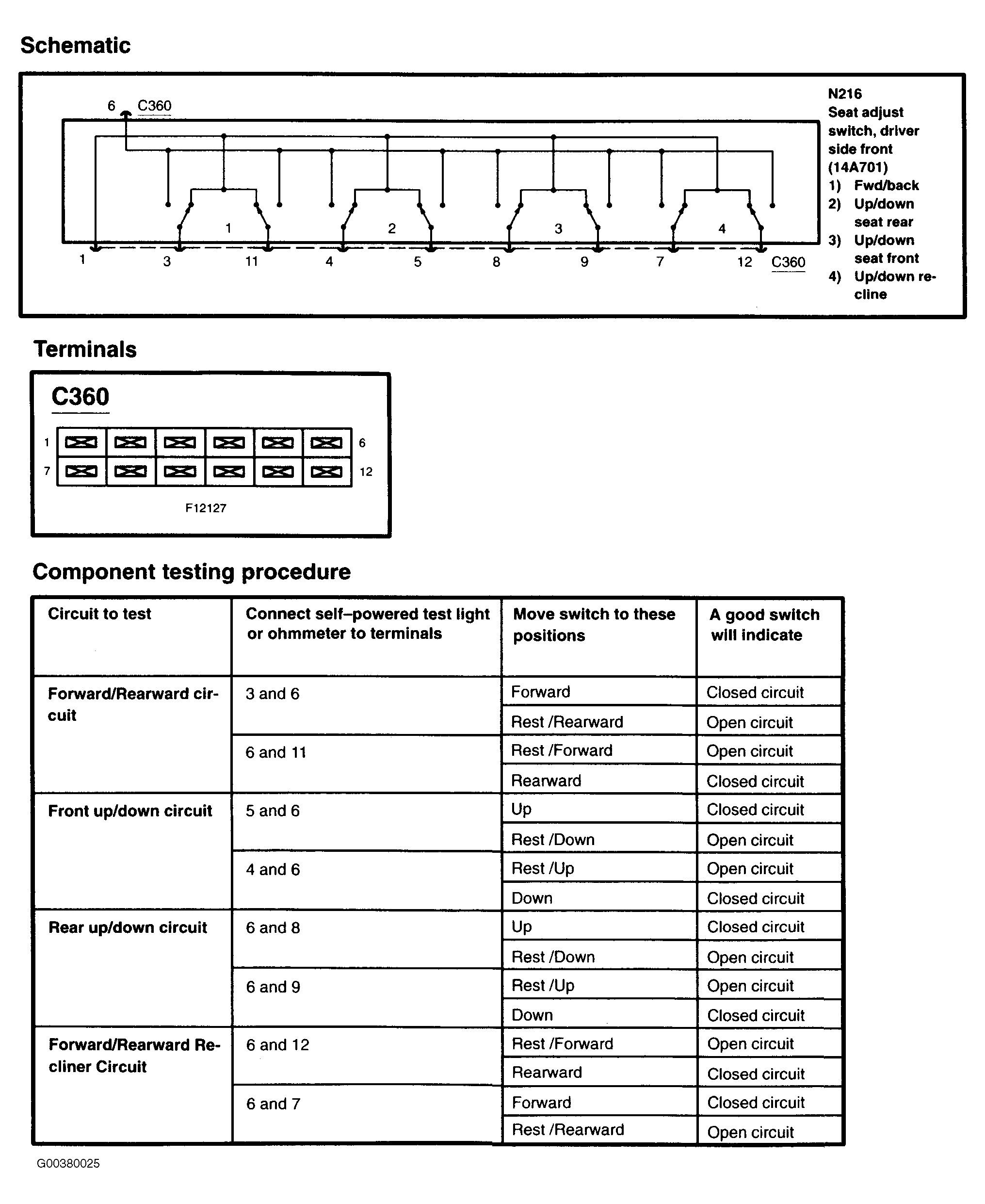

Fig 1: Testing Seat Adjust Switch - Driver Side
Courtesy of FORD MOTOR CO.

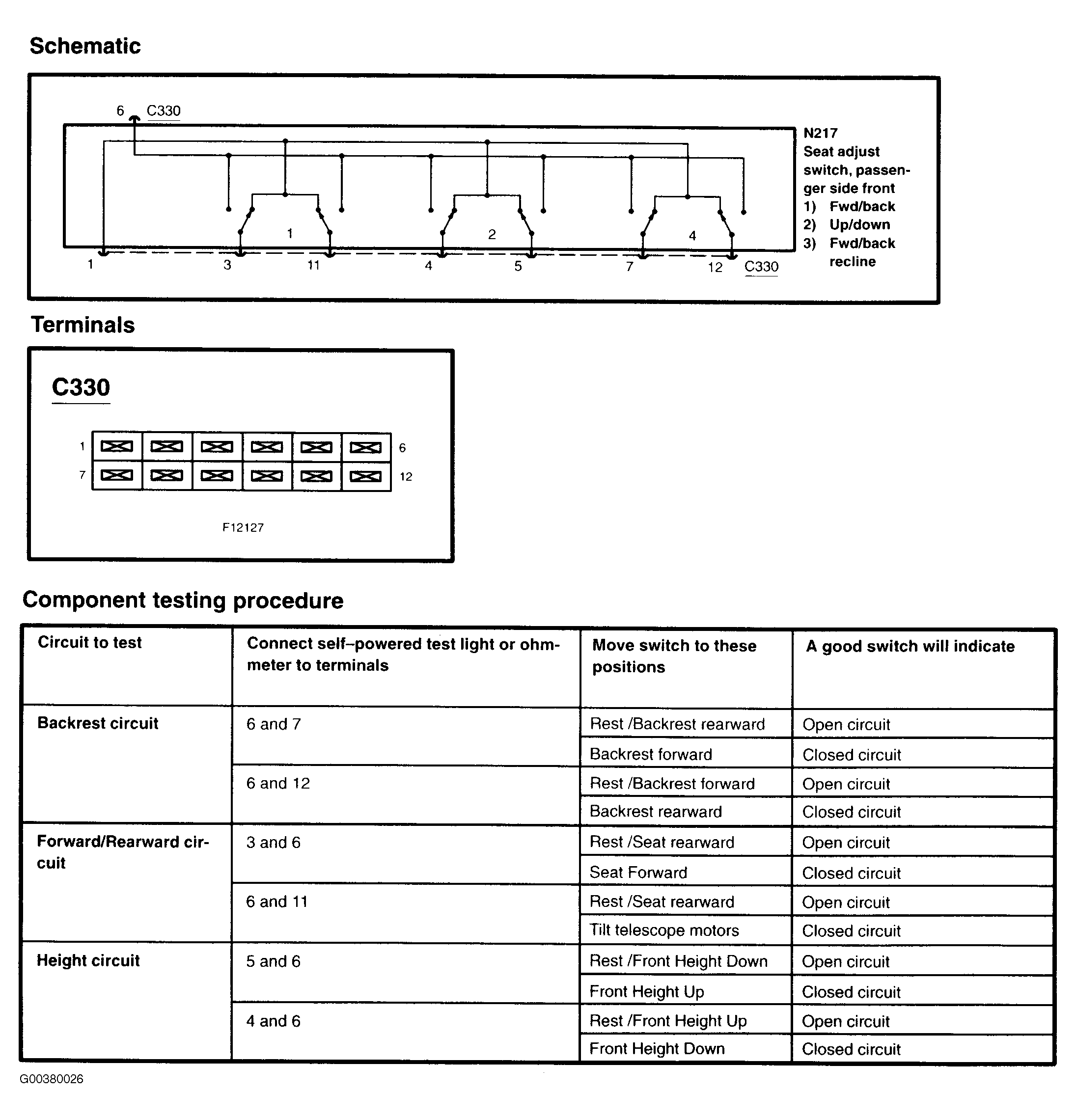

Fig 2: Testing Seat Adjust Switch - Passenger Side
Courtesy of FORD MOTOR CO.
