Pinpoint Test D: The Instrument Cluster Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

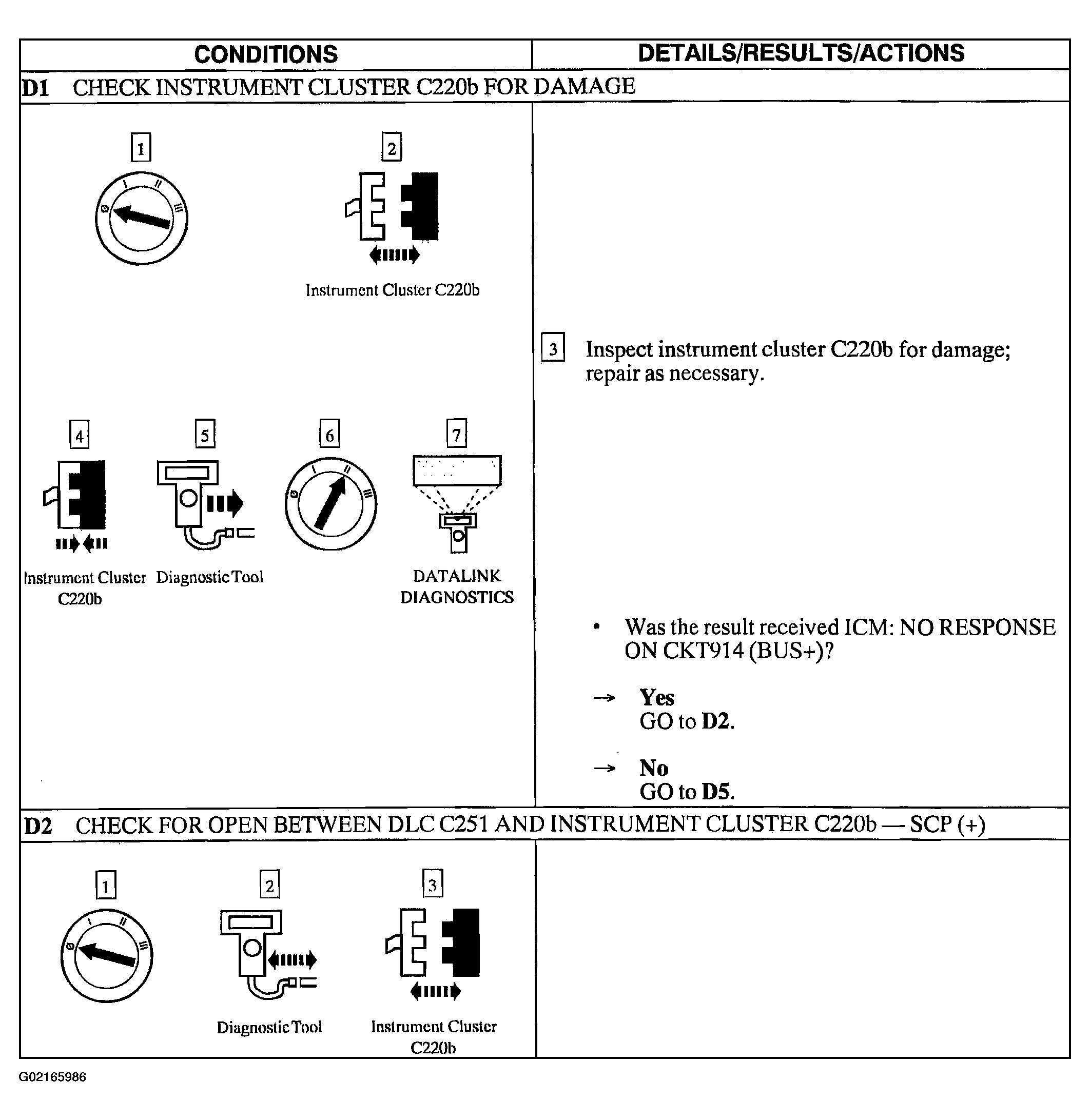

Fig 1: Pinpoint Test D: The Instrument Cluster Module Does Not Respond To The Diagnostic Tool (Steps D1 & D2)
G02165986Courtesy of FORD MOTOR CO.

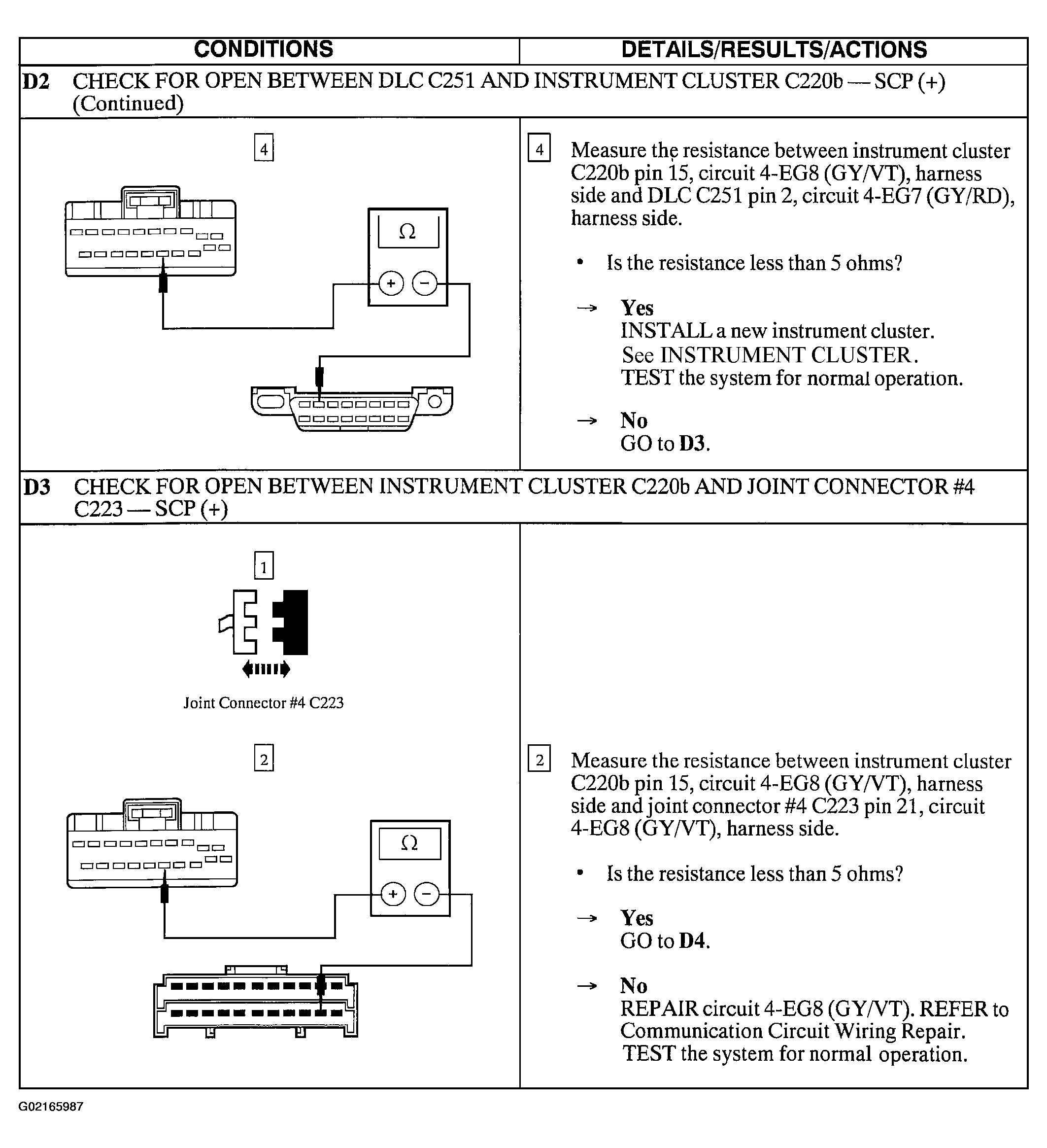

Fig 2: Pinpoint Test D: The Instrument Cluster Module Does Not Respond To The Diagnostic Tool (Steps D2 Cont. & D3)
G02165987Courtesy of FORD MOTOR CO.

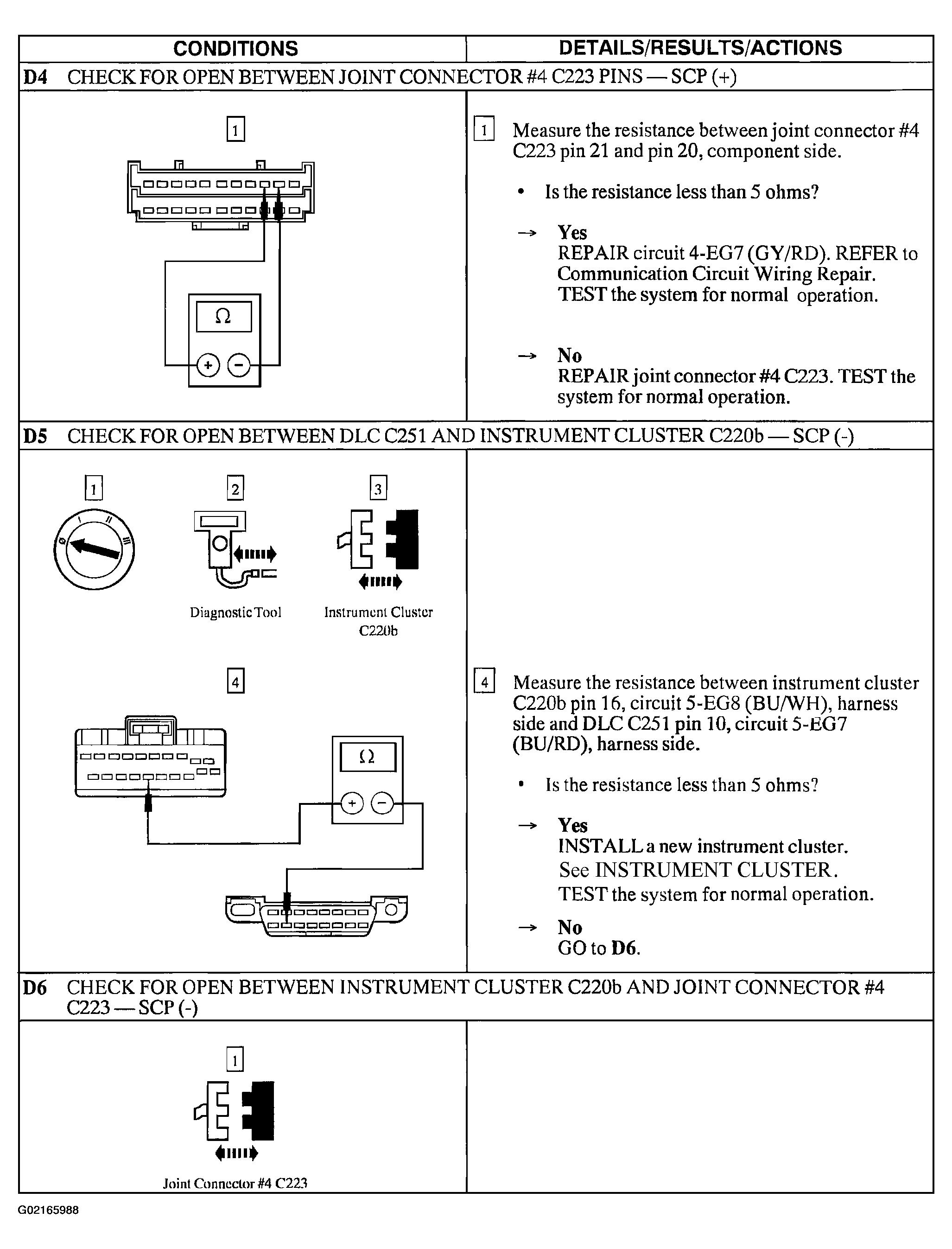

Fig 3: Pinpoint Test D: The Instrument Cluster Module Does Not Respond To The Diagnostic Tool (Steps D4 To D6)
G02165988Courtesy of FORD MOTOR CO.

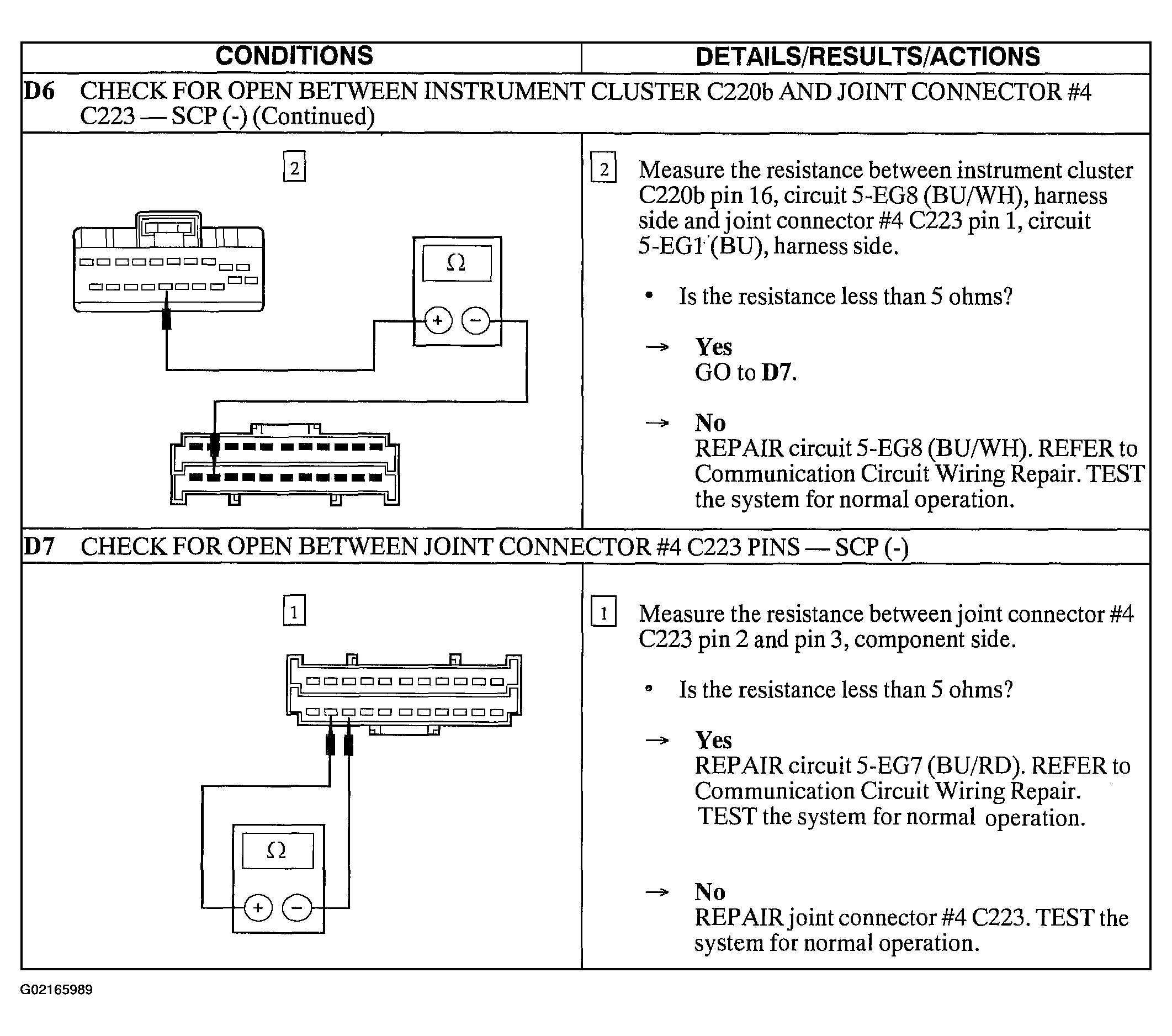

Fig 4: Pinpoint Test D: The Instrument Cluster Module Does Not Respond To The Diagnostic Tool (Steps D6 Cont. & D7)
G02165989Courtesy of FORD MOTOR CO.
