Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

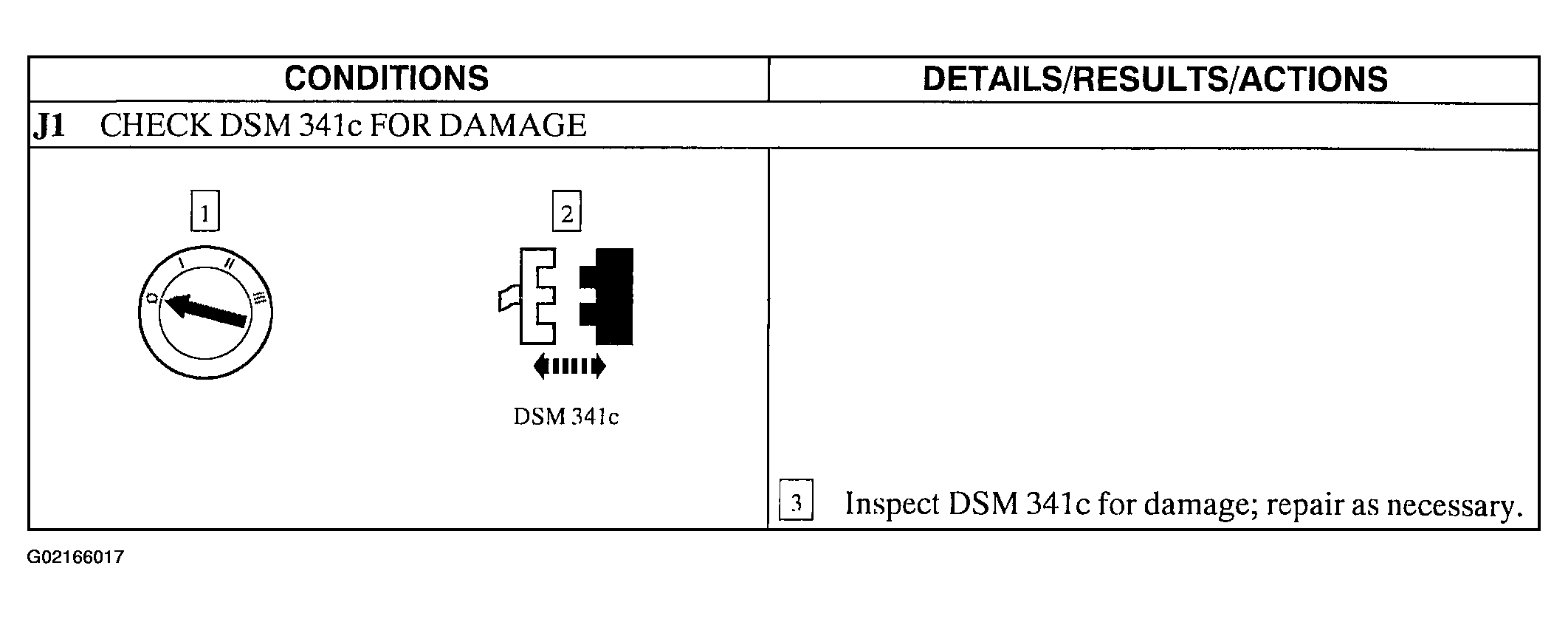

Fig 1: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Step J1)

Courtesy of FORD MOTOR CO.

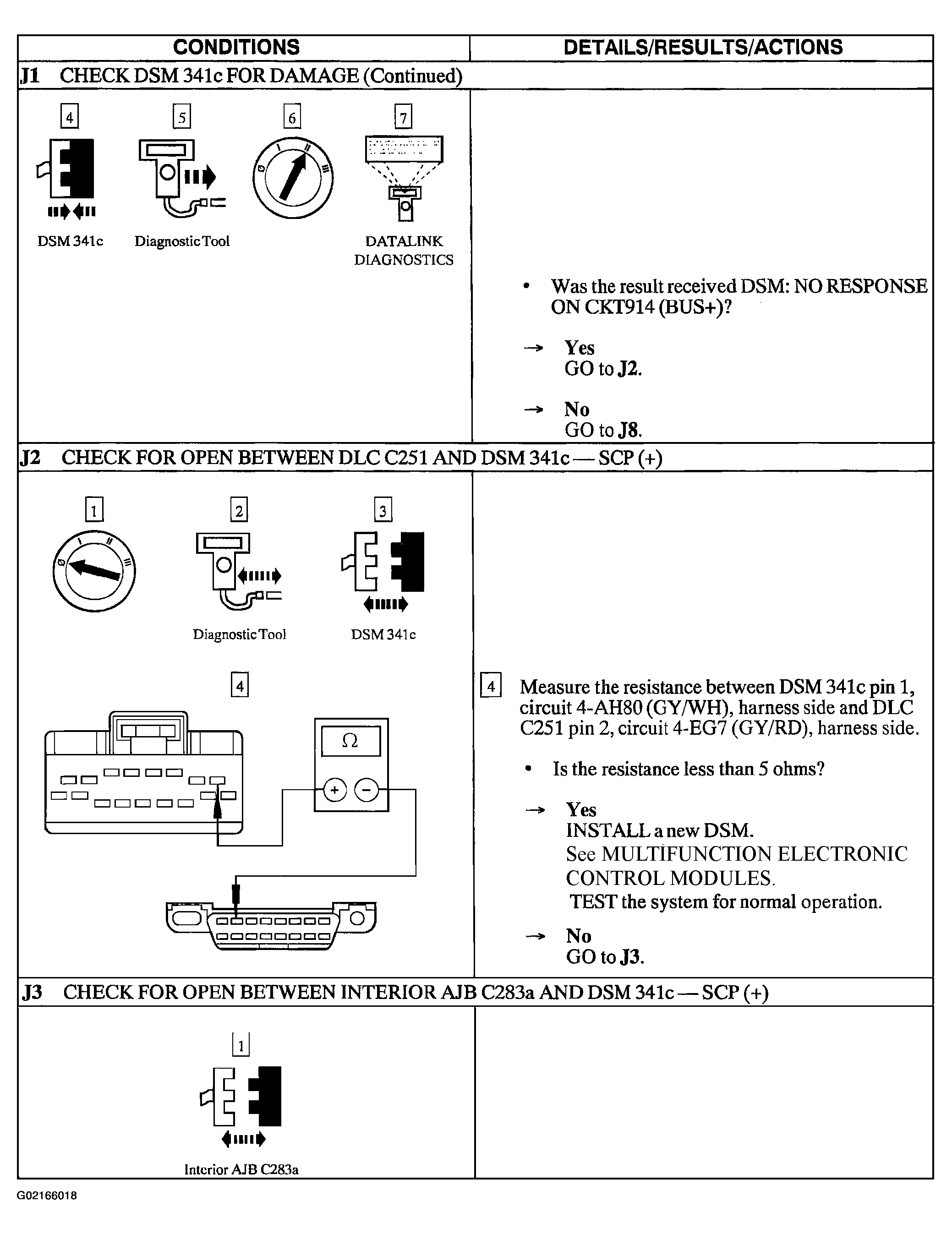

Fig 2: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J1 Cont. To J3)

Courtesy of FORD MOTOR CO.

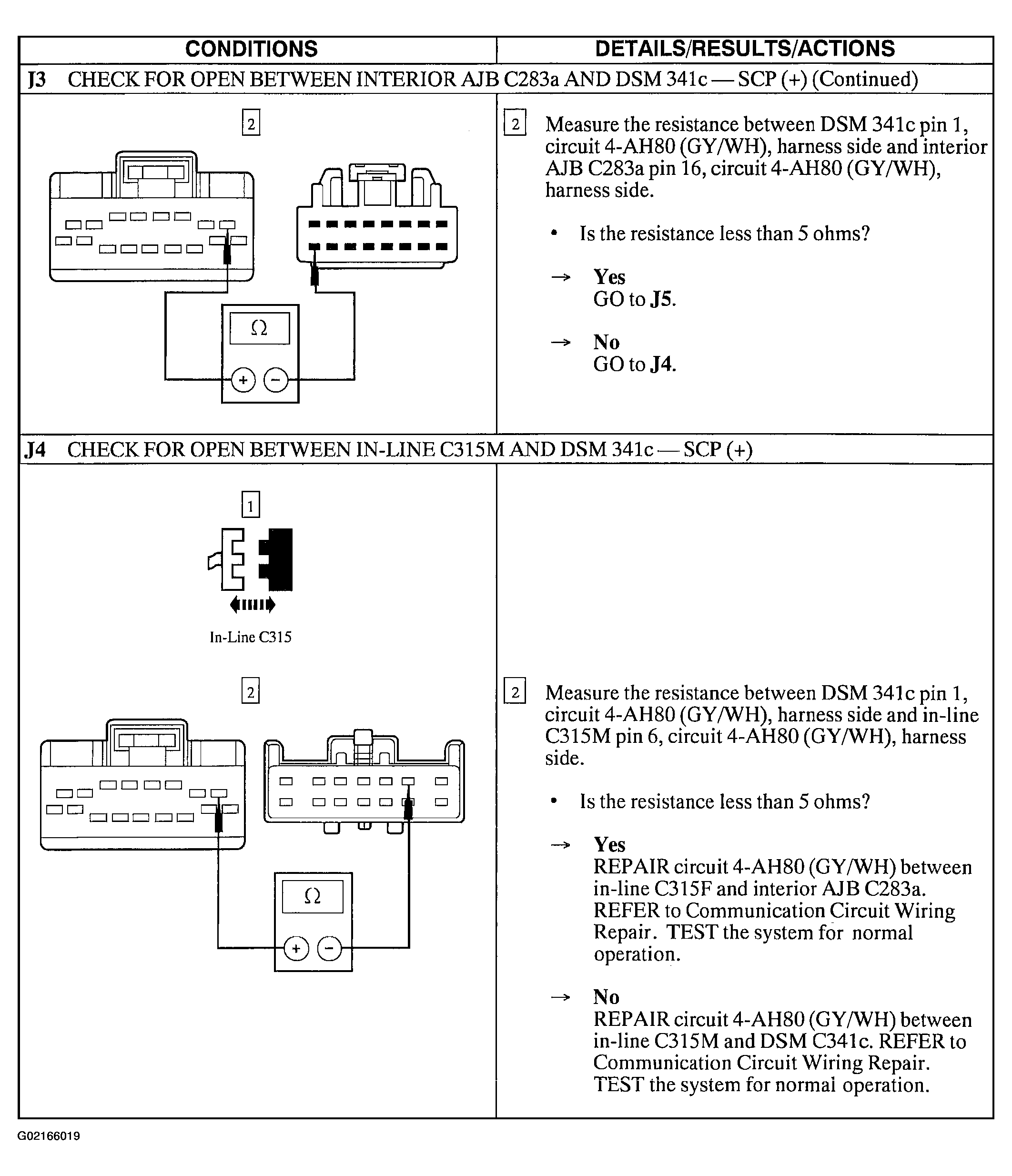

Fig 3: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J3 Cont. & J4)

Courtesy of FORD MOTOR CO.

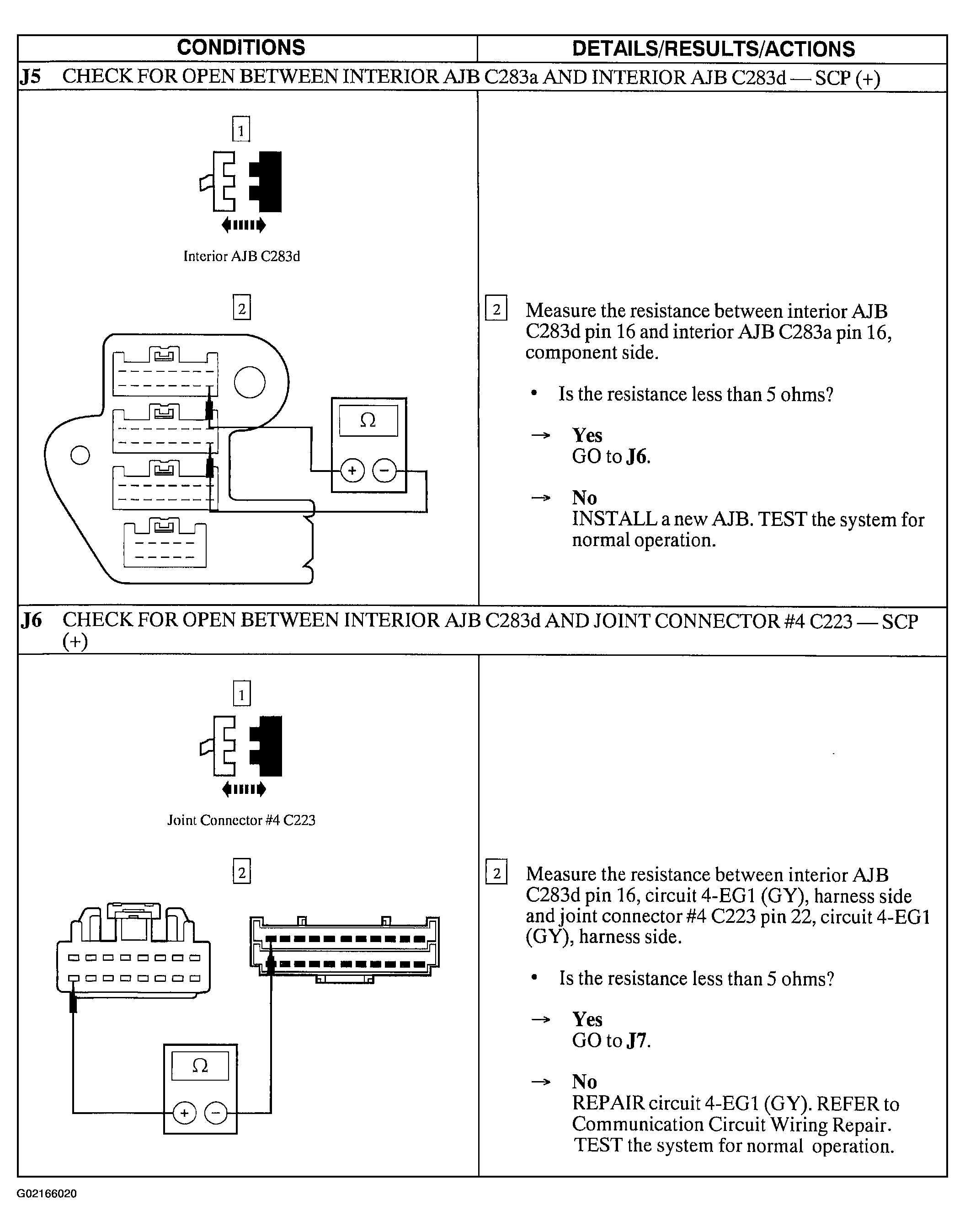

Fig 4: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J5 & J6)

Courtesy of FORD MOTOR CO.

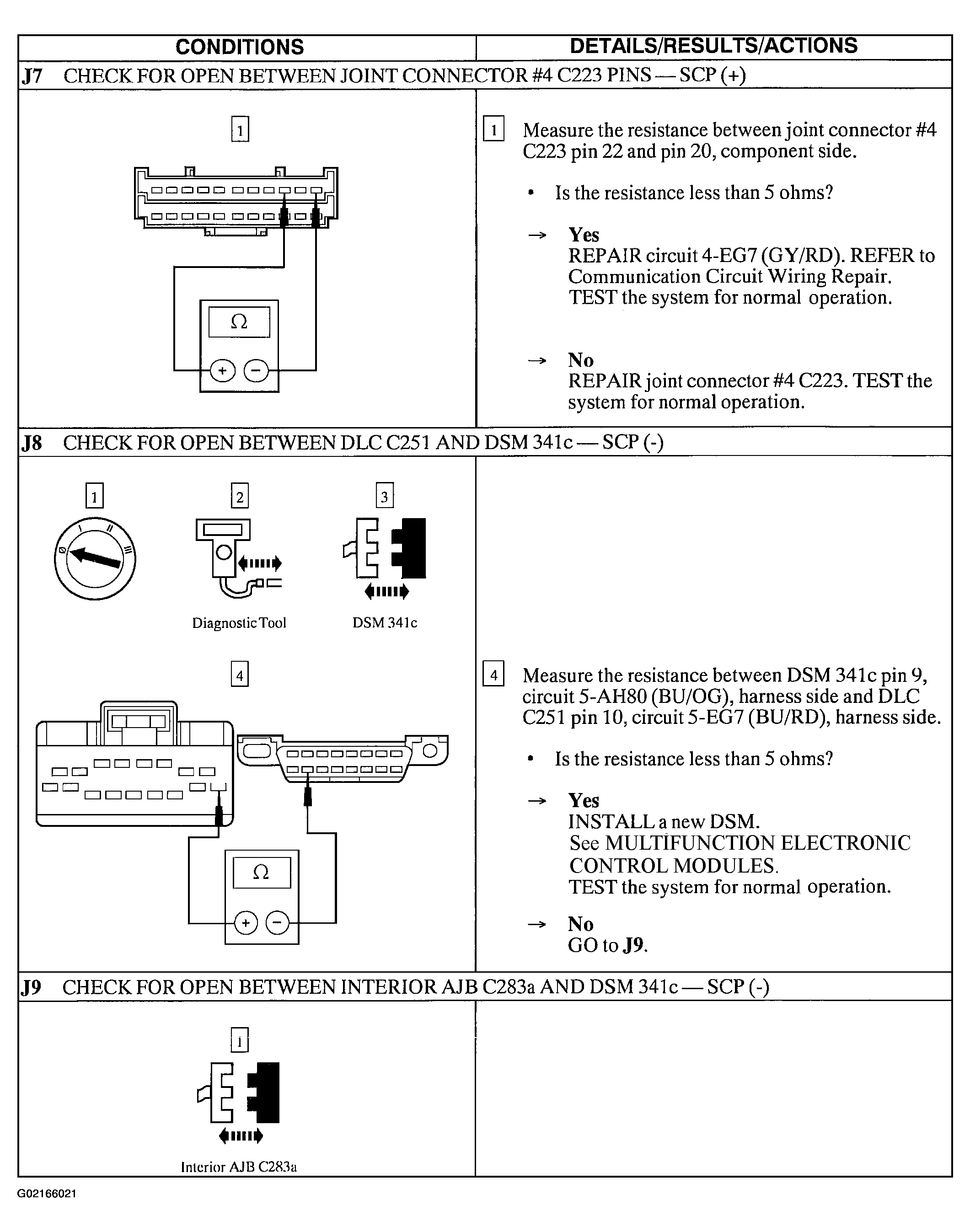

Fig 5: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J7 To J9)

Courtesy of FORD MOTOR CO.

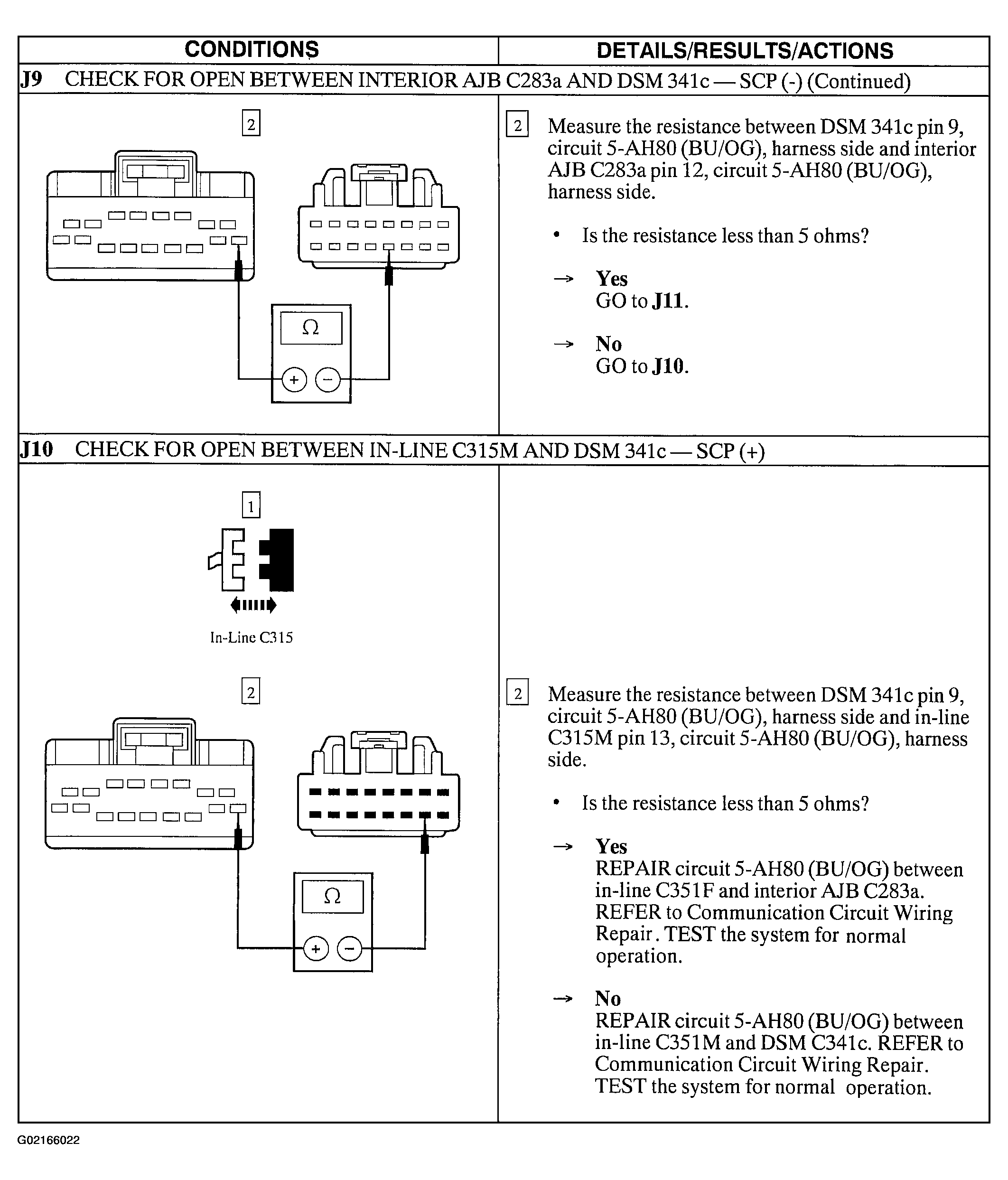

Fig 6: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J9 Cont. & J10)

Courtesy of FORD MOTOR CO.

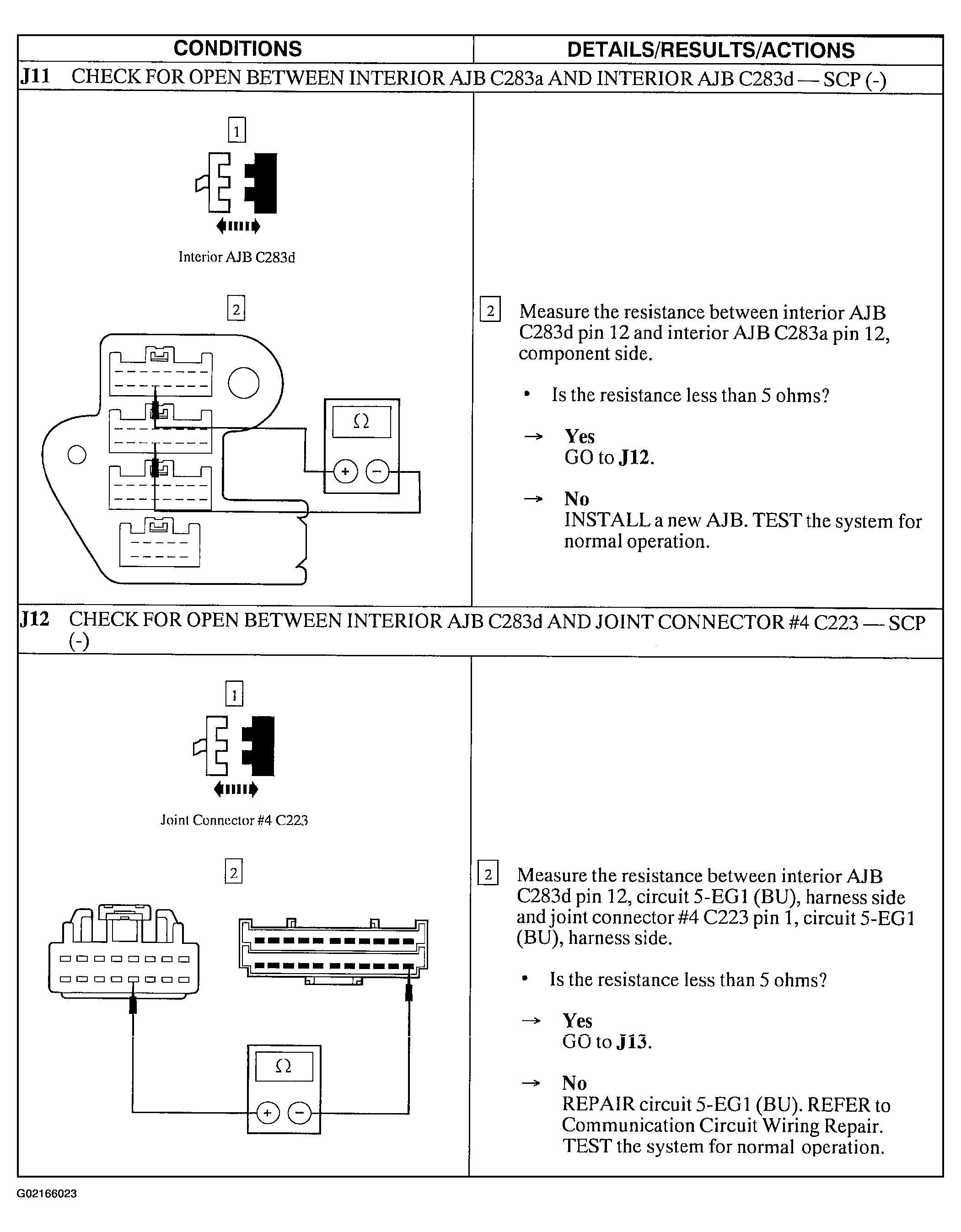

Fig 7: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Steps J11 & J12)

Courtesy of FORD MOTOR CO.

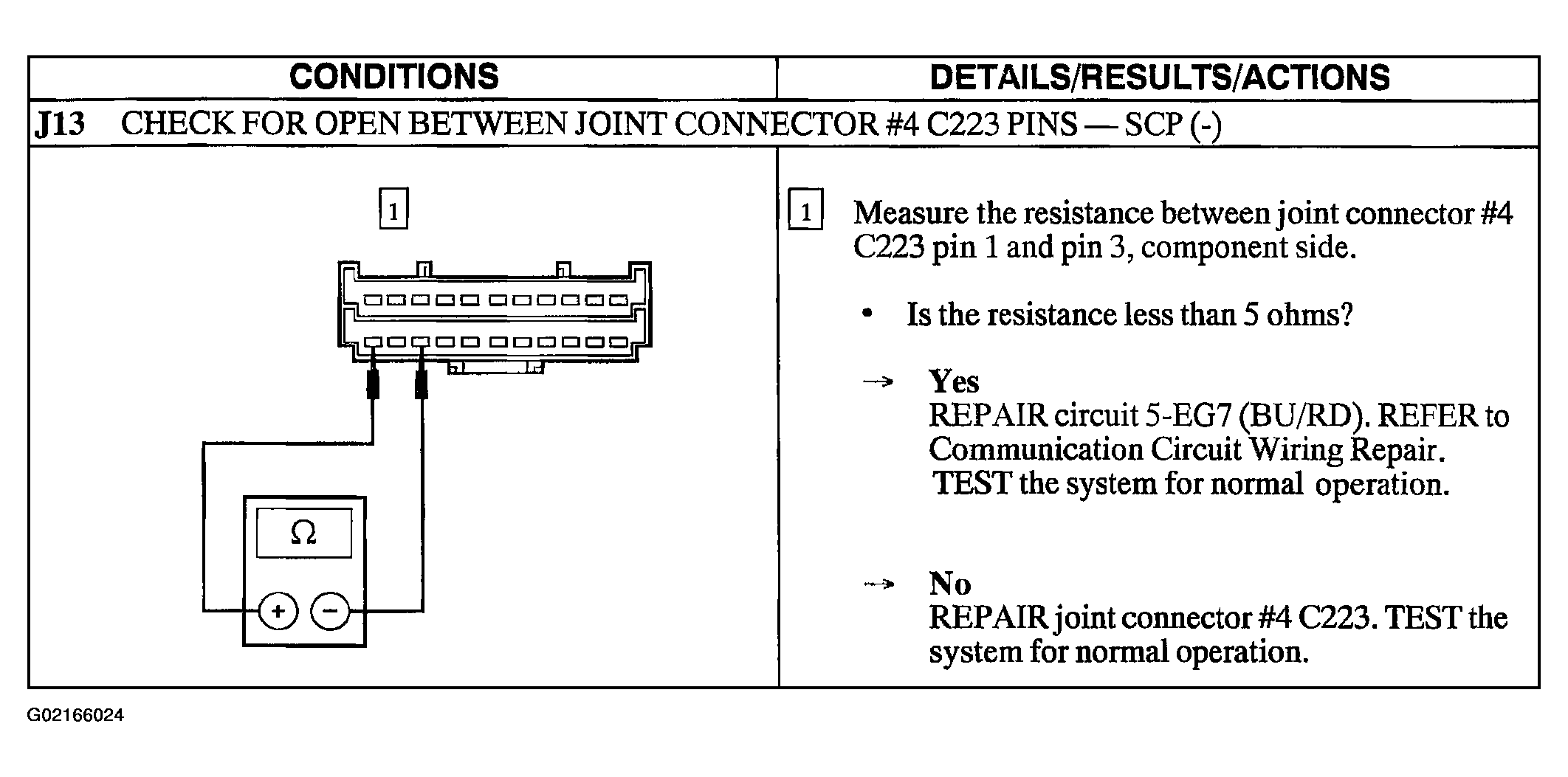

Fig 8: Pinpoint Test J: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool (Step J13)

Courtesy of FORD MOTOR CO.
