Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

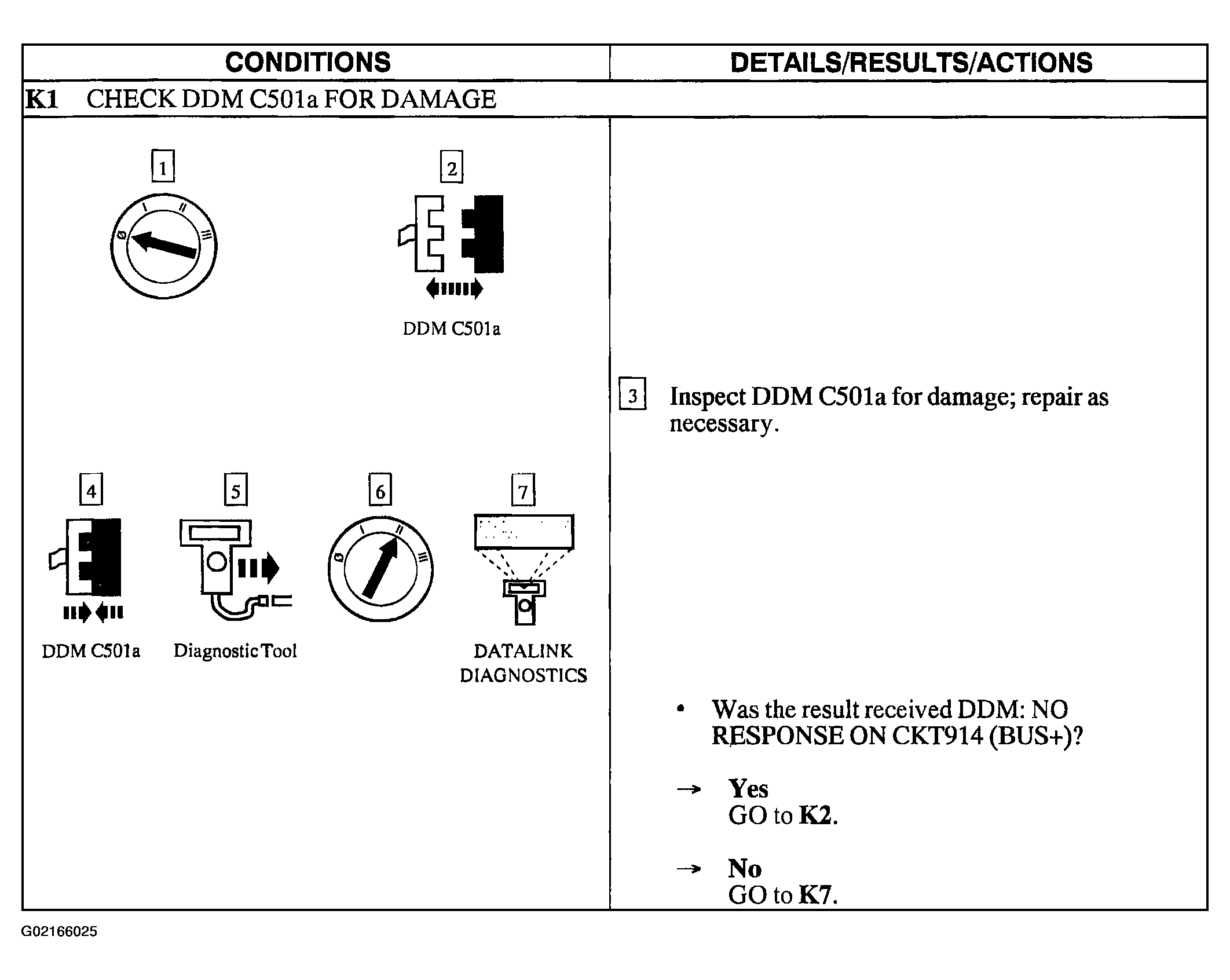

Fig 1: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Step K1)

Courtesy of FORD MOTOR CO.

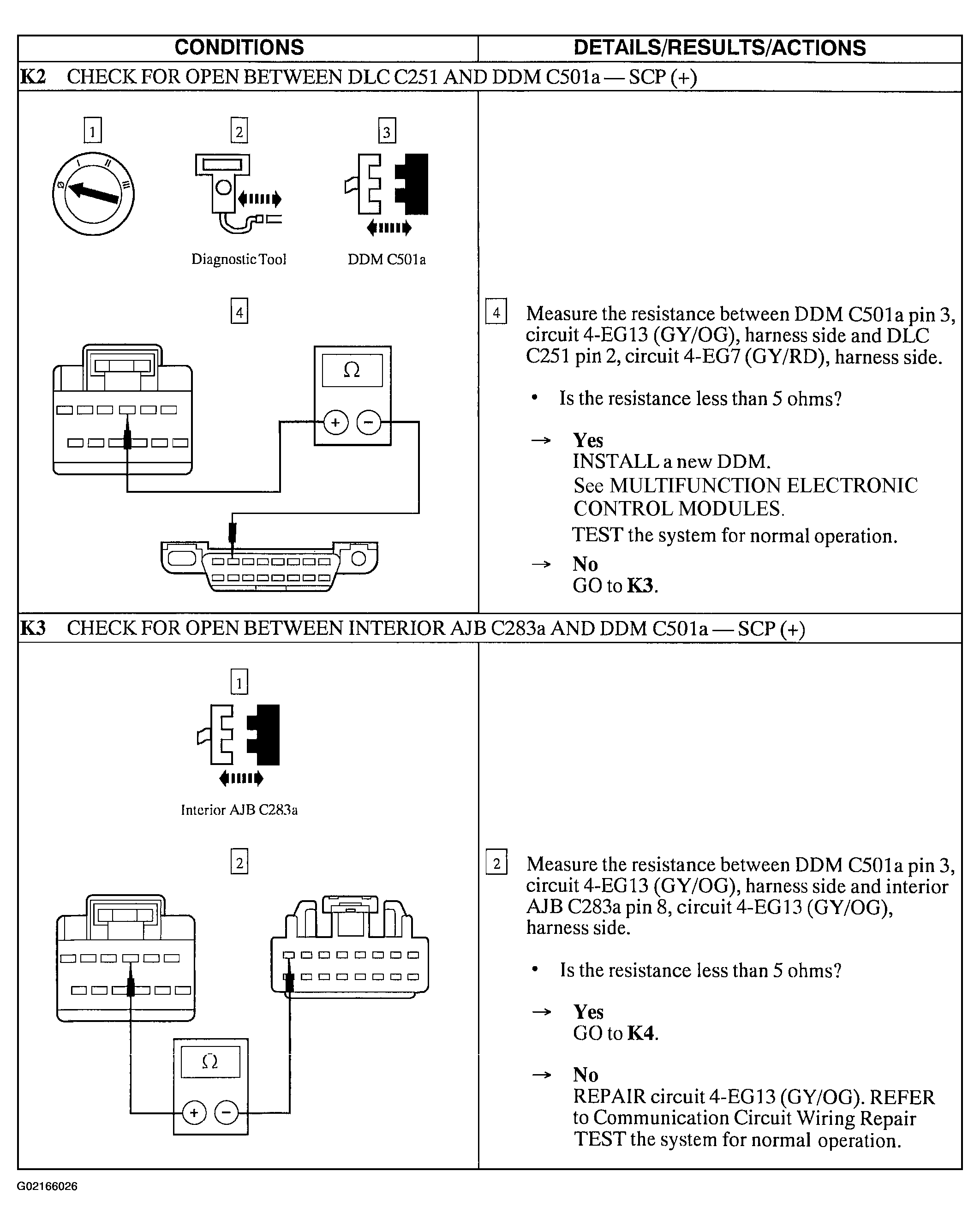

Fig 2: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Steps K2 & K3)

Courtesy of FORD MOTOR CO.

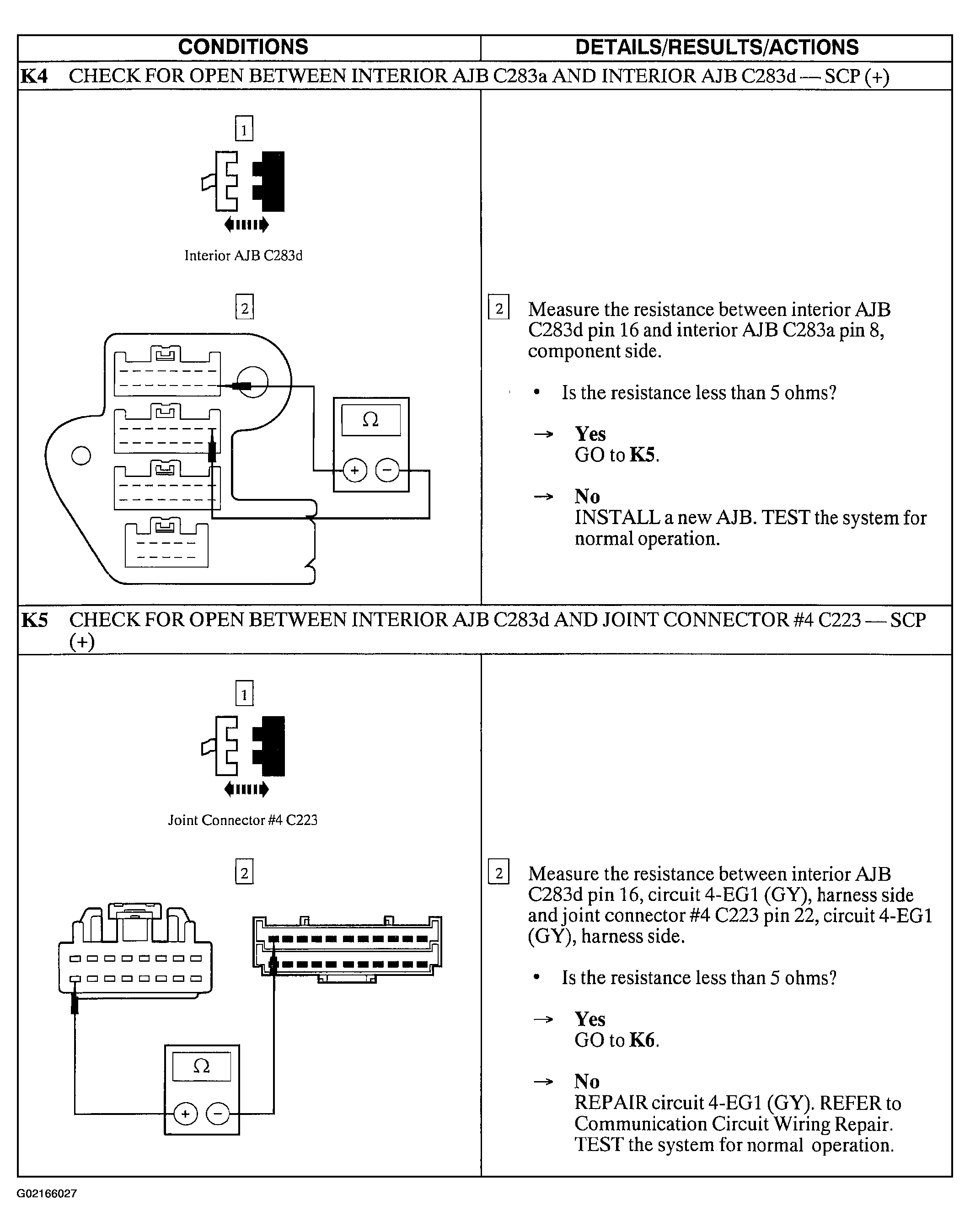

Fig 3: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Steps K4 & K5)

Courtesy of FORD MOTOR CO.

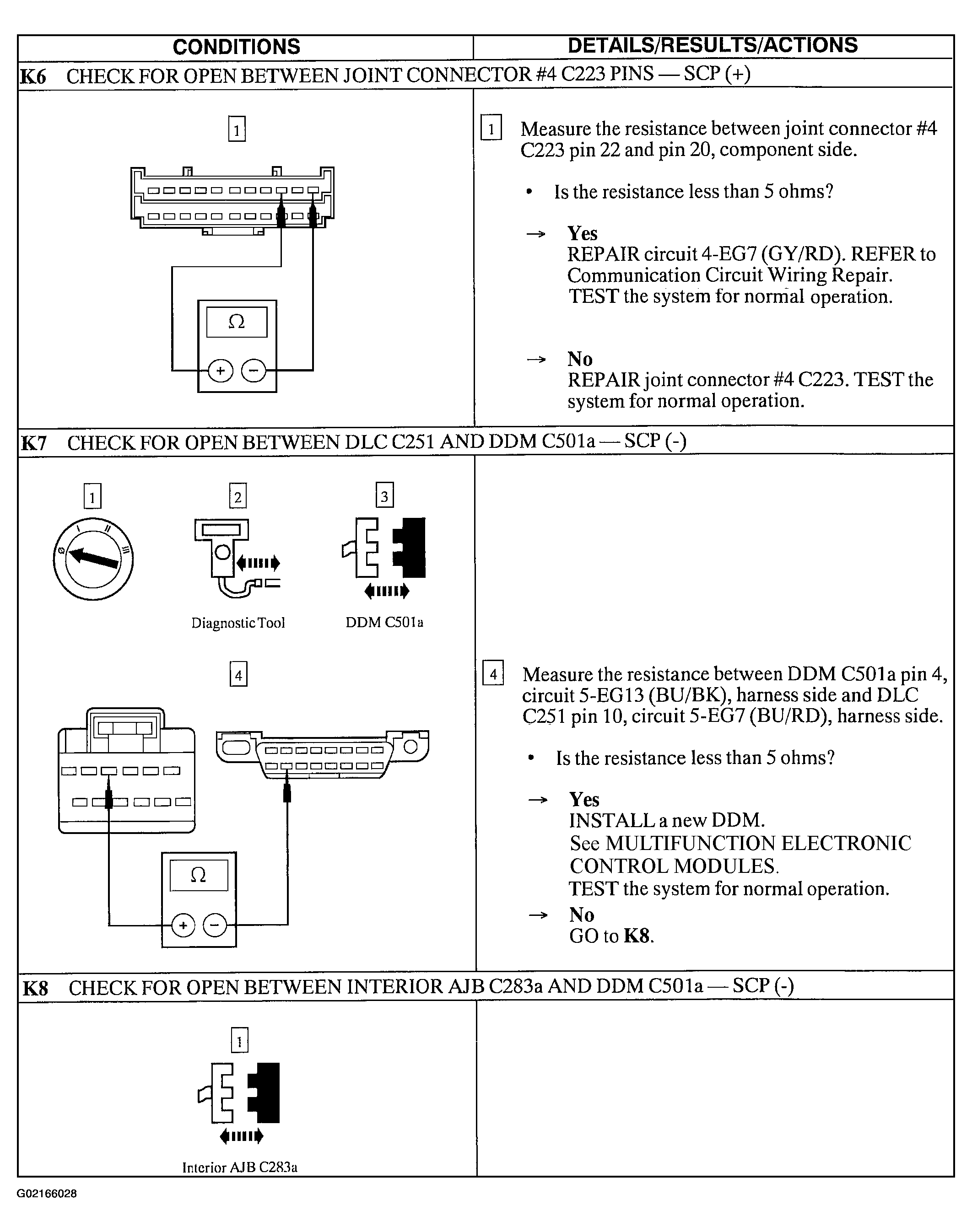

Fig 4: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Steps K6 To K8)

Courtesy of FORD MOTOR CO.

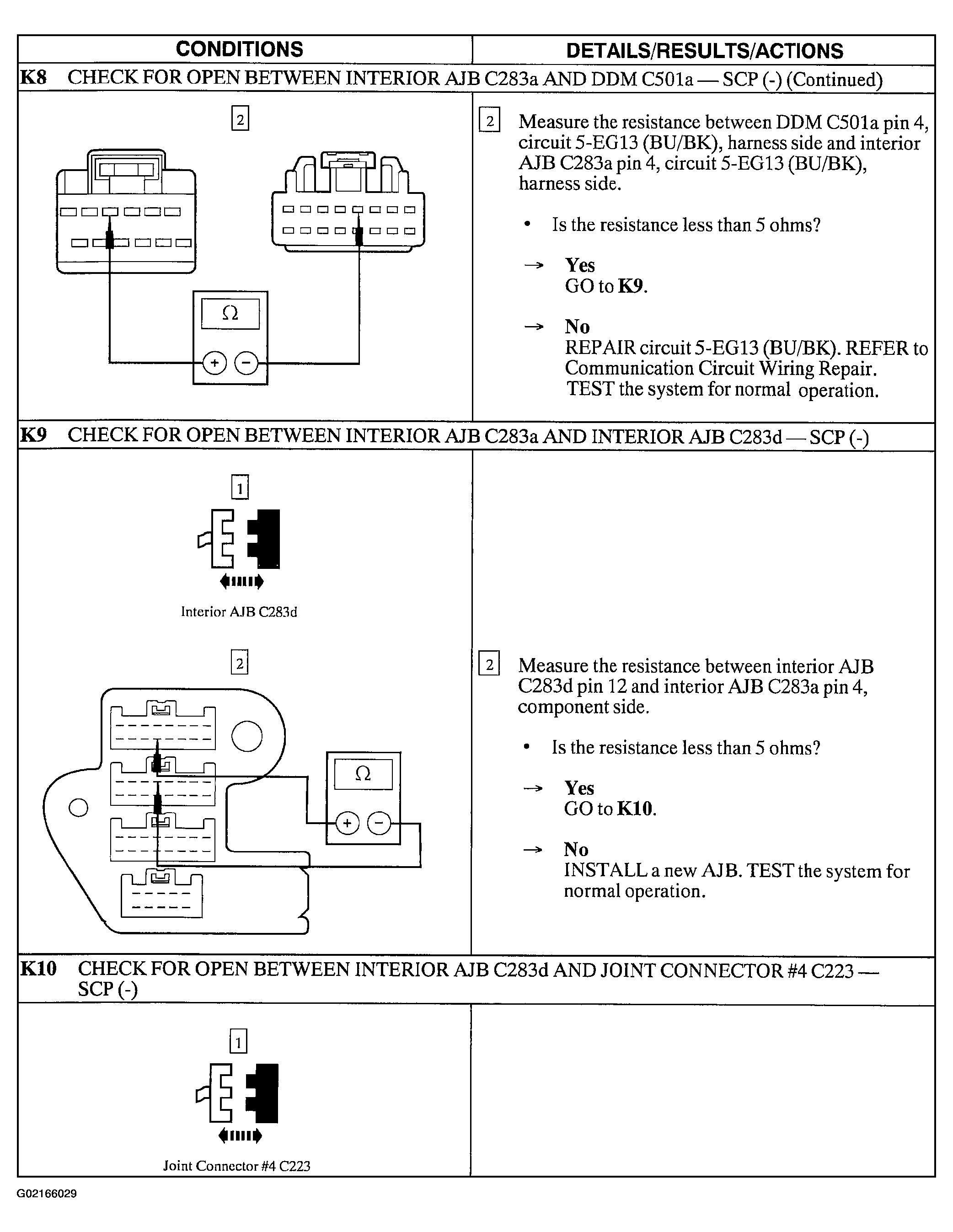

Fig 5: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Steps K8 Cont. To K10)

Courtesy of FORD MOTOR CO.

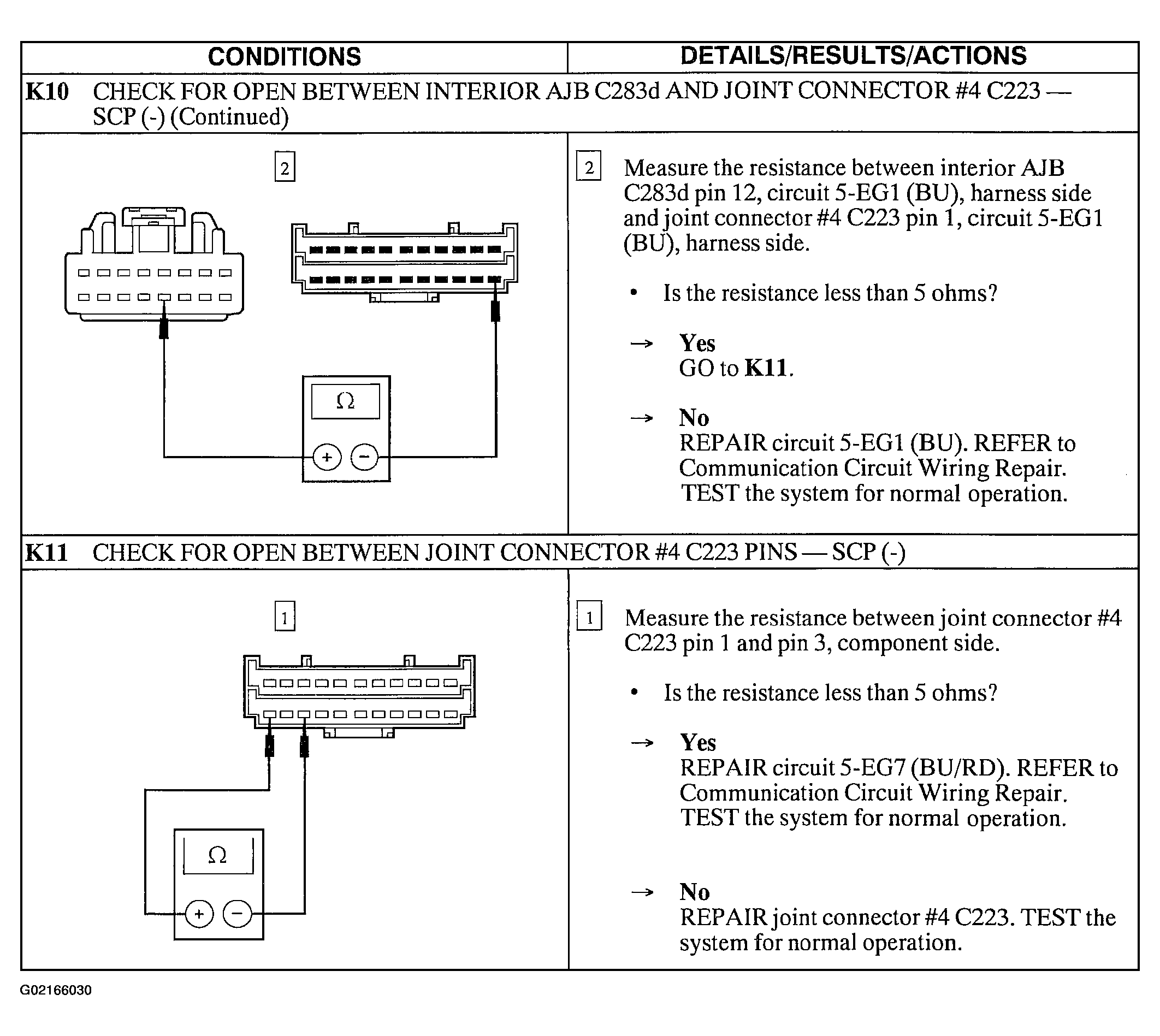

Fig 6: Pinpoint Test K: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool (Steps K10 Cont. & K11)

Courtesy of FORD MOTOR CO.
