Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

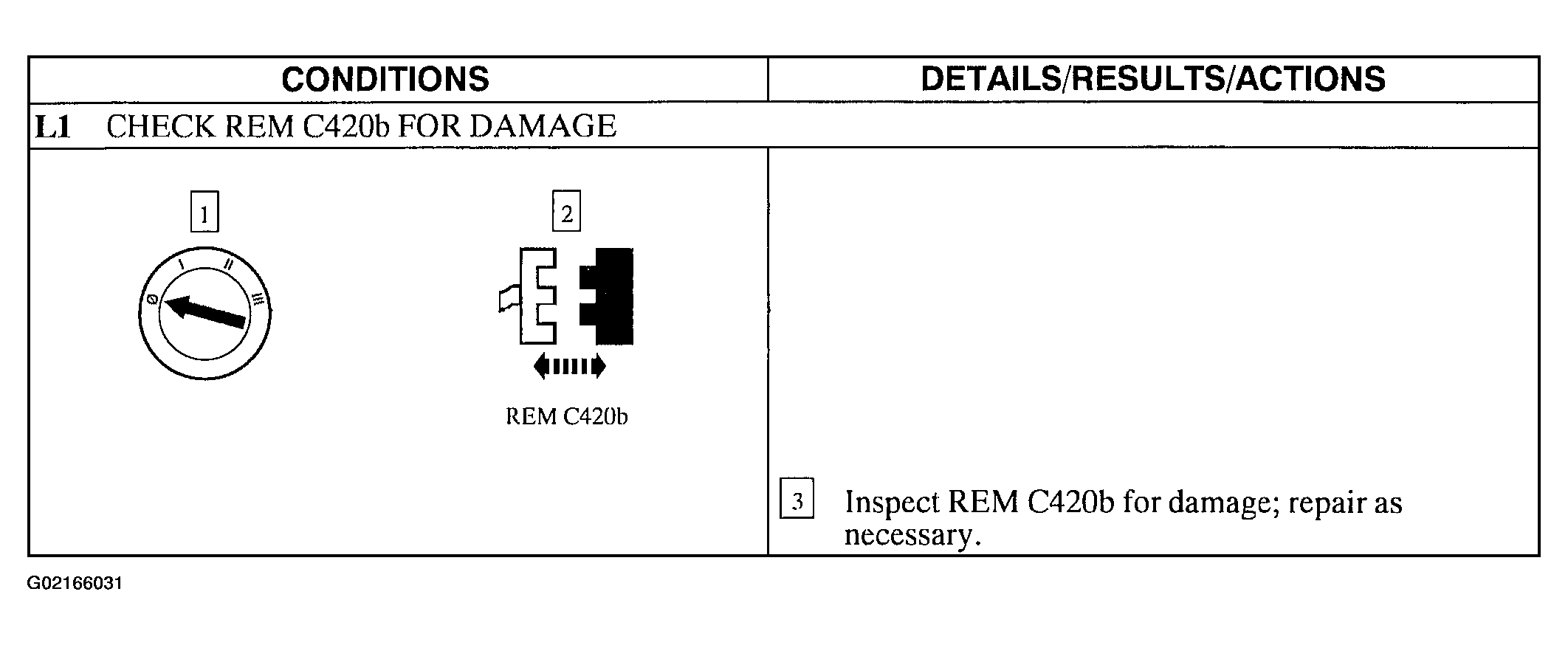

Fig 1: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Step L1)

Courtesy of FORD MOTOR CO.

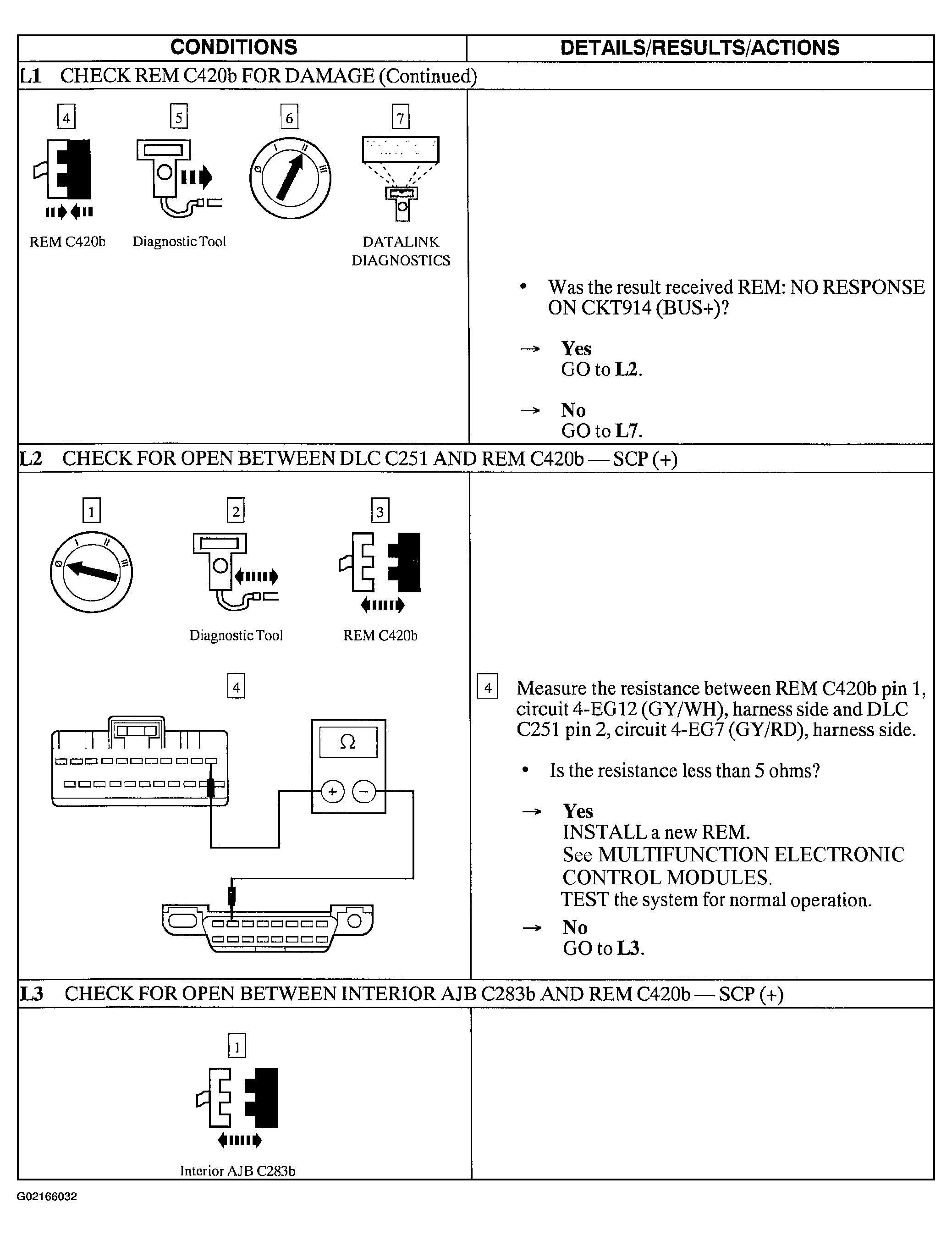

Fig 2: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Step L1 Cont. To L3)

Courtesy of FORD MOTOR CO.

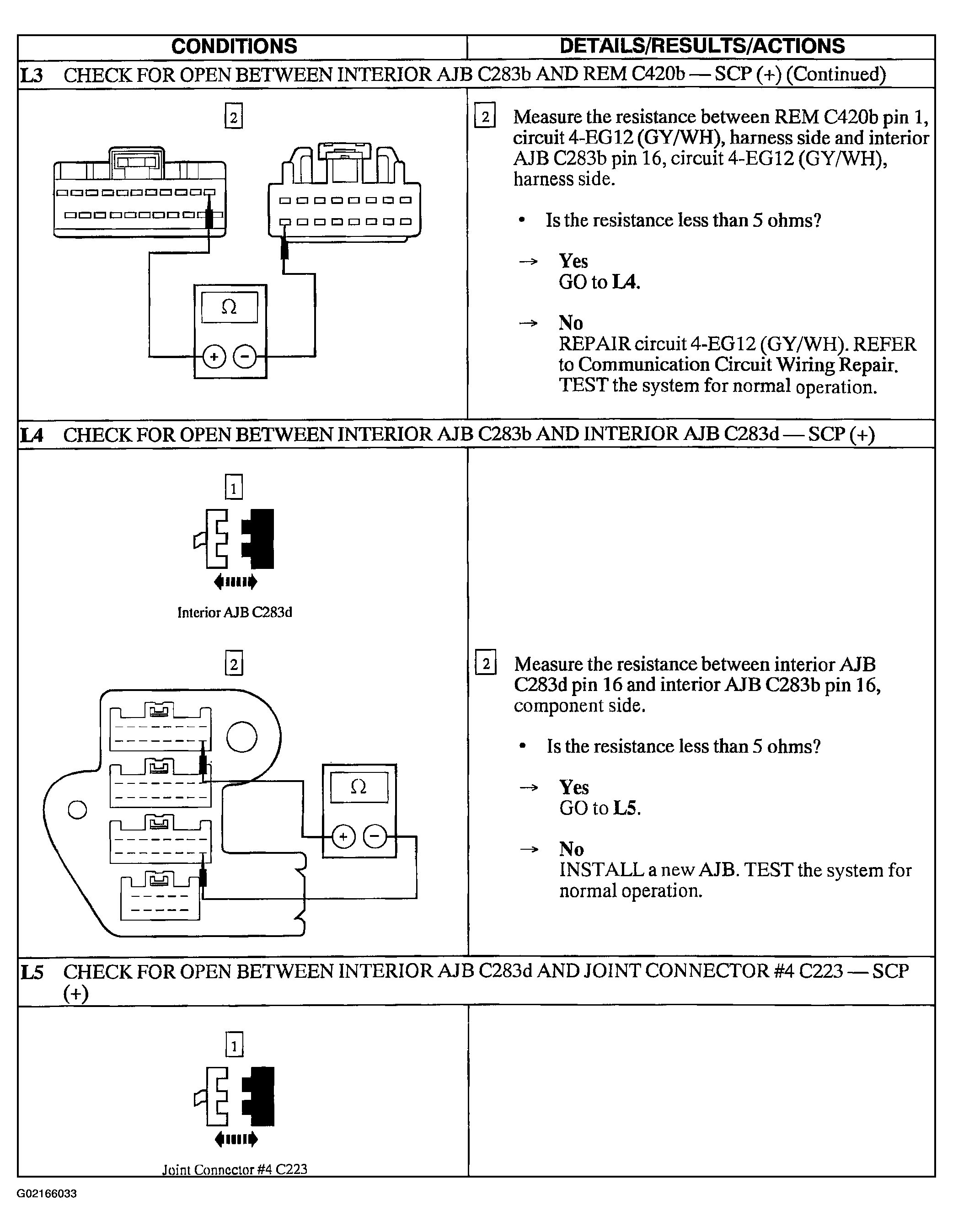

Fig 3: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Steps L3 Cont. L5)

Courtesy of FORD MOTOR CO.

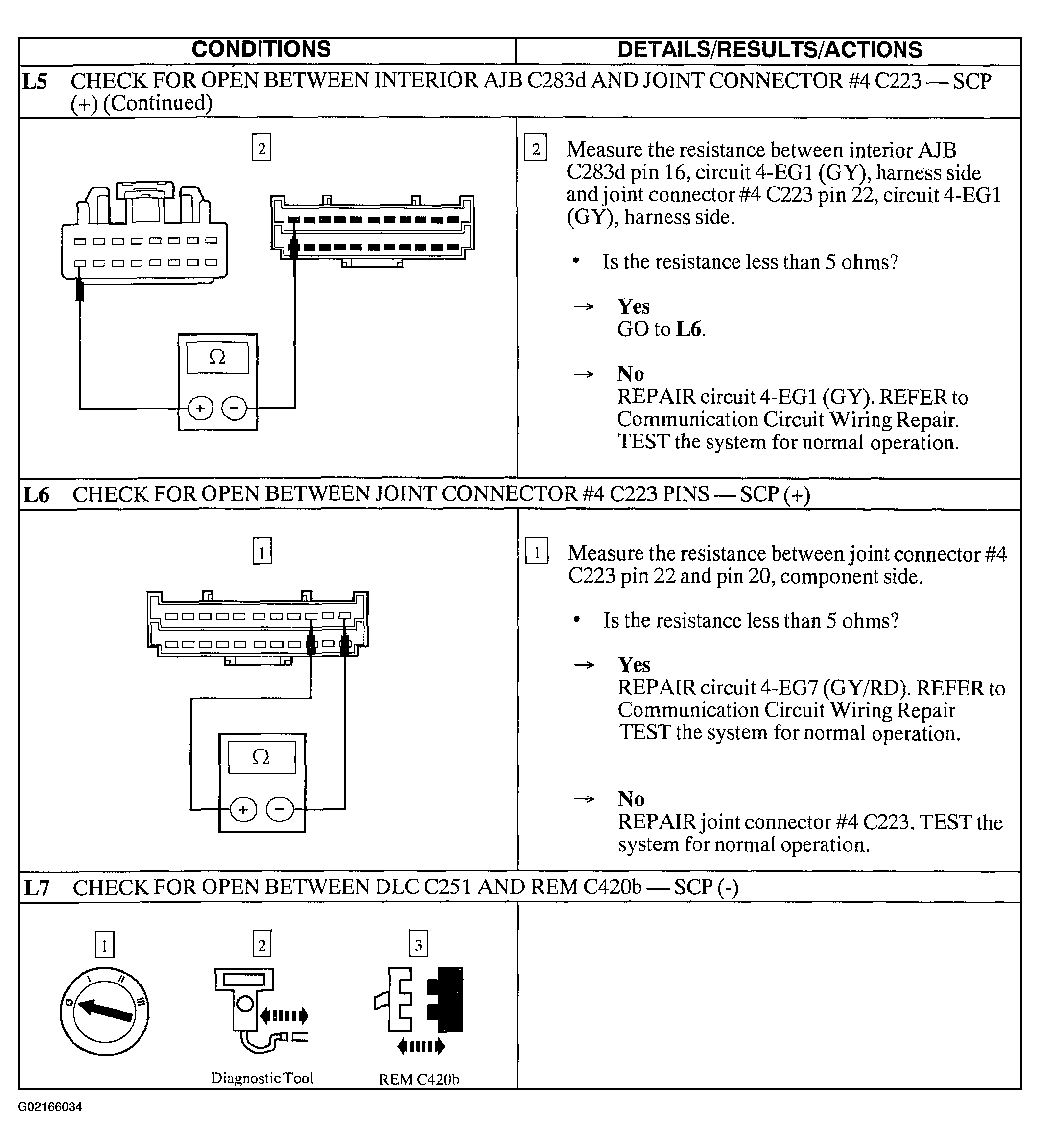

Fig 4: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Steps L5 Cont. To L7)

Courtesy of FORD MOTOR CO.

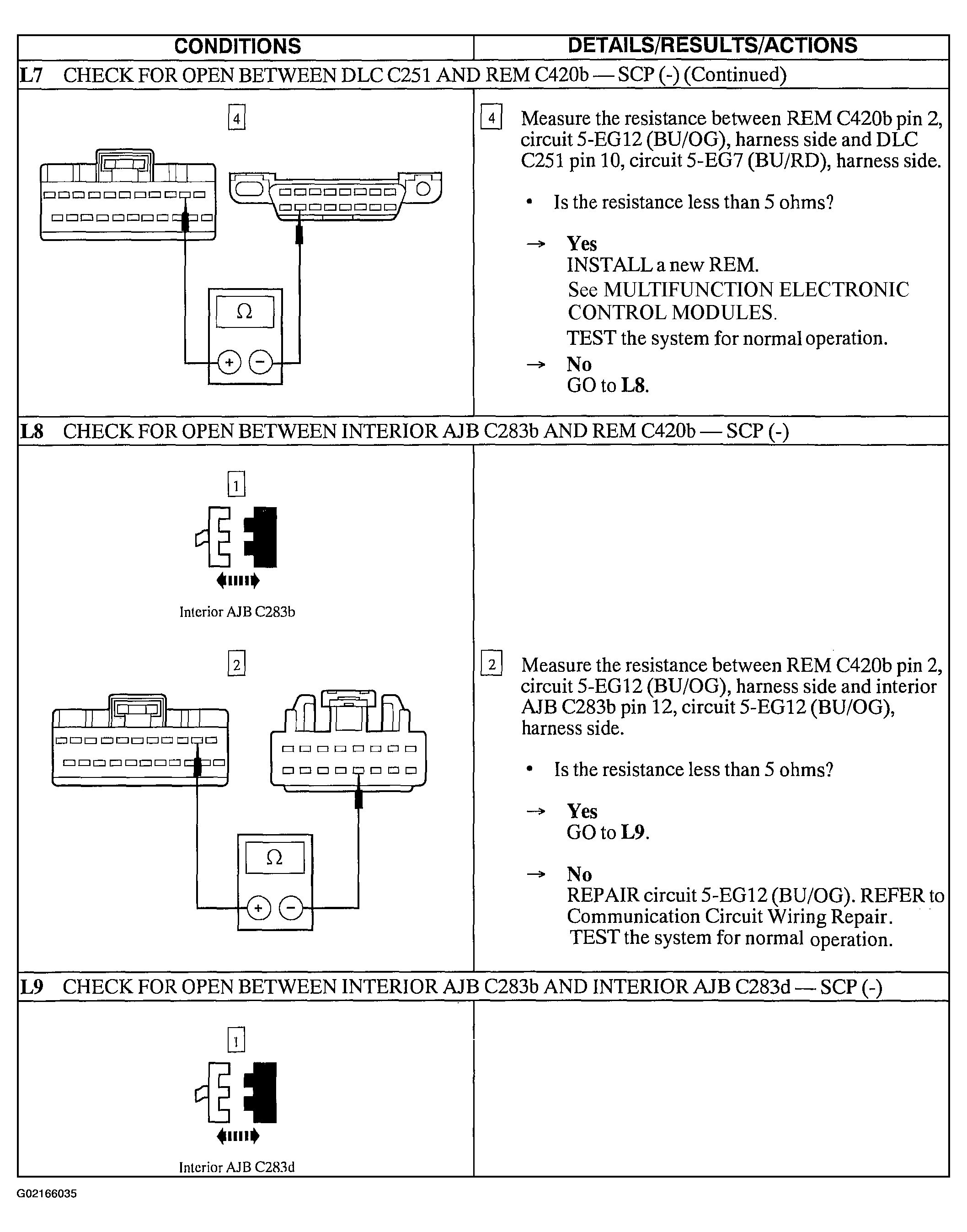

Fig 5: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Steps L7 Cont. To L9)

Courtesy of FORD MOTOR CO.

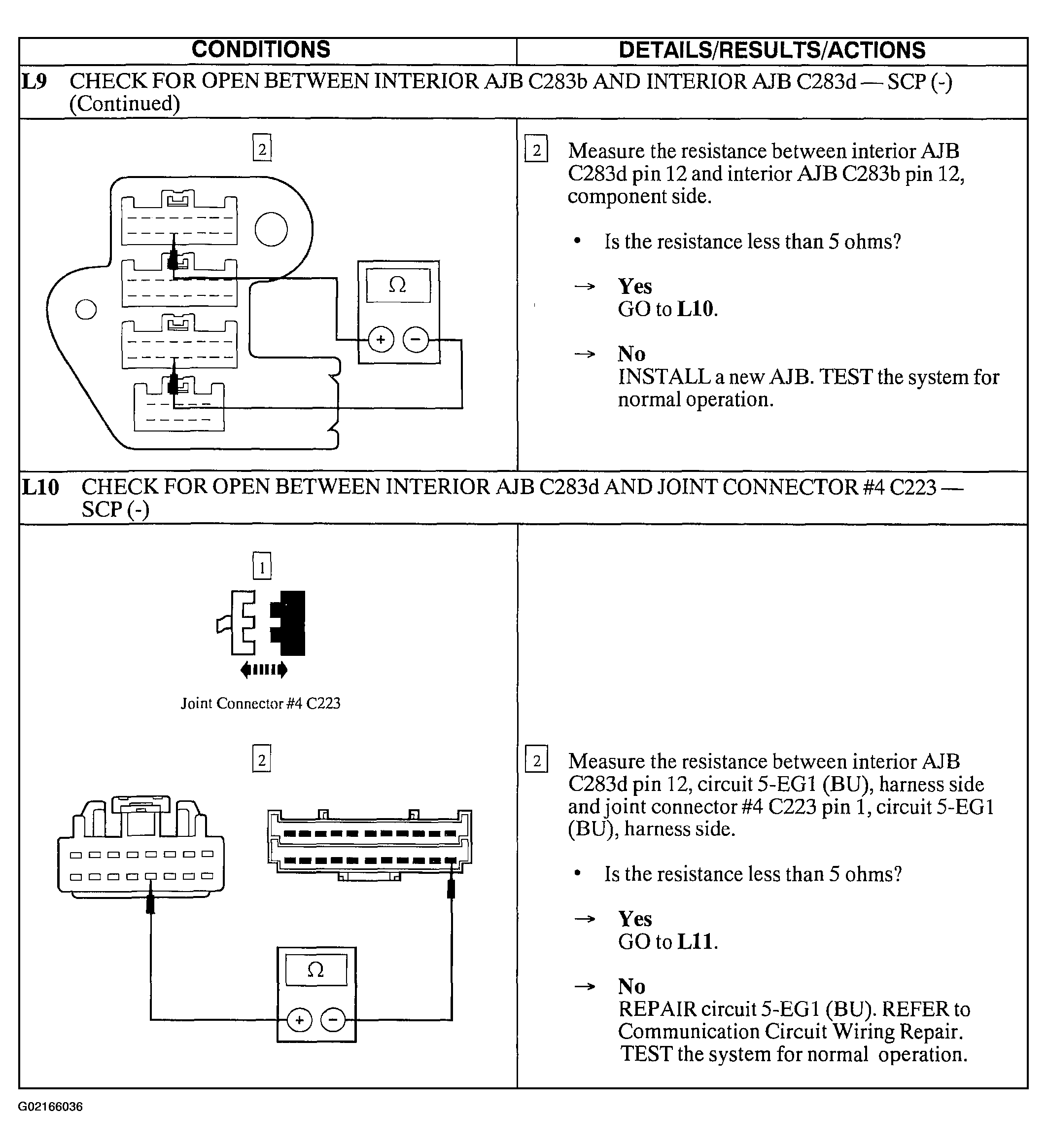

Fig 6: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Steps L9 Cont. & L10)

Courtesy of FORD MOTOR CO.

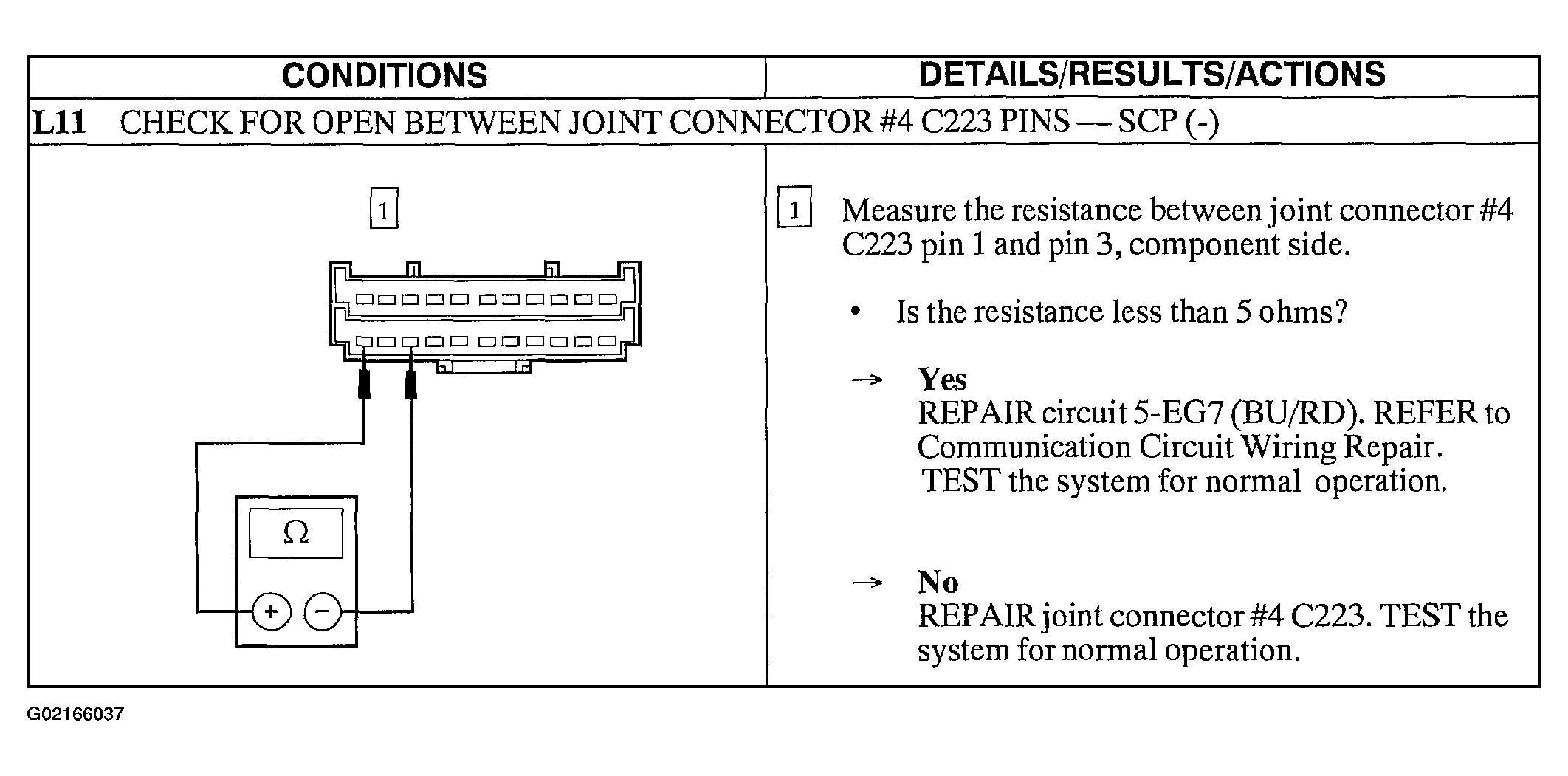

Fig 7: Pinpoint Test L: The Rear Electronic Module (REM) Does Not Respond To The Diagnostic Tool (Step L11)

Courtesy of FORD MOTOR CO.
