Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

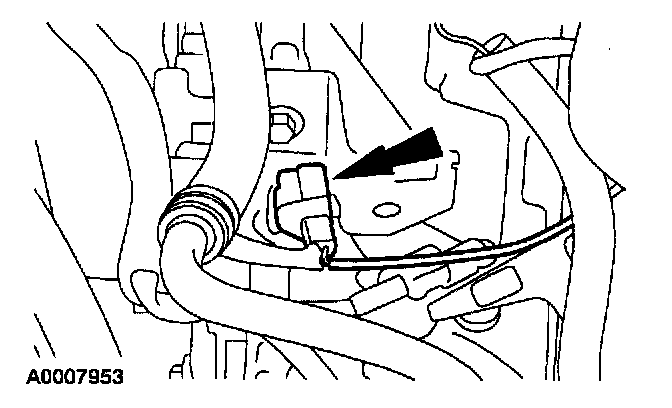

3. Disconnect the Knock Sensor (KS) electrical connector.

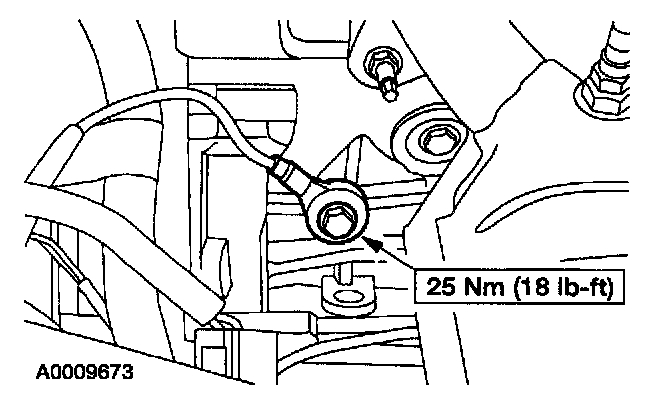

4. Remove the bolt and the KS.

INSTALLATION
1. To install, reverse the removal procedure.
