Central Junction Box





ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with in the Central Junction Box/Passenger Compartment Fuse Panel.
Horn Relay is not removealble. See Fuse F230 (15A).

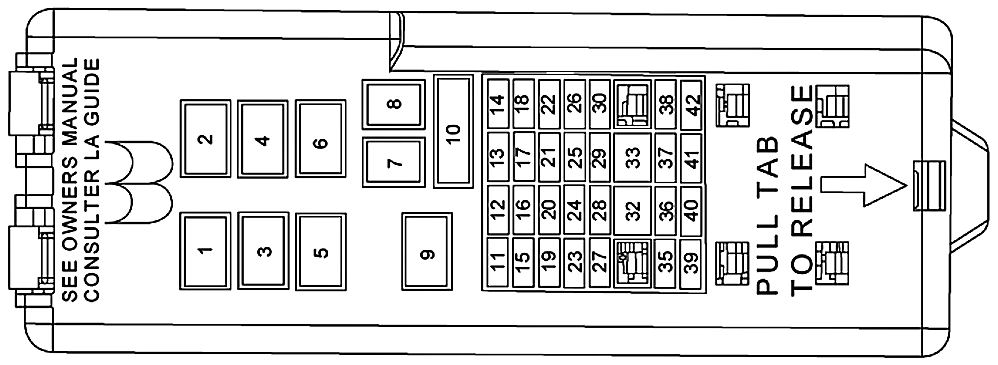

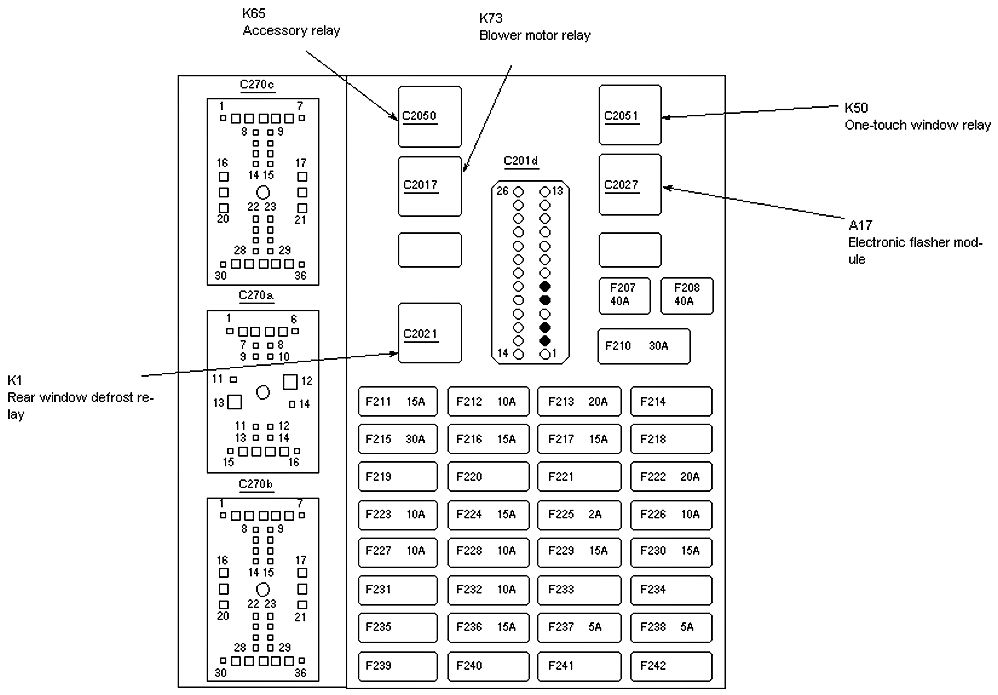

Central Junction Box/Passenger Compartment Fuse Panel:





Central Junction Box/Passenger Compartment Fuse Panel:

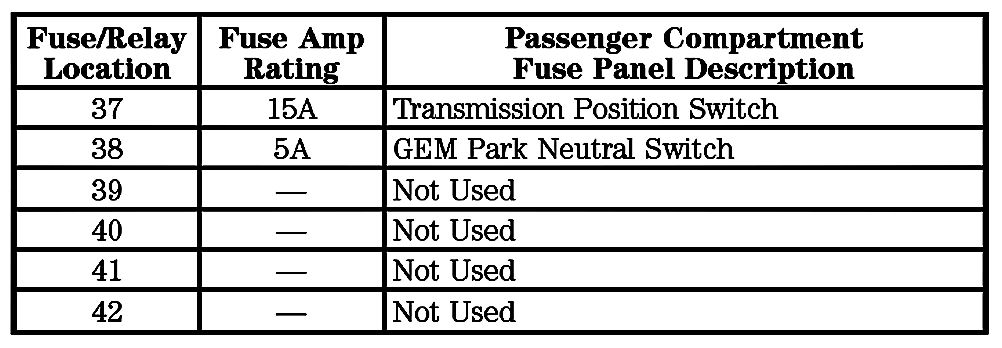

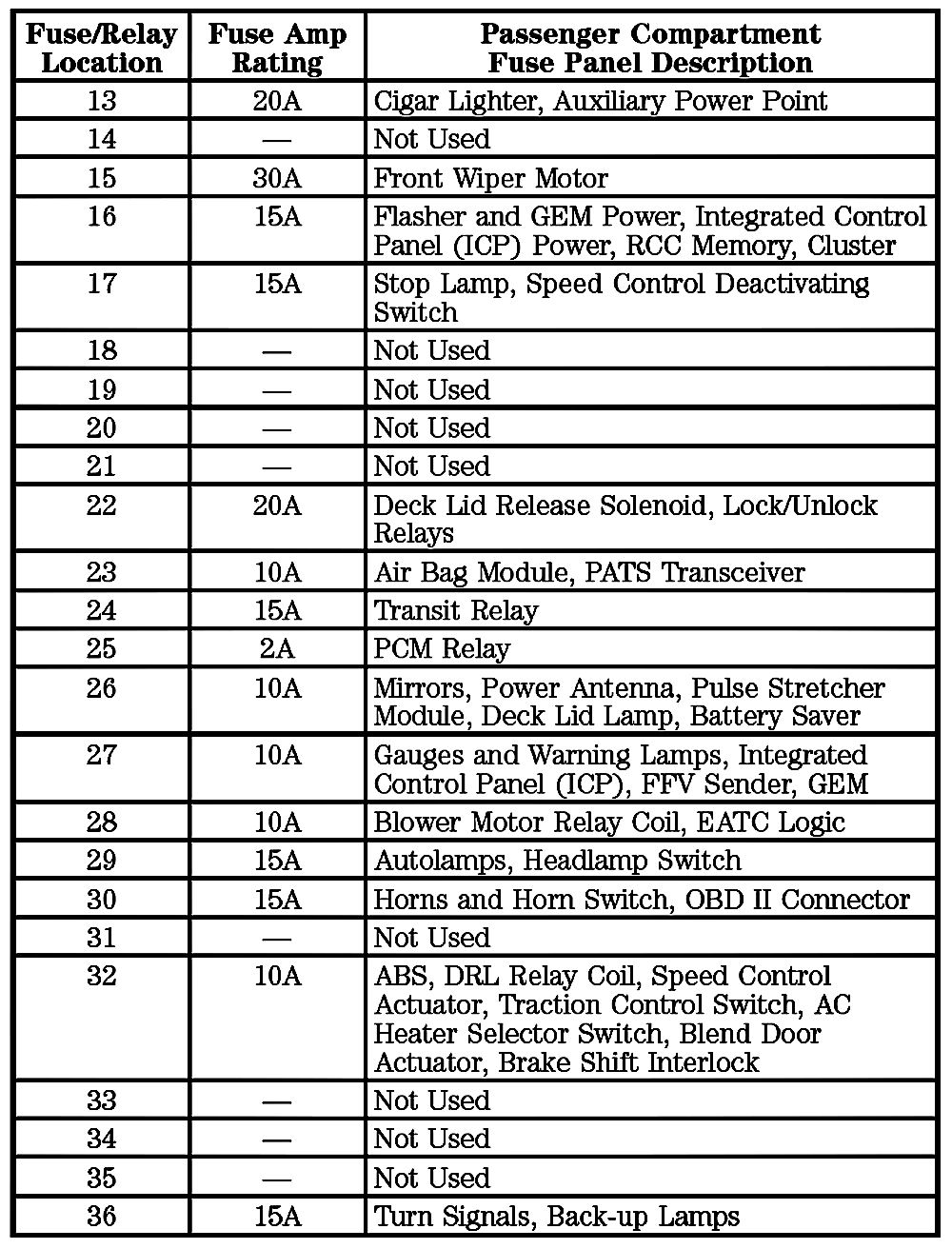

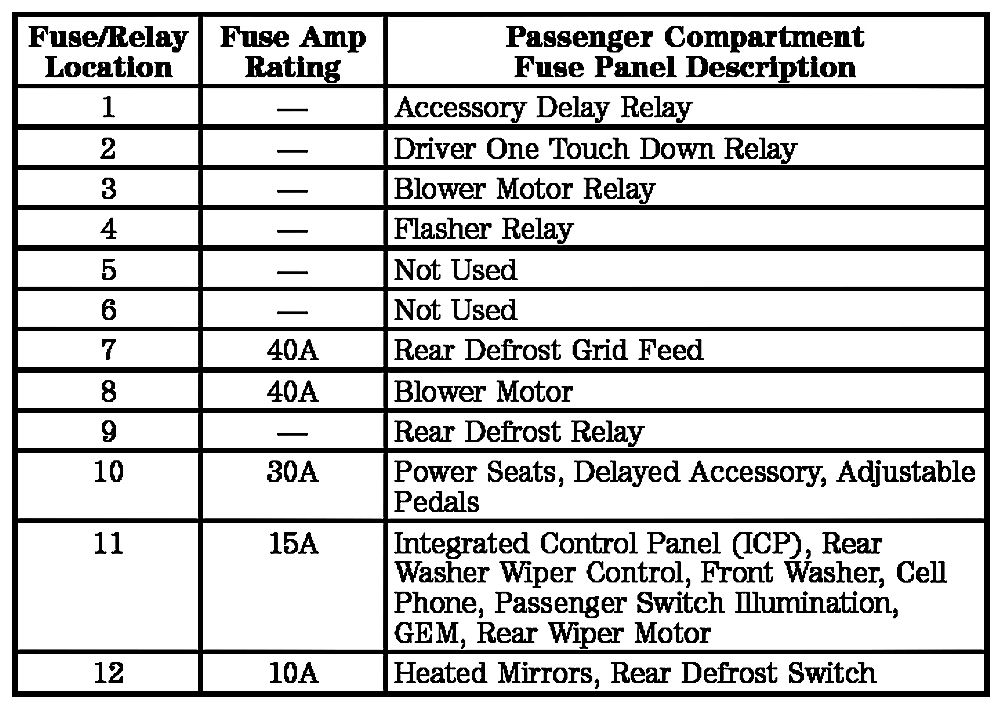

Central Junction Box/Passenger Compartment Fuse Panel Legend:





Central Junction Box/Passenger Compartment Fuse Panel Legend:





Central Junction Box/Passenger Compartment Fuse Panel Legend:






Note: The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
