Power Window Switch: Service and Repair

REMOVAL

NOTE: Driver door shown, all others similar.

1. Remove the door trim panel.







2. Remove the window control switch.

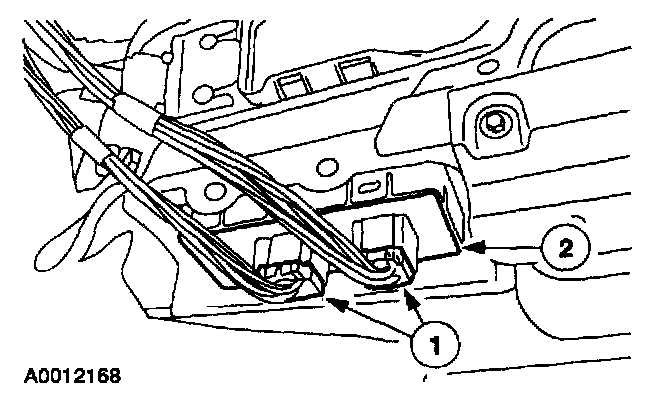

1 Disconnect the window control switch electrical connectors.
2 Release the six window control switch bezel tabs.

INSTALLATION
1. To install, reverse the removal procedure.
