Pinpoint Test F: DTCS C1115, C1185 - Power Relay Output Short Circuit To Battery/Circuit Failure
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

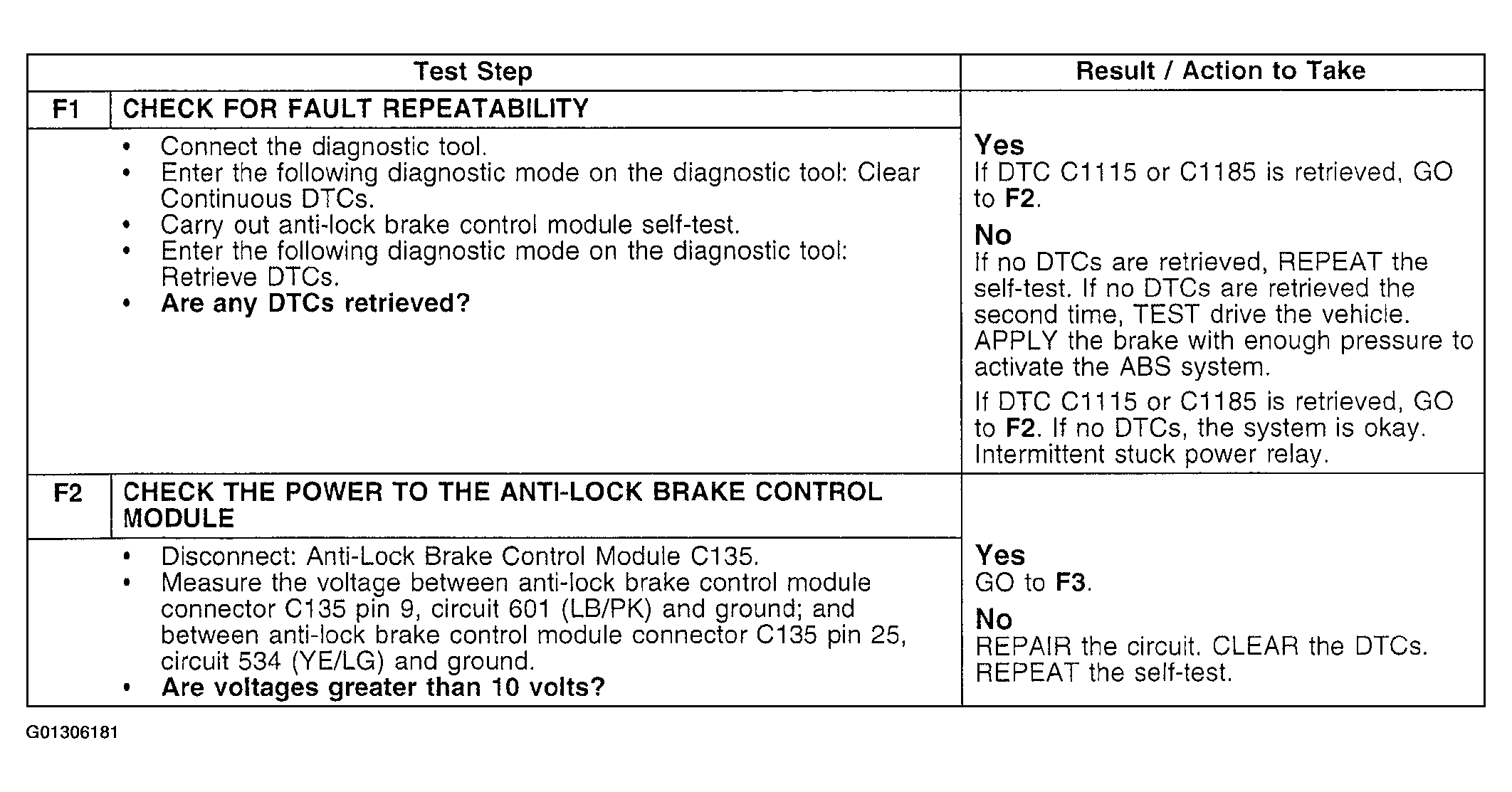

Fig 1: Pinpoint Test F: DTCs C1115, C1185 - Power Relay Output Short Circuit To Battery/Circuit Failure (Steps F1-F2)

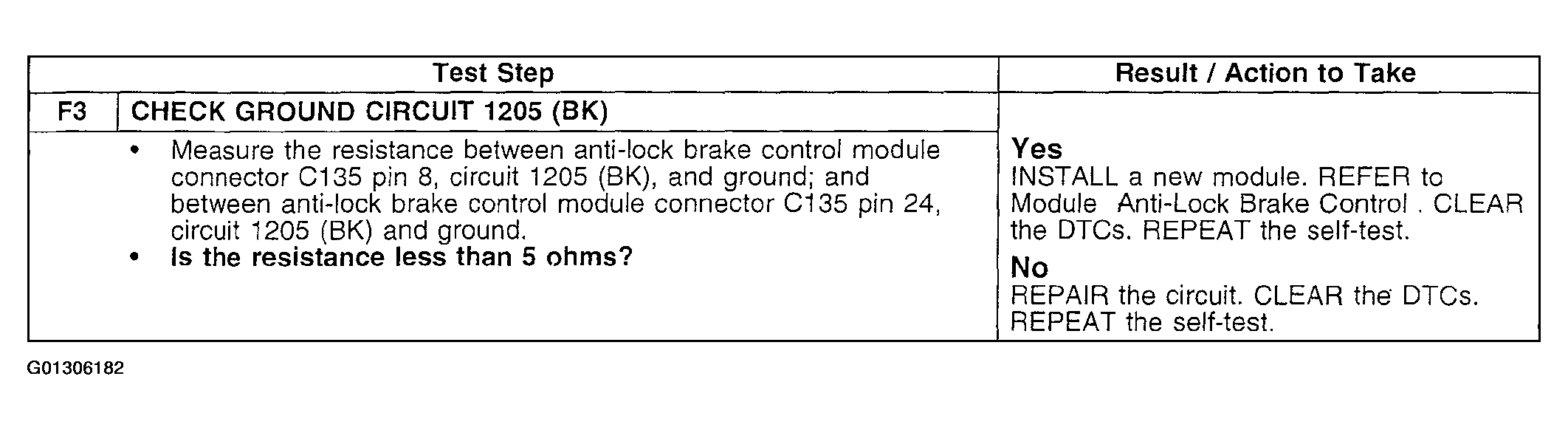

Fig 2: Pinpoint Test F: DTCs C1115, C1185 - Power Relay Output Short Circuit To Battery/Circuit Failure (Step F3)
CAUTION:
The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
