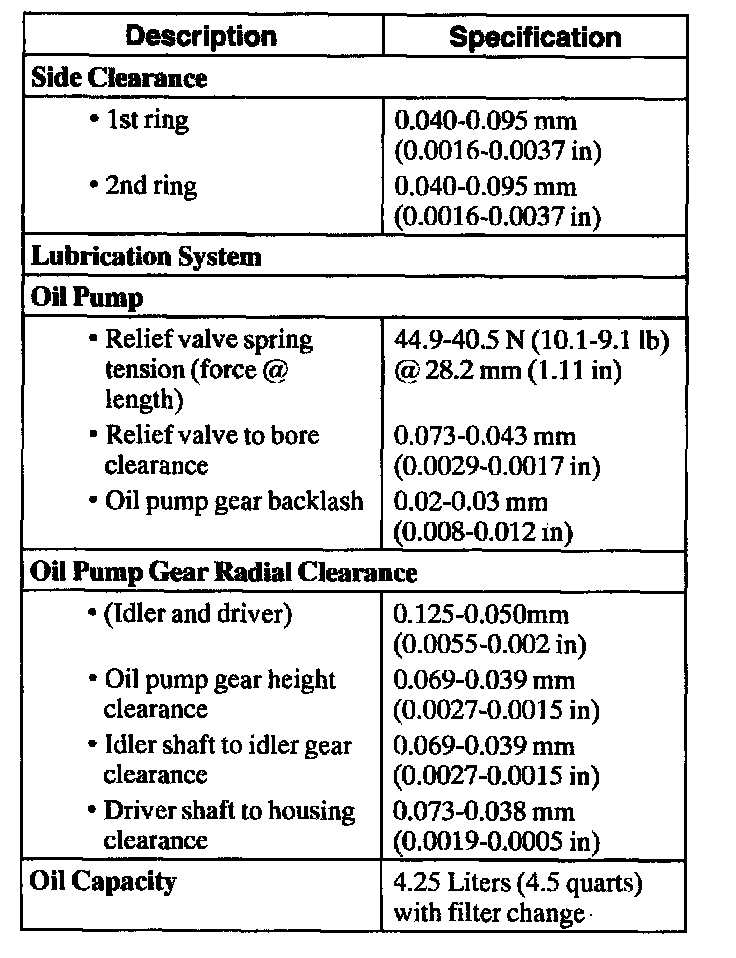

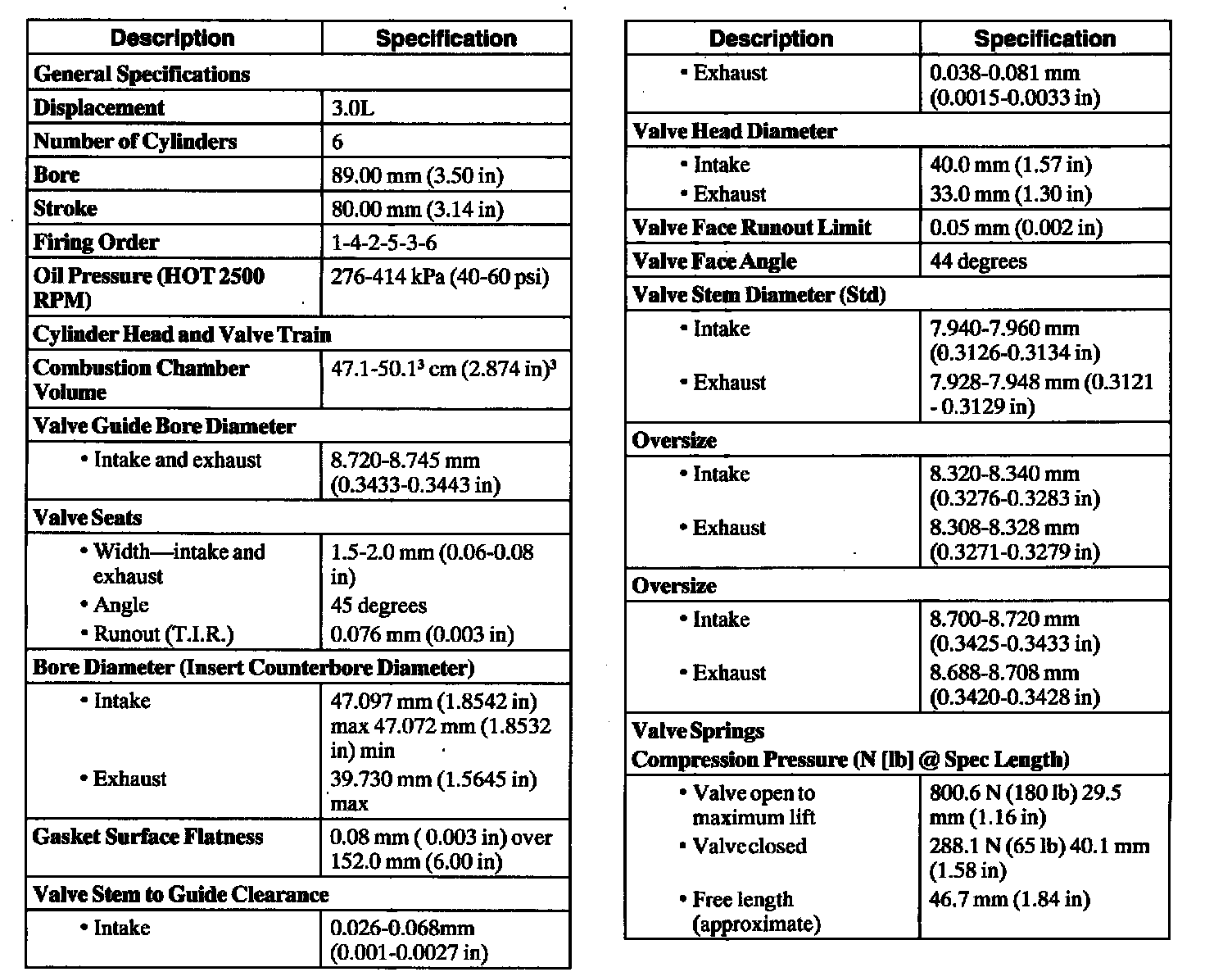

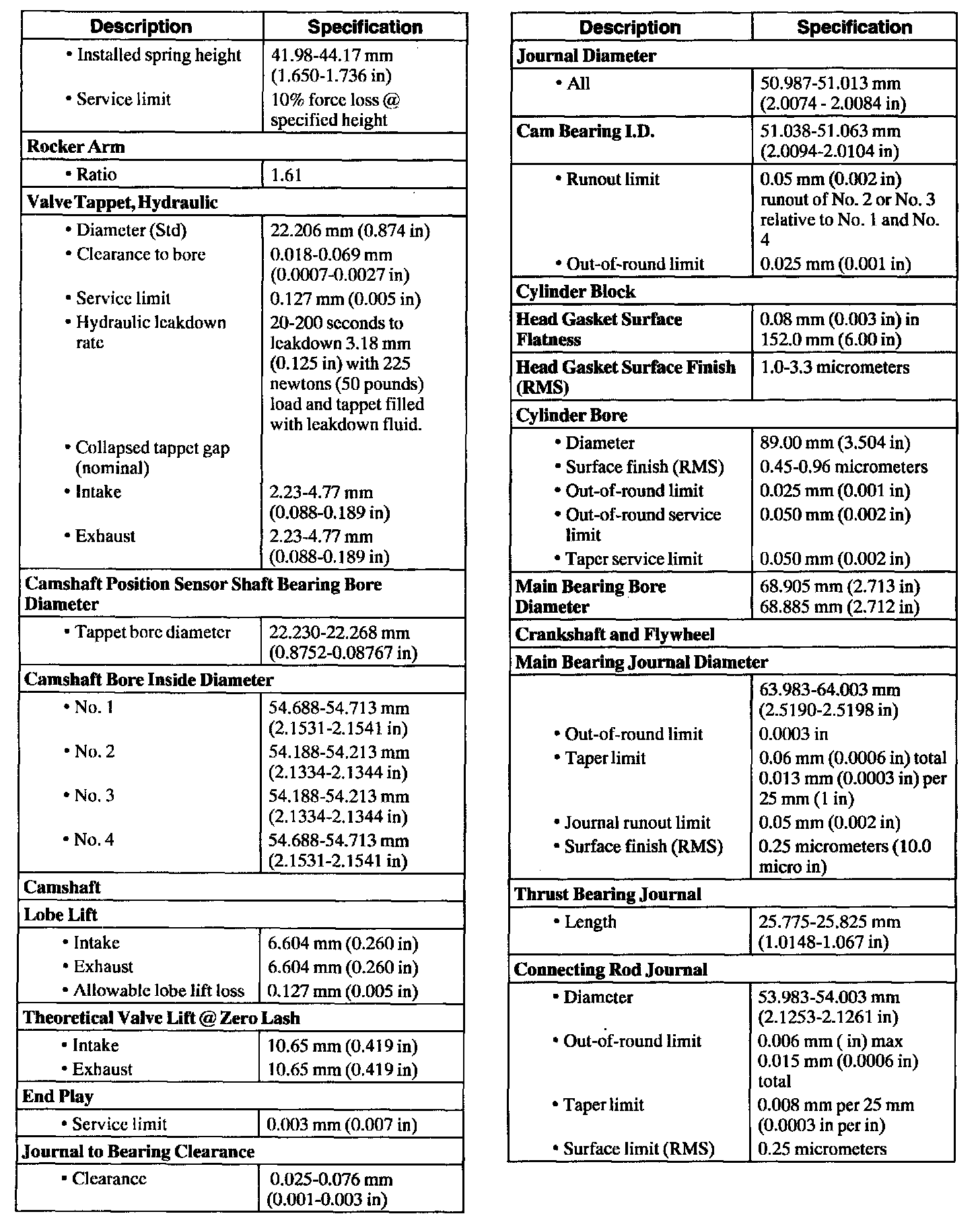

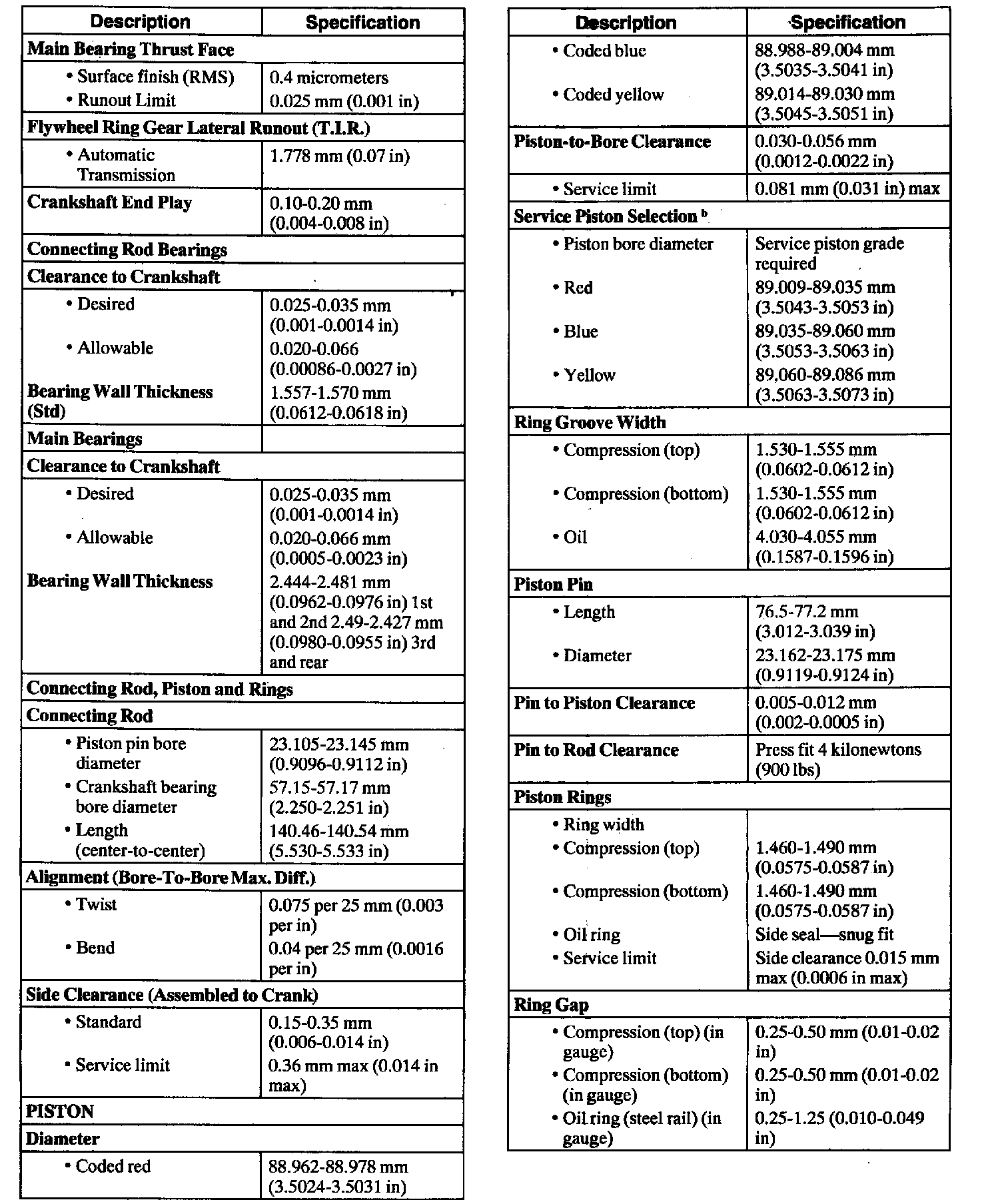

Engine General Specifications

1 of 4





2 of 4





3 of 4





4 of 4

Footnote:

b When replacing pistons, measure the cylinder bore as described in the applicable procedures at Engine; Service and Repair. Install the indicated service piston.
