Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Remove the speed control servo. For additional information, refer to Cruise Control Servo.

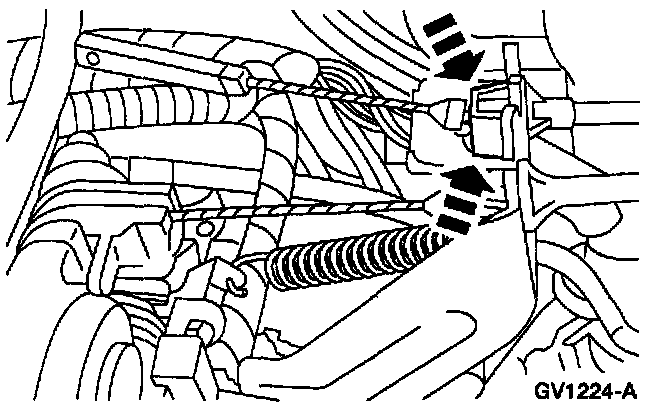

2. Remove the speed control actuator cable from the throttle lever.

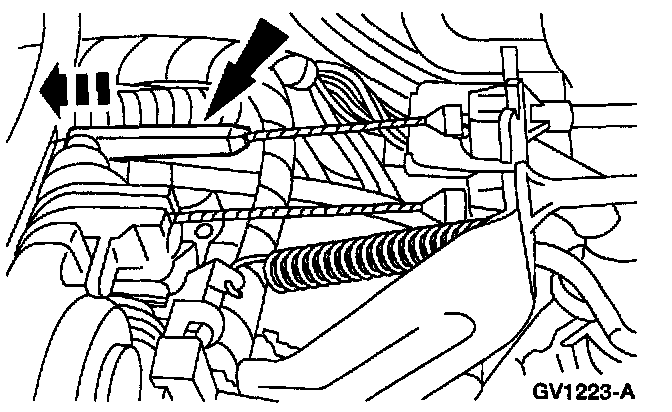

3. Squeeze the speed control cable and remove it from the bracket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure that the speed control cable does not interfere with throttle travel.
