Components

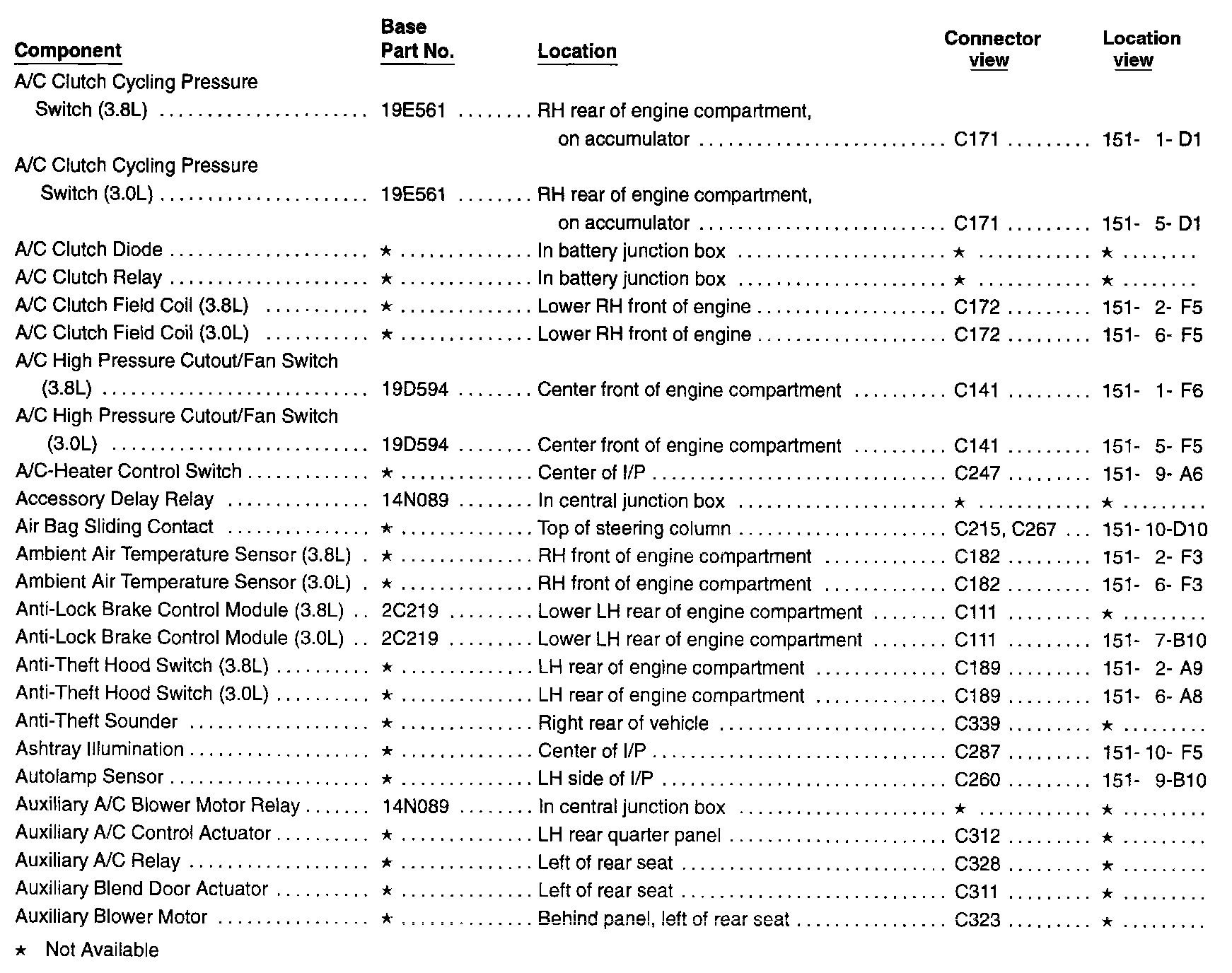

A/c-Au:

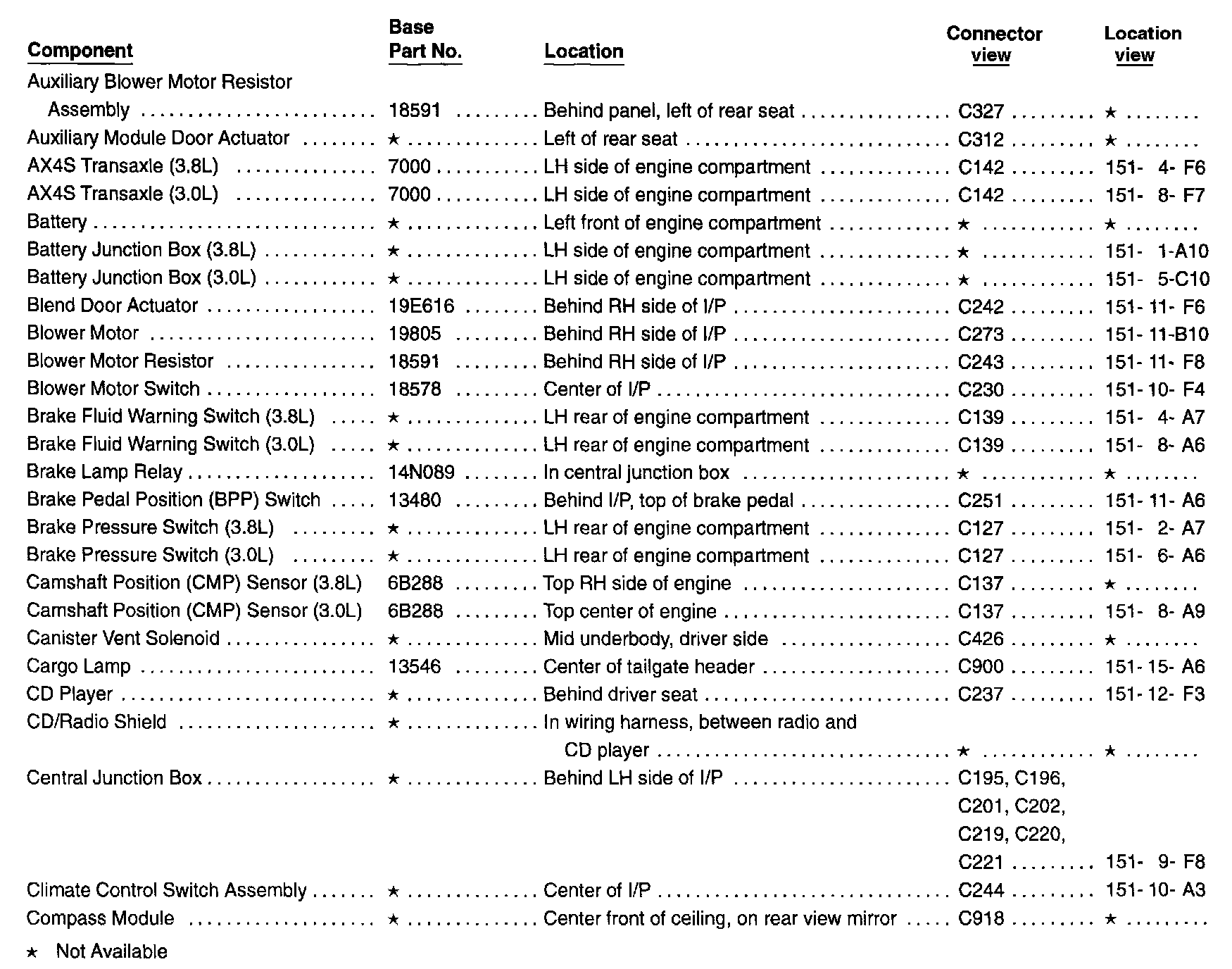

Au-Co:

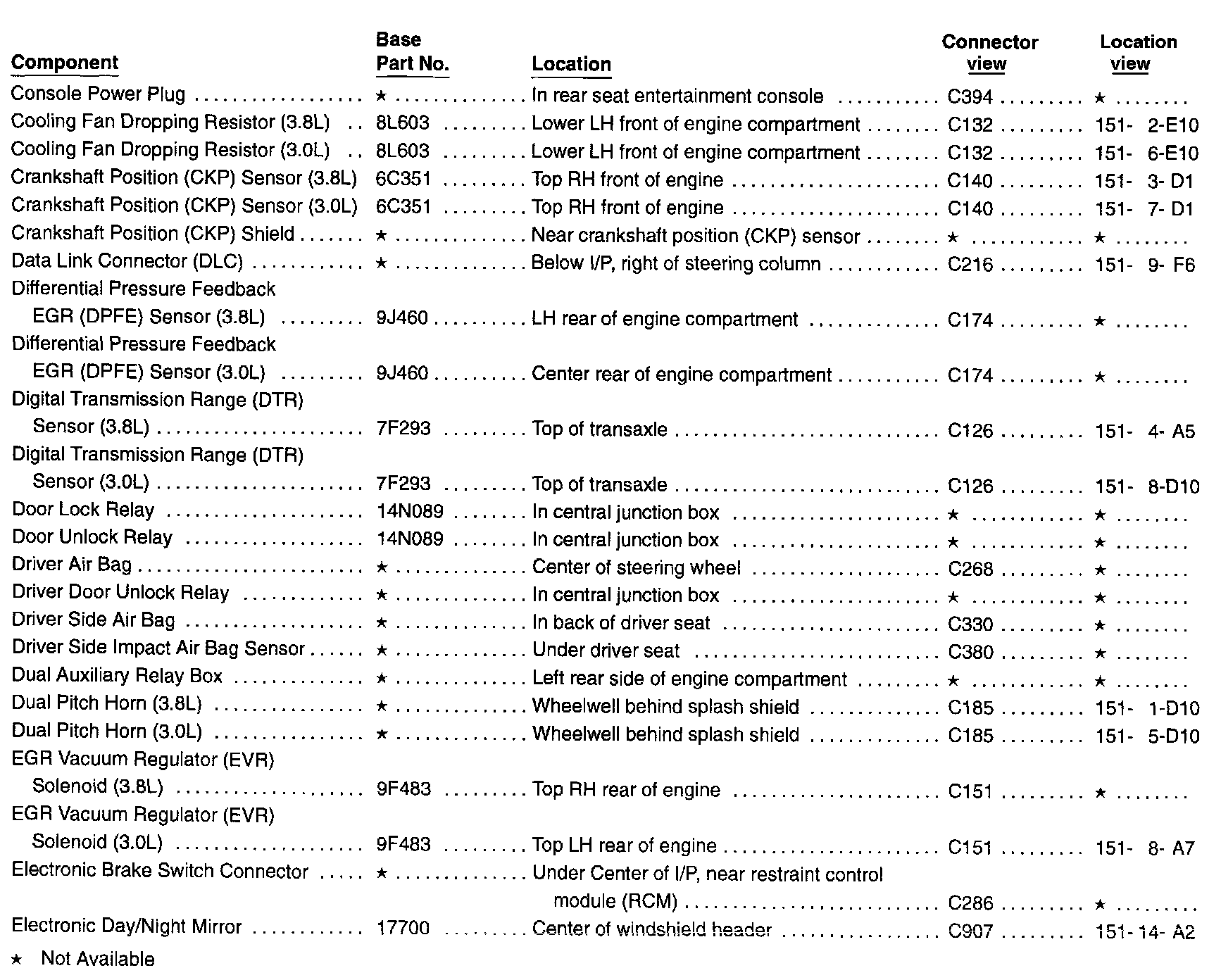

Co-El:

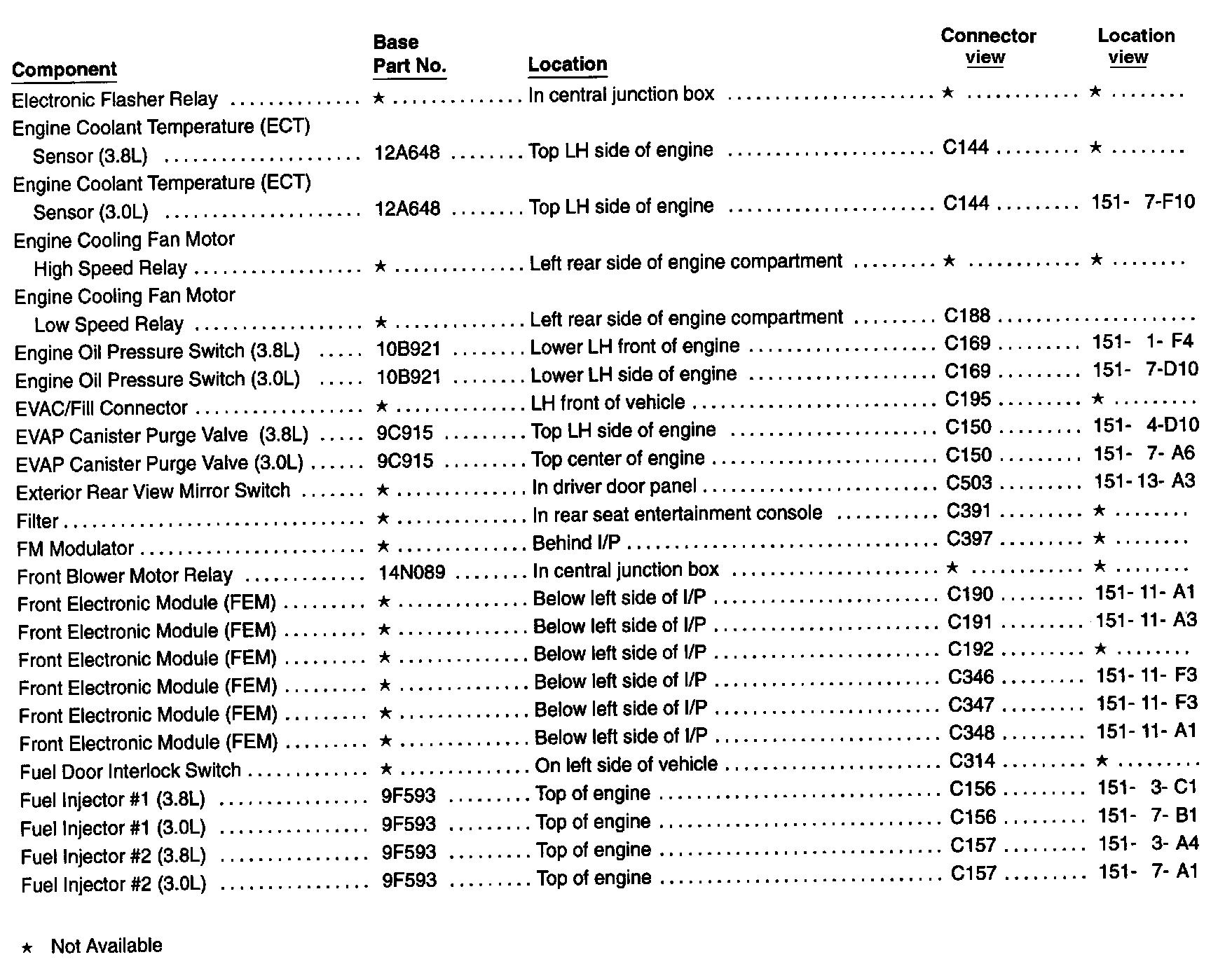

El-Fu:

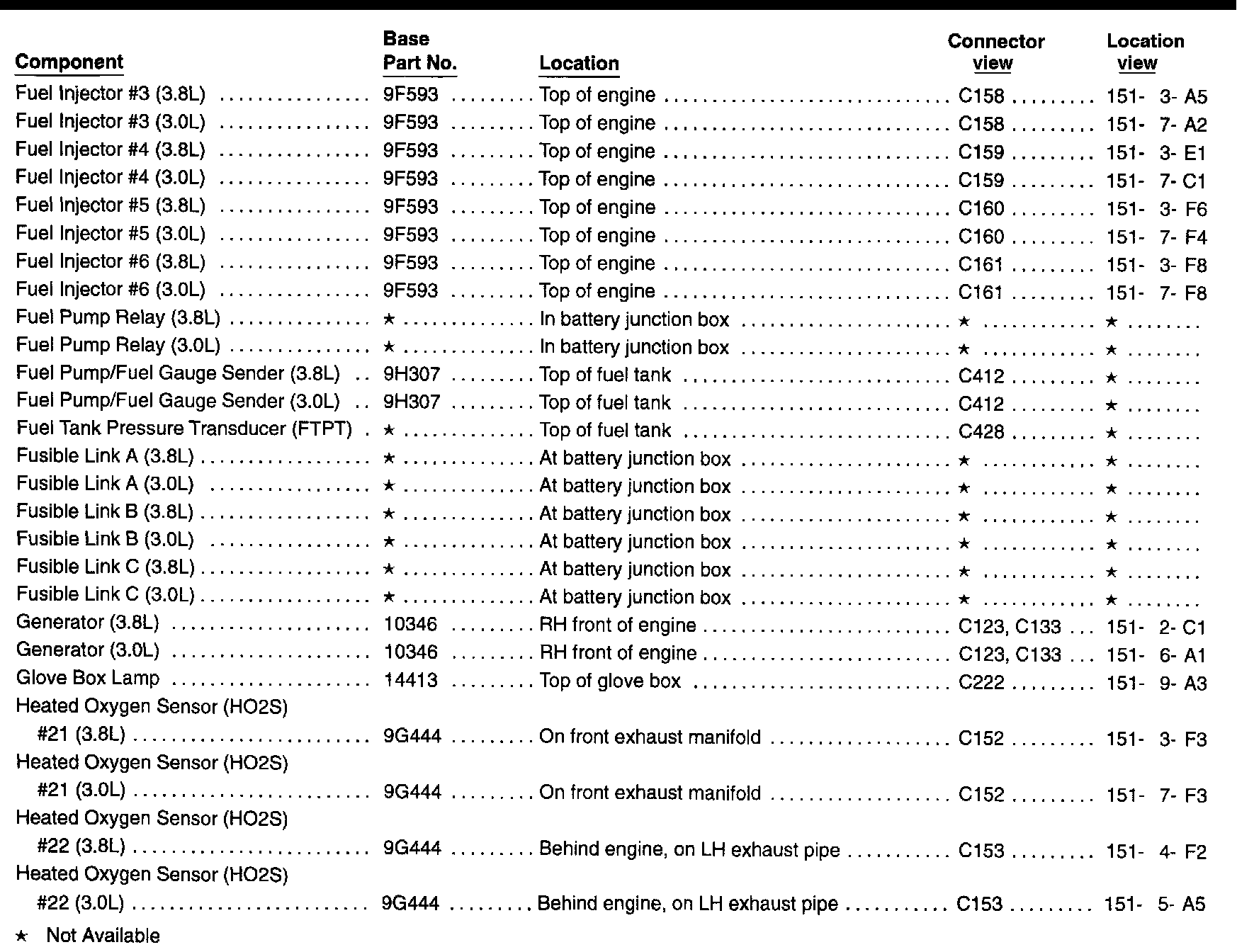

Fu-He:

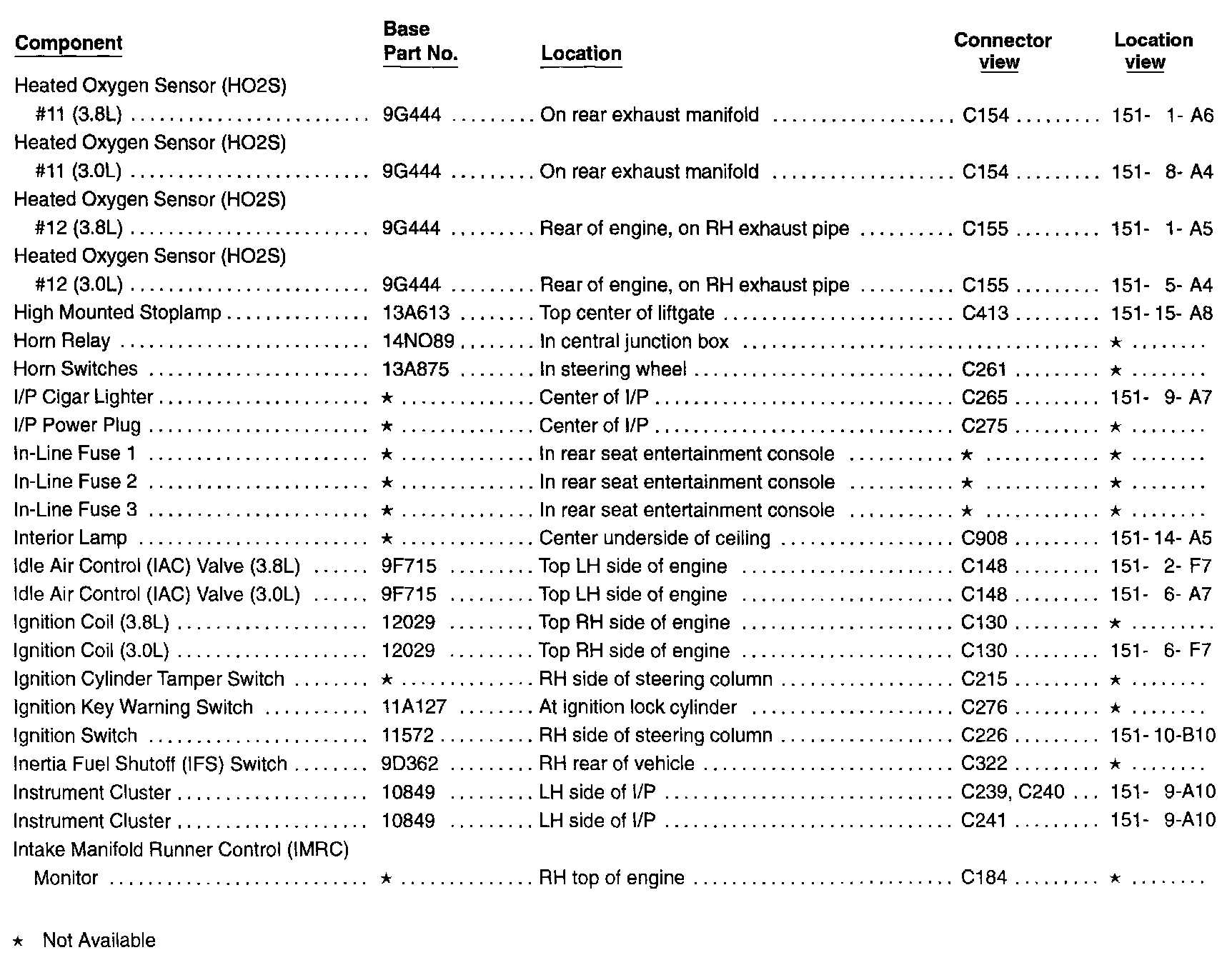

He-In:

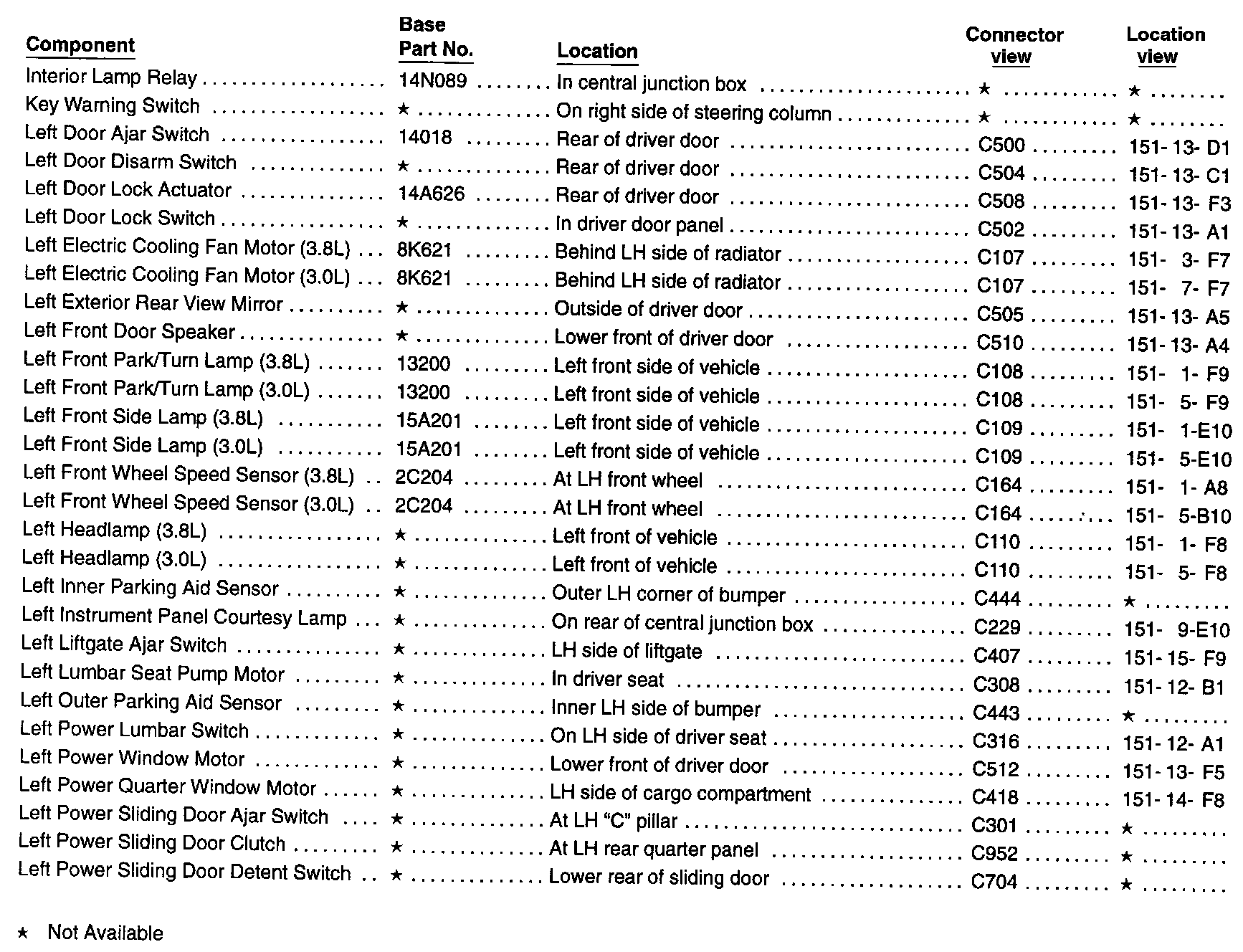

In-Le:

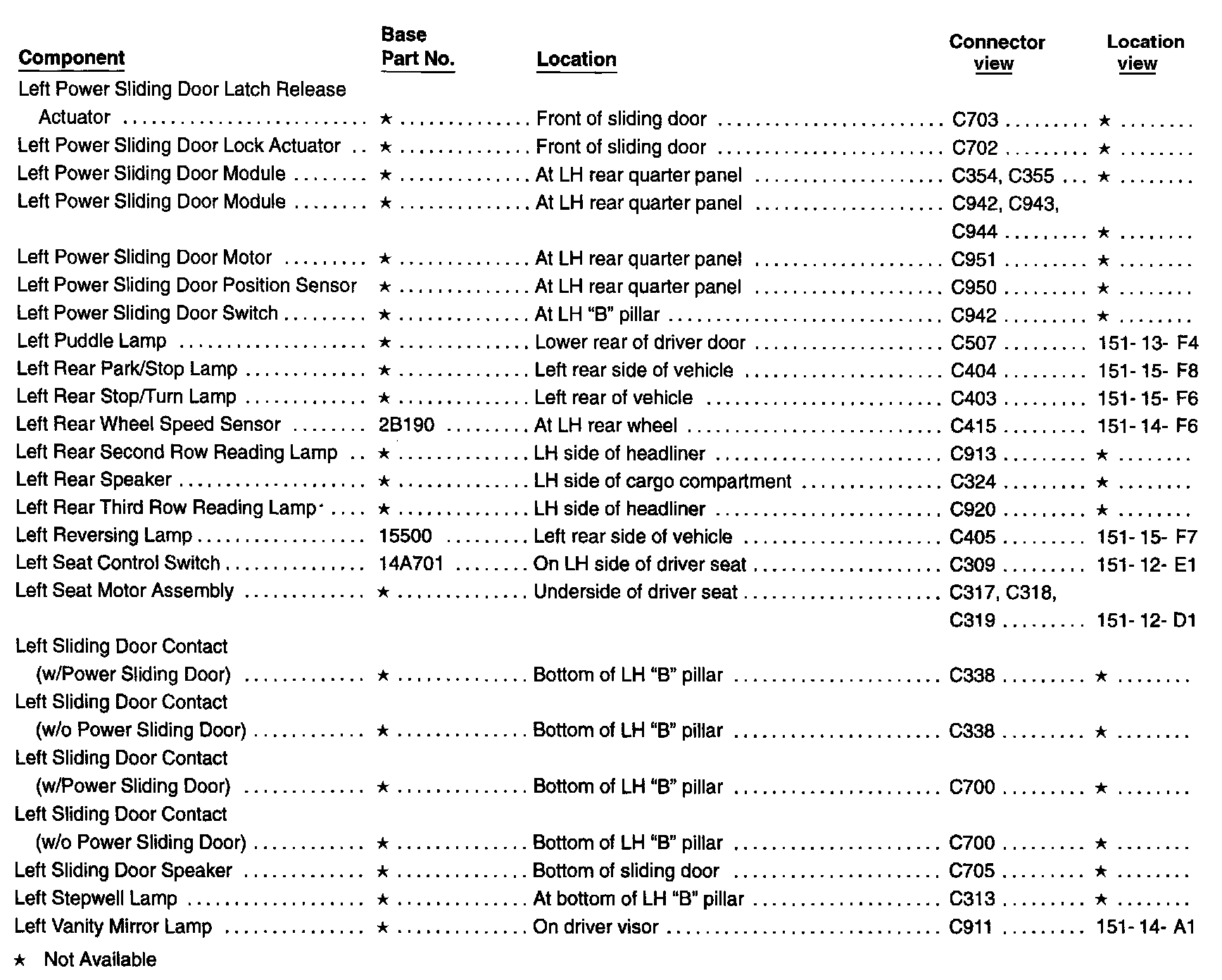

Left Power-Left Vanity:

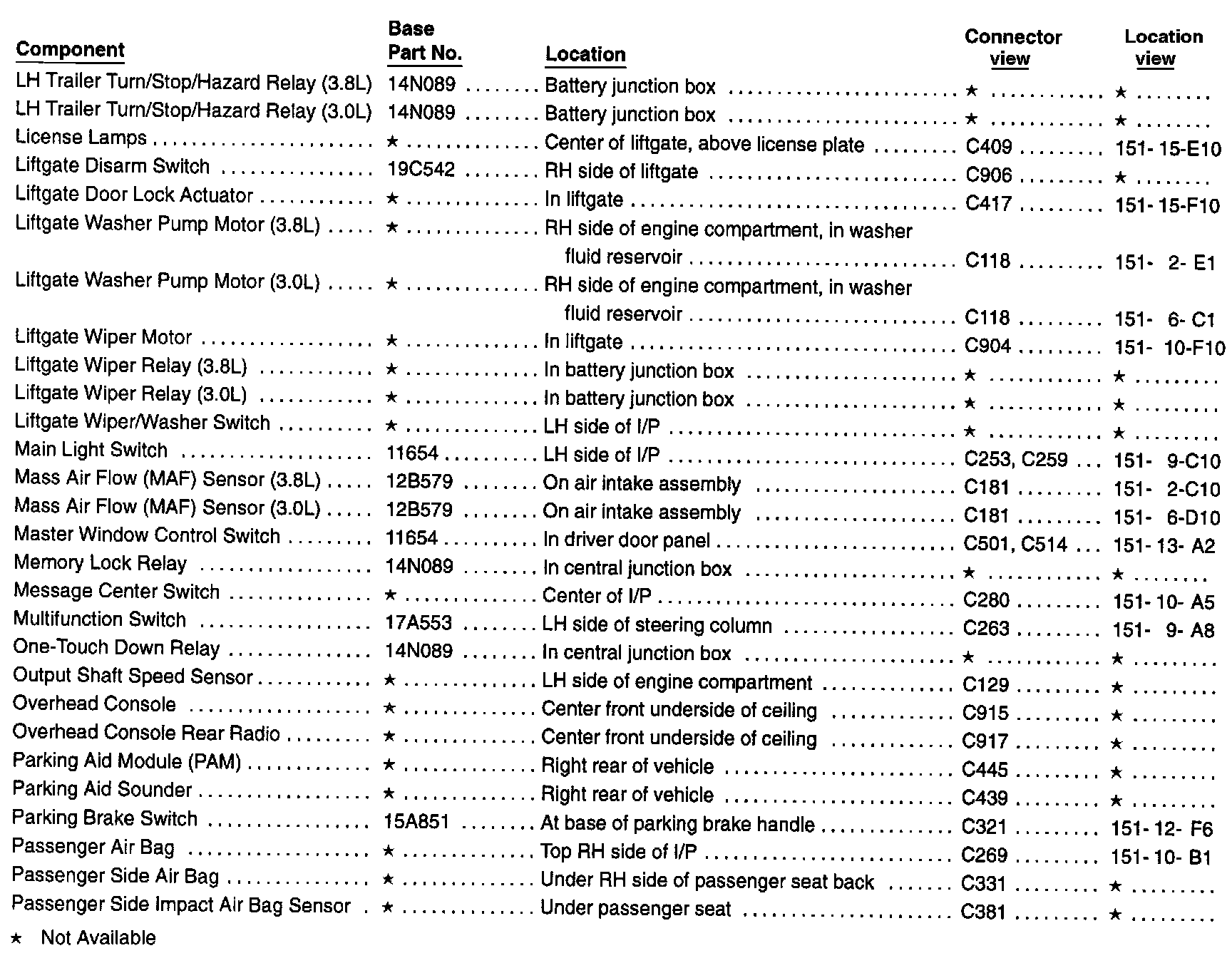

LH-Pa:

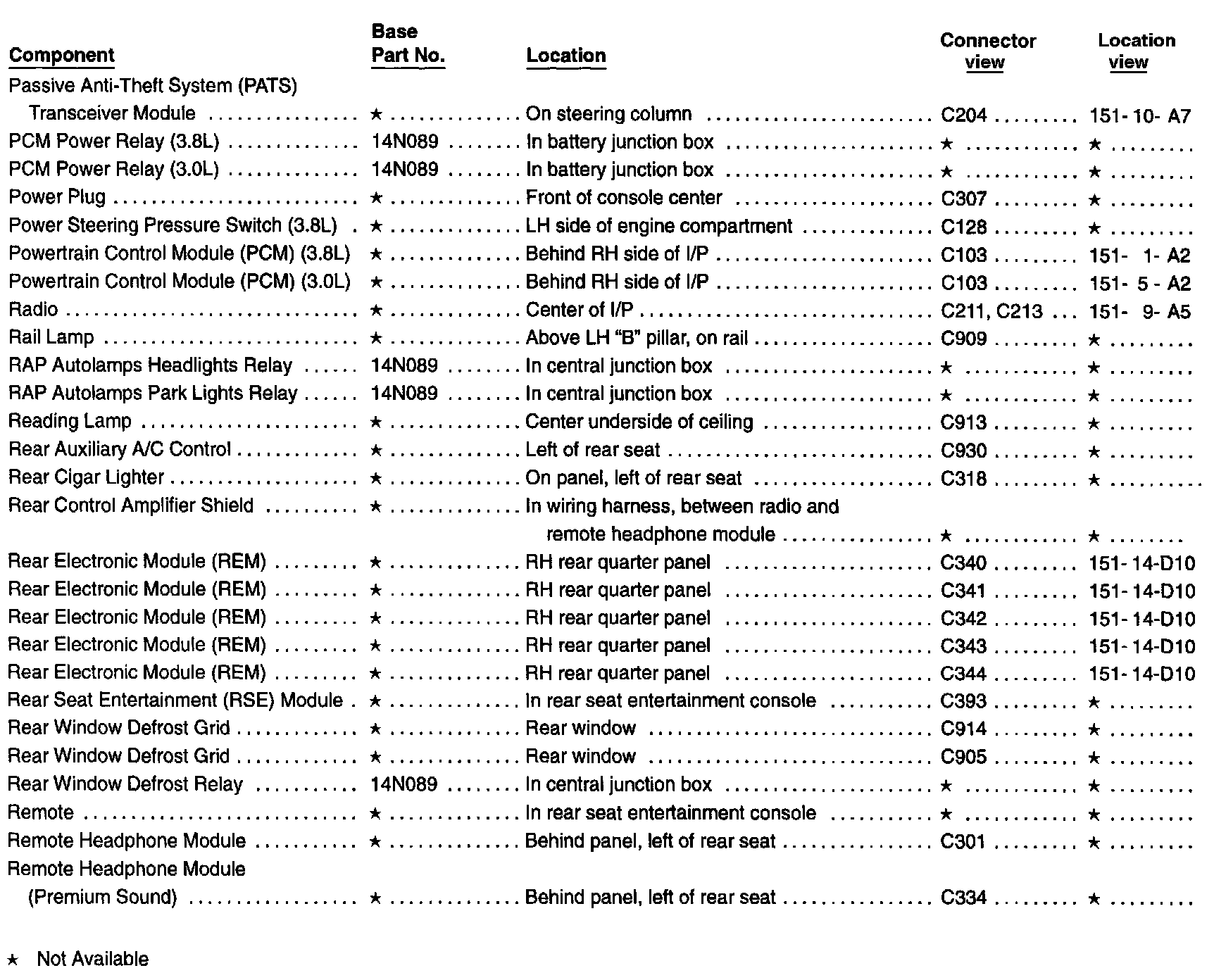

Pa-Re:






Re-Ri:

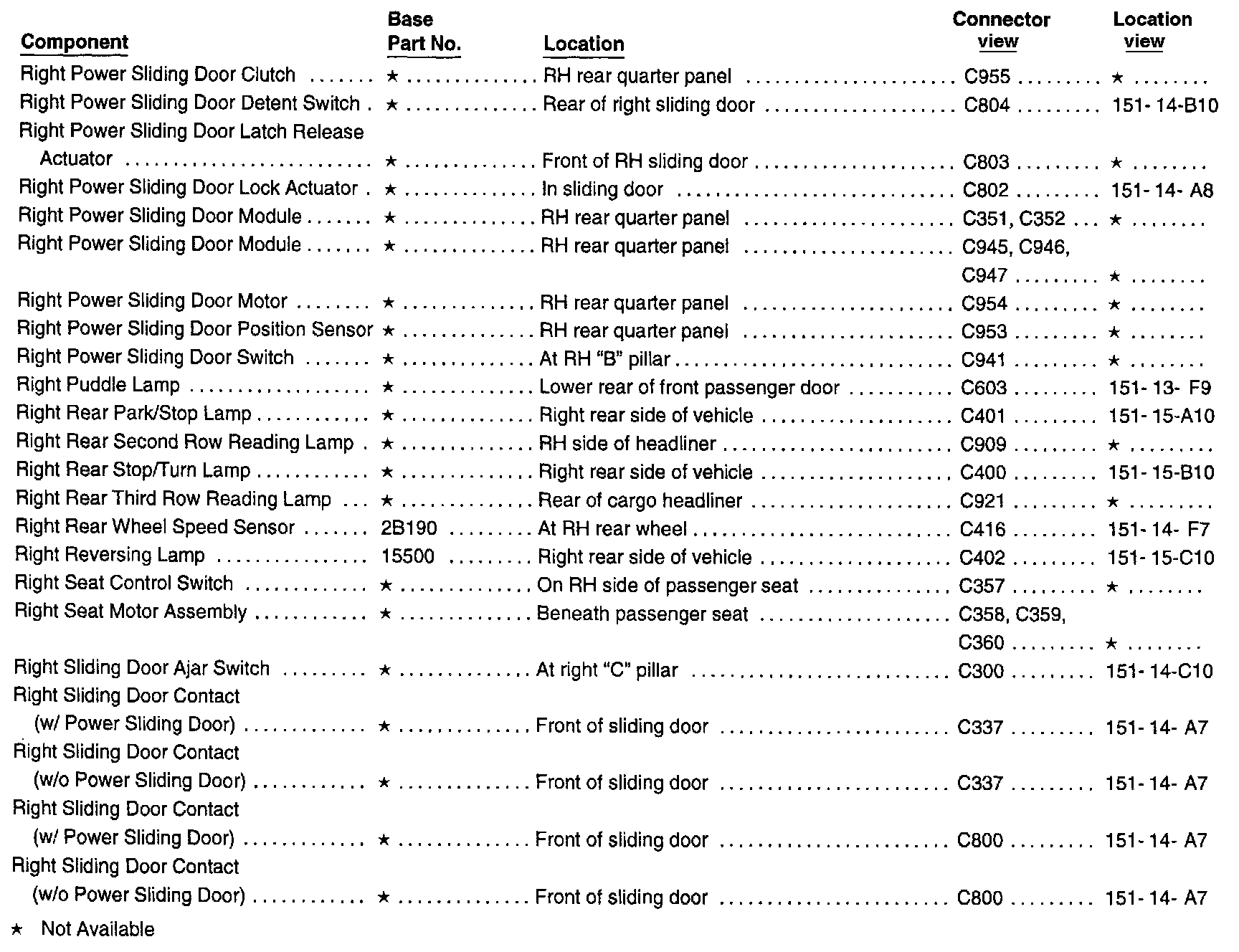

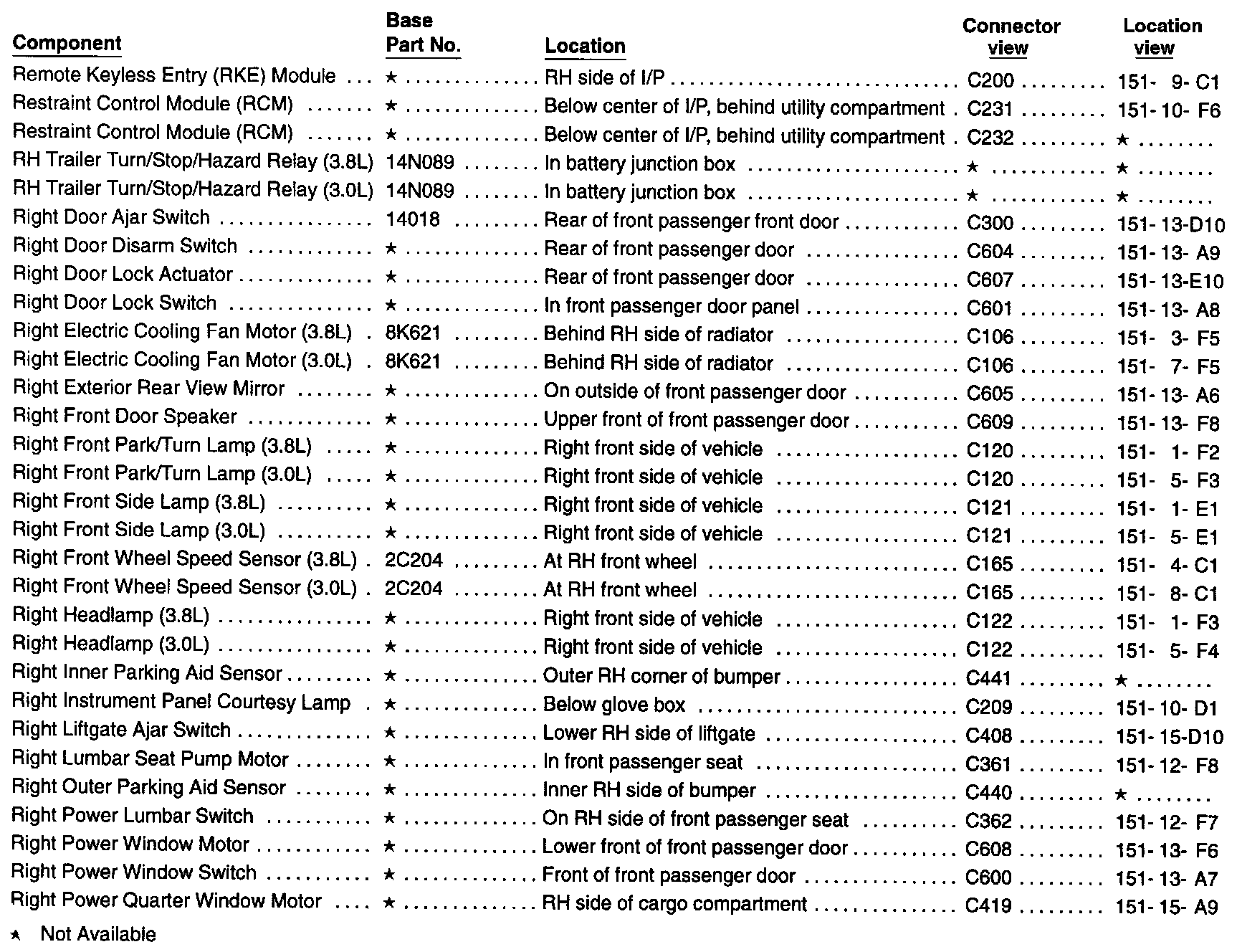

Right Power-Right Sliding:

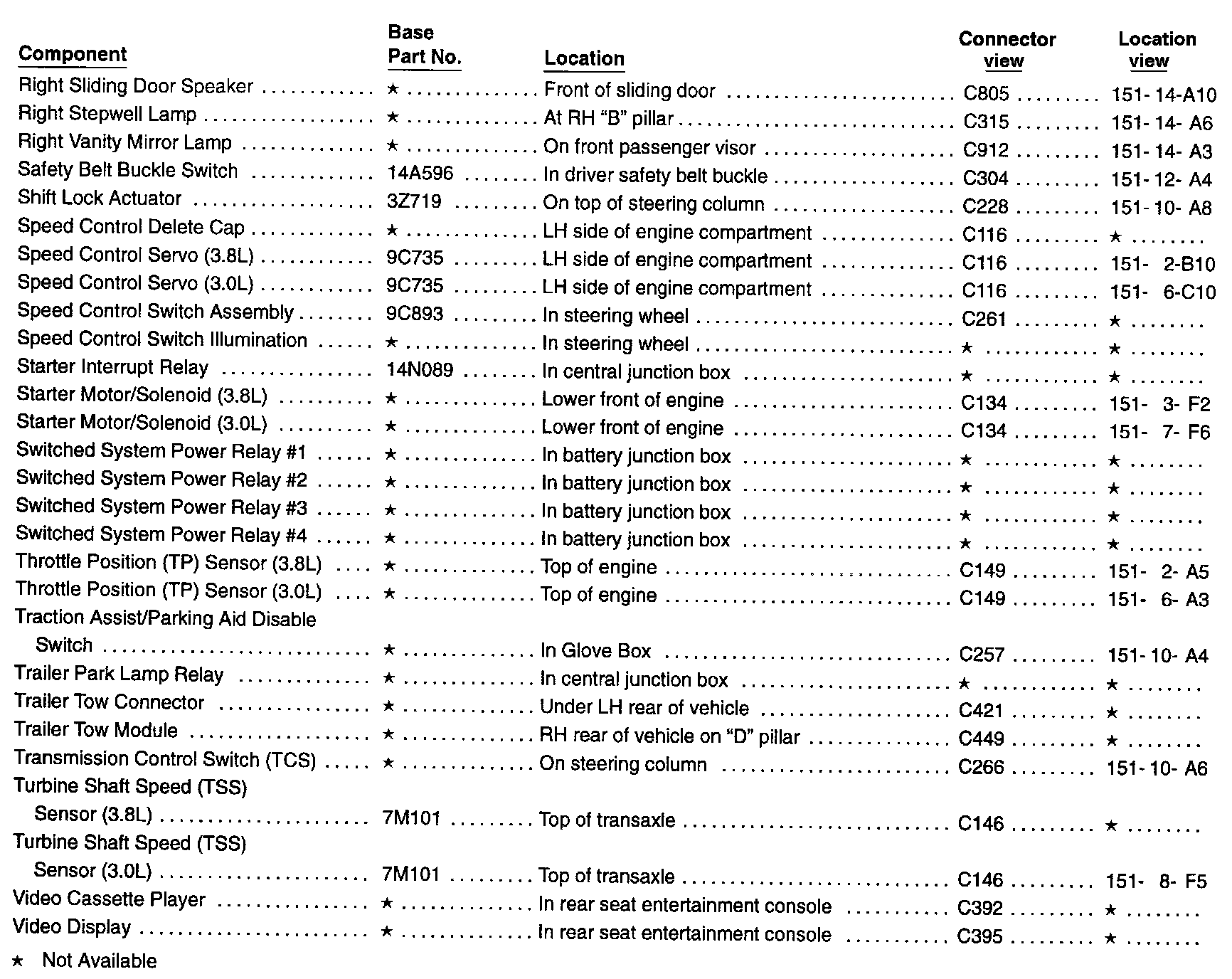

Ri-Vi:

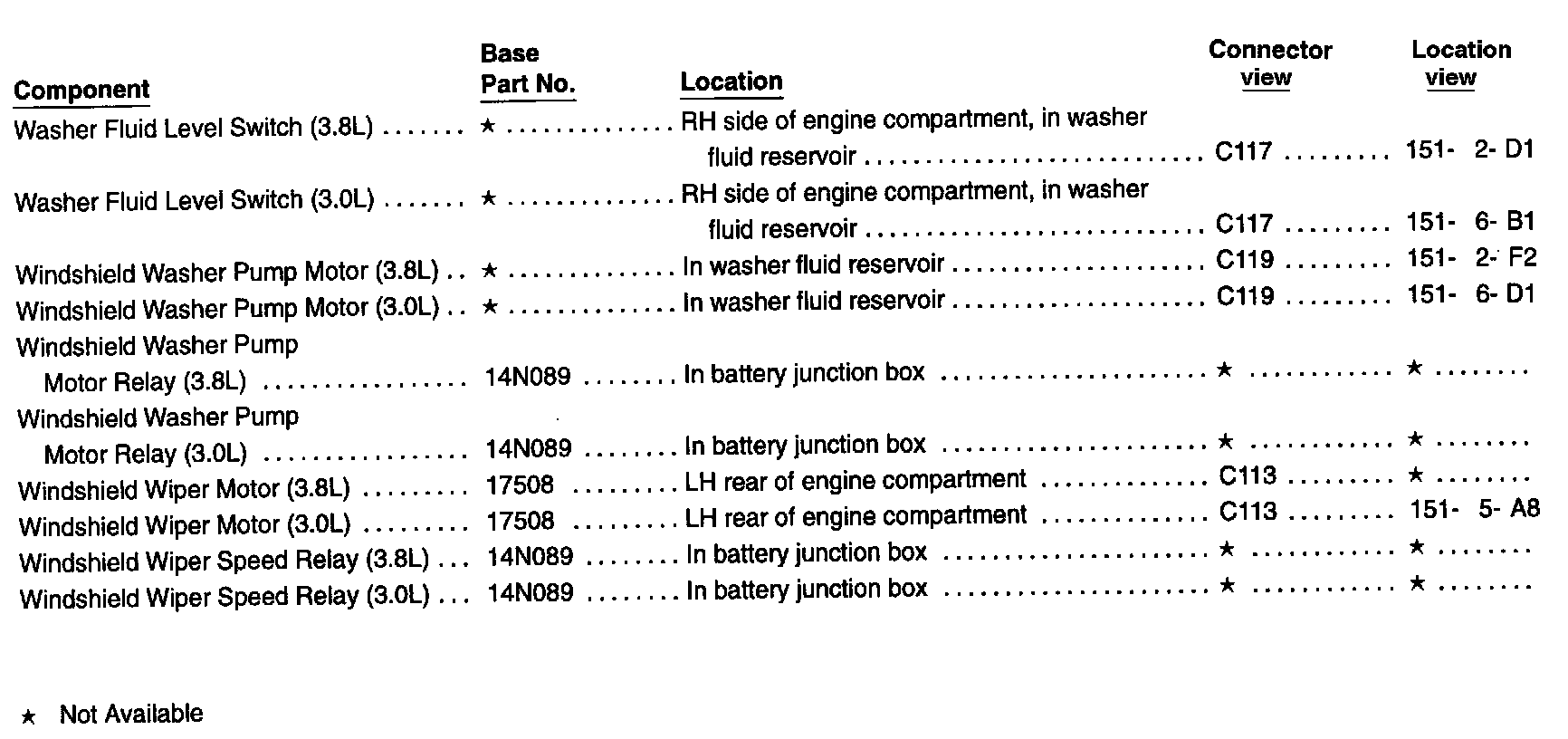

Wa-Wi:
