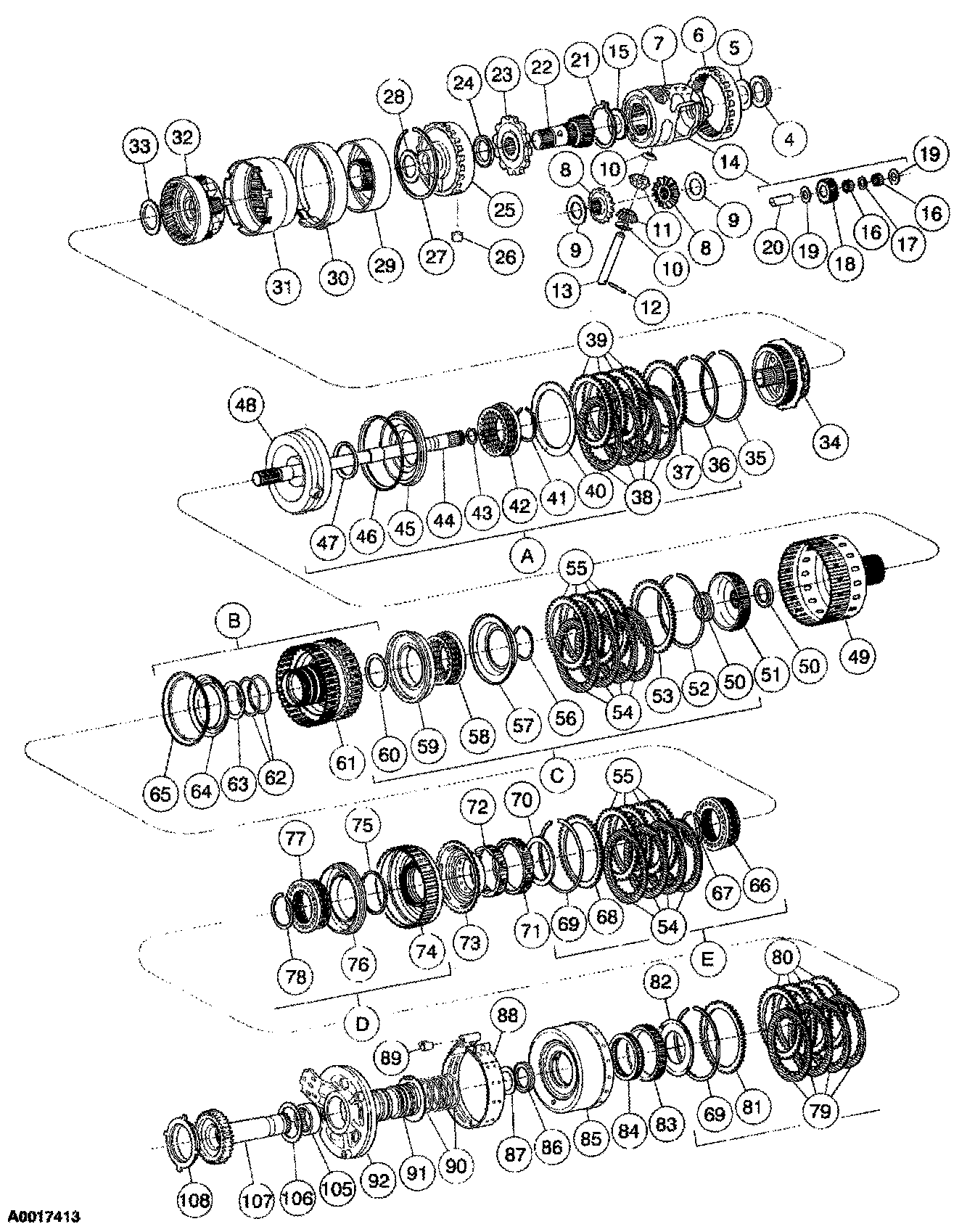

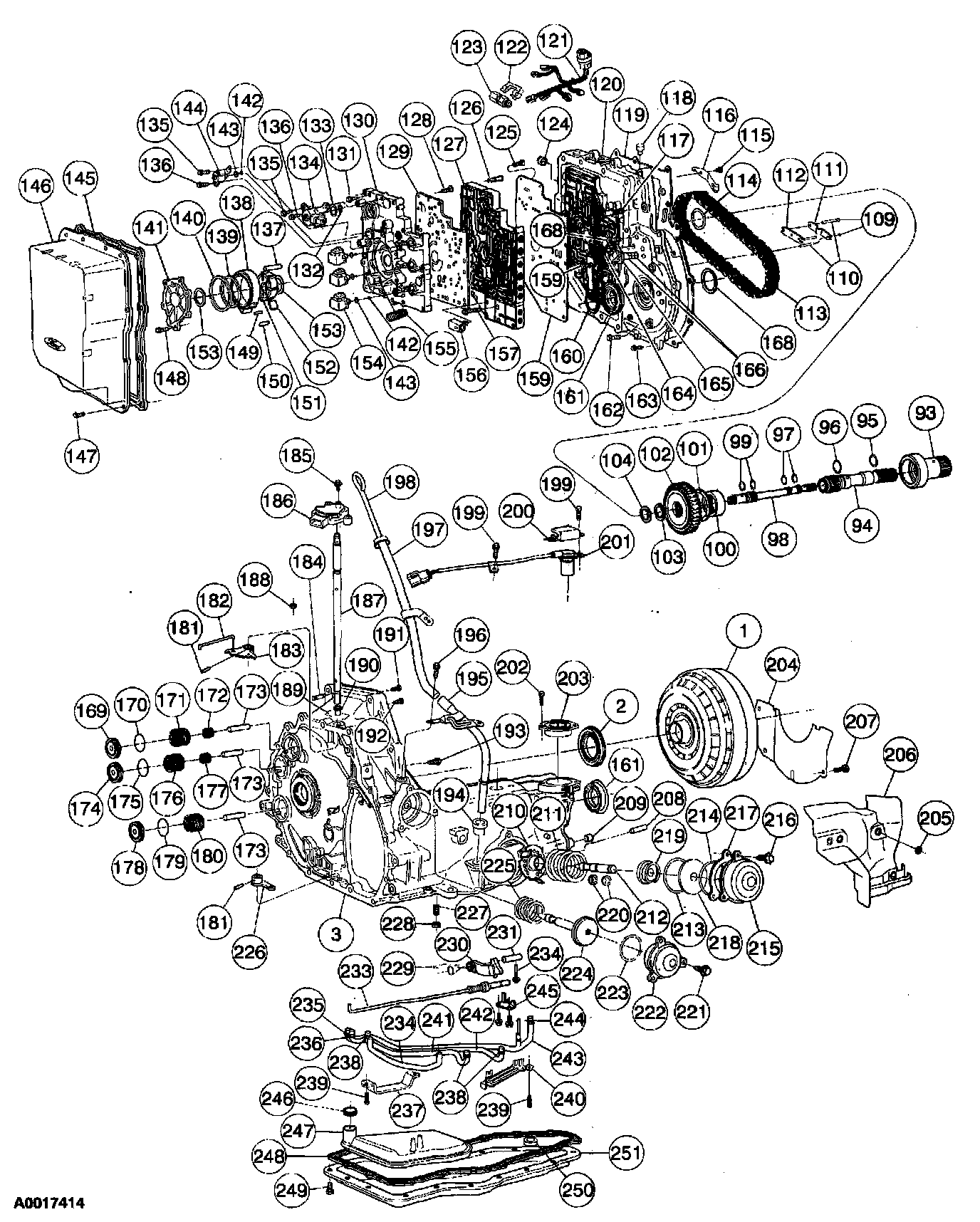

Automatic Transmission/Transaxle





Part 1 of 12





Part 2 of 12





Part 3 of 12





Part 4 of 12





Part 5 of 12





Part 6 of 12





Part 7 of 12





Part 8 of 12





Part 9 of 12





Part 10 of 12





Part 11 of 12





Part 12 of 12
