Fuel Tank Pressure Sensor: Service and Repair

REMOVAL
1. Remove the fuel tank. For additional information, refer to Fuel Delivery and Air Induction.

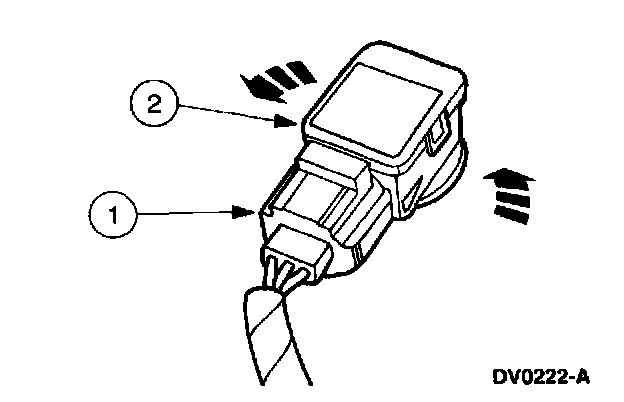

2. Remove the fuel tank pressure sensor.
1 Disconnect the electrical connector.
2 Press down and rotate the fuel tank pressure sensor counterclockwise and remove it from the fuel tank.

CAUTION: The fuel tank pressure sensor must be disengaged from the fuel tank before it can be removed. Failure to do so can cause damage to the fuel tank pressure sensor or the fuel tank.

INSTALLATION
1. To install, reverse the removal procedure.
- Carry out the leak test. For additional information, refer to Evaporative Emission System Leak Test. Component Tests and General Diagnostics
- Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle.
