Battery Junction Box

NOTE: Battery junction box is located on driver side of engine compartment, near battery. See Figure.

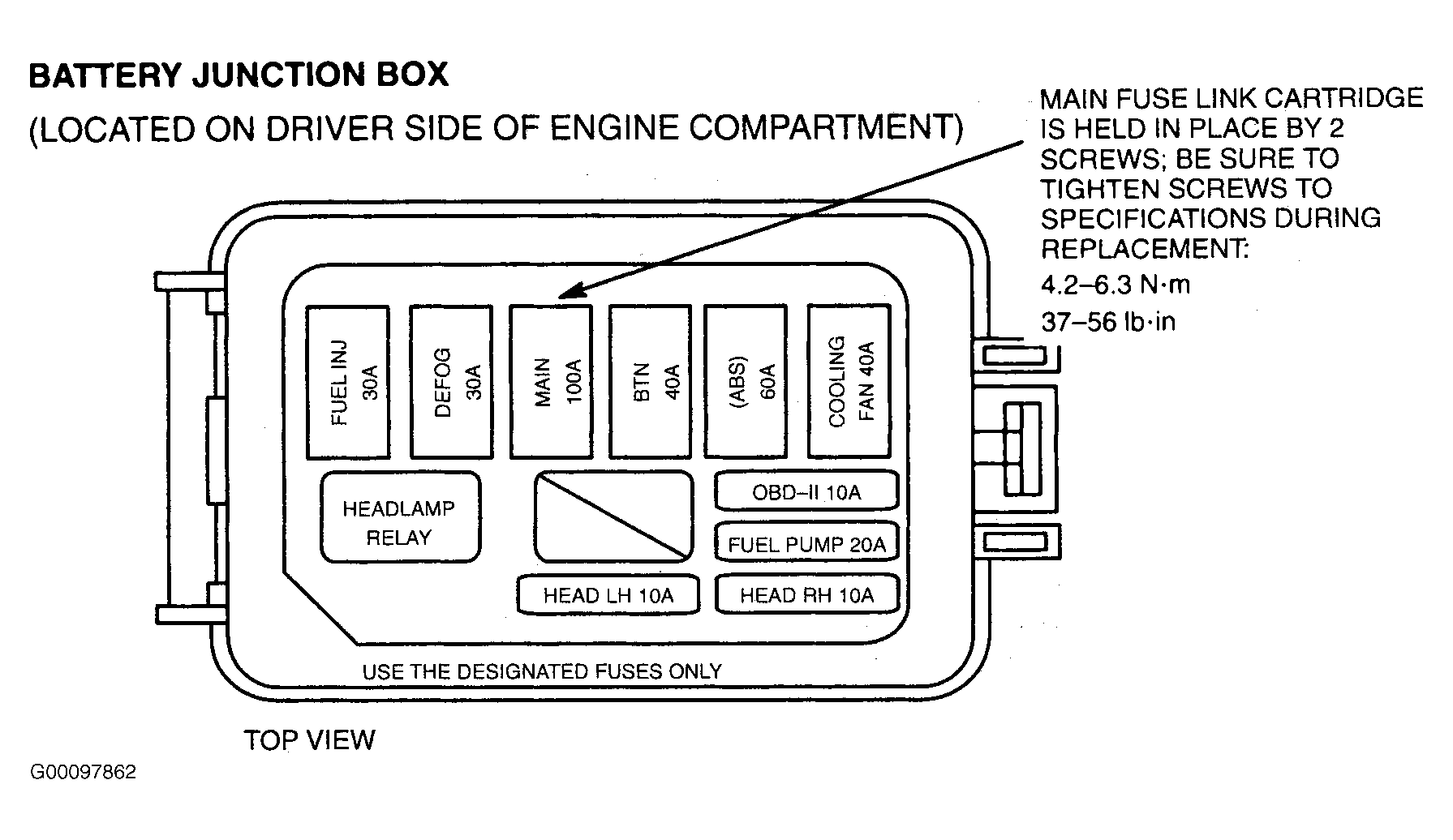

Fig 1: Battery Junction Box Replacement Components With Torque Specifications
G00097862Courtesy of FORD MOTOR CO.

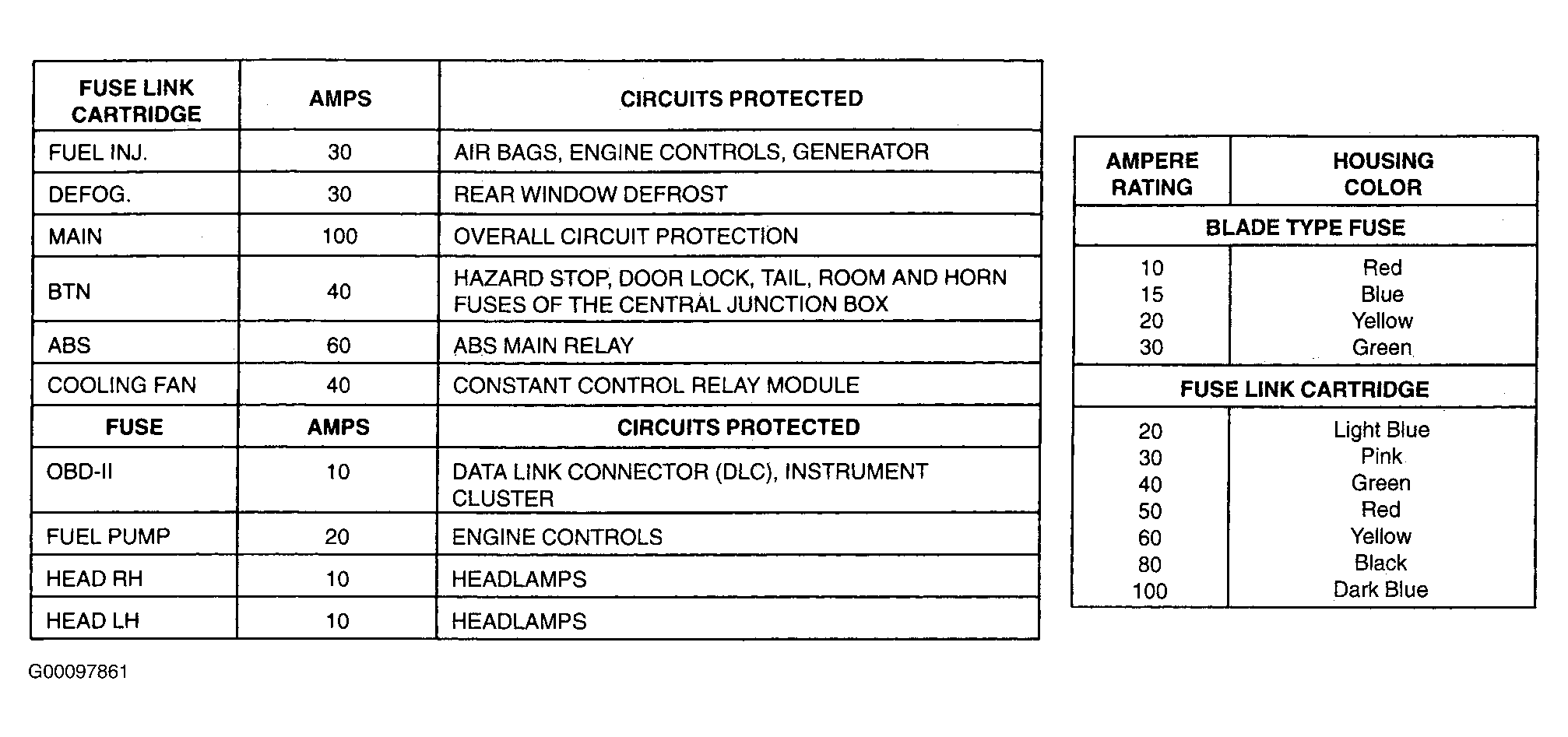

Fig 2: Battery Junction Box Legend
G00097861Courtesy of FORD MOTOR CO.
