Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

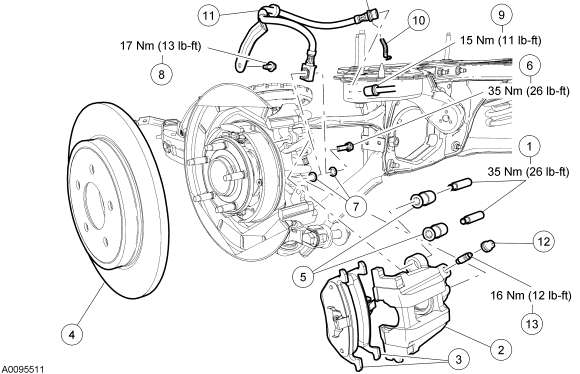

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper guide bolts (2 required) (part of kit 2C588) |
| 2 | 2D048 RH/ 2D049 LH | Brake caliper |
| 3 | 2200 | Brake pads |
| 4 | 2C026 | Brake disc |
| 5 | - | Brake caliper guide bolt bushings (2 required) (part of kit 2C588) |
| 6 | 385116 | Brake caliper jounce hose flow bolt |
| 7 | 2179 | Copper washers (2 required) |
| 8 | W500220 | Brake caliper jounce hose bracket bolt |
| 9 | - | Brake line fitting nut |
| 10 | 2B223 | Brake caliper jounce hose retaining clip |
| 11 | 2C338 RH/ 2C339 LH | Brake caliper jounce hose |
| 12 | - | Bleeder screw cap (part of kit 2C563) |
| 13 | - | Bleeder screw (part of kit 2C563) |
- For additional information, refer to the following procedures.
