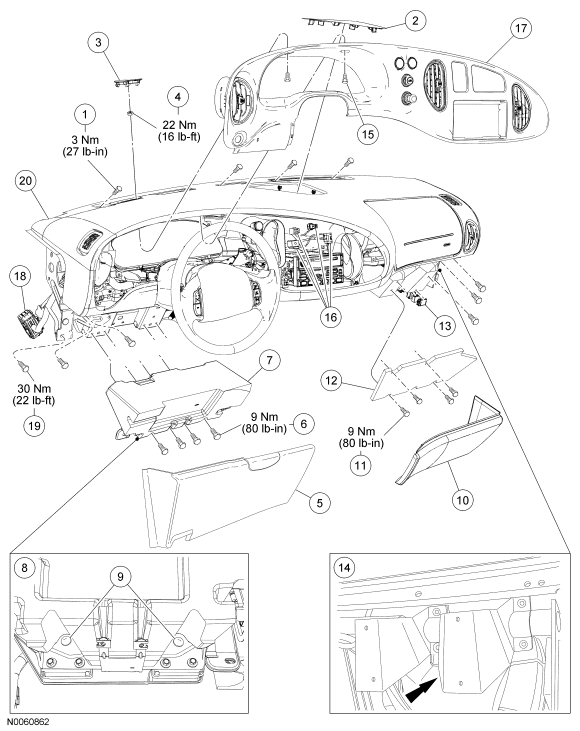

Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Instrument panel cowl top bolt (4 required) |
| 2 | 043C54 | Upper center instrument panel access panel |
| 3 | 19K357A | Upper access panel |
| 4 | - | Nut |
| 5 | 04459 | Steering column opening cover |
| 6 | N808401 | Instrument panel LH knee bolster bolt (4 required) |
| 7 | 043C74 | Instrument panel LH knee bolster |
| 8 | 017A28 | Instrument panel LH dash brace |
| 9 | - | Pushpin retainers (2 required) |
| 10 | 04338 | Instrument panel finish panel |
| 11 | N808401 | Instrument panel RH - knee bolster bolt (4 required) |
| 12 | 045B86 | Instrument panel RH - knee bolster |
| 13 | 14401 | Electrical connectors |
| 14 | 044F48 | Instrument panel RH dash brace |
| 15 | - | Instrument cluster finish panel screw (2 required) |
| 16 | - | Instrument cluster finish panel electrical connectors (part of 14401) |
| 17 | 044D70 | Instrument cluster finish panel |
| 18 | 14401 | Instrument panel bulkhead connector |
| 19 | N808401 | Instrument panel bolts (4 required) |
| 20 | 04320 | Instrument panel |
- For additional information, refer to the procedures.
