Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

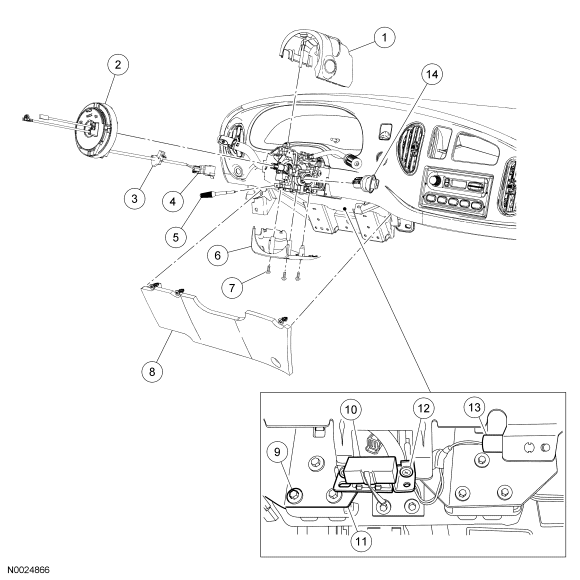

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 14A644 | Clockspring |
| 3 | - | Clockspring wiring retaining clip (2 required) (part of 14A644) |
| 4 | - | Clockspring electrical connector (part of 14A644) |
| 5 | 3F609 | Tilt wheel shank handle |
| 6 | 3533 | Lower steering column shroud |
| 7 | - | Lower steering column shroud screw (3 required) |
| 8 | 44F08 | Steering column opening lower finish panel |
| 9 | - | Steering column opening lower finish panel reinforcement bolt (6 required) |
| 10 | - | Data link connector (DLC) (part of 14401) |
| 11 | - | Steering column opening lower finish panel reinforcement |
| 12 | - | DLC screw (2 required) |
| 13 | - | Electrical connector (part of 14401) |
| 14 | - | Ignition switch lock cylinder |
