Driver Air Bag Module: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

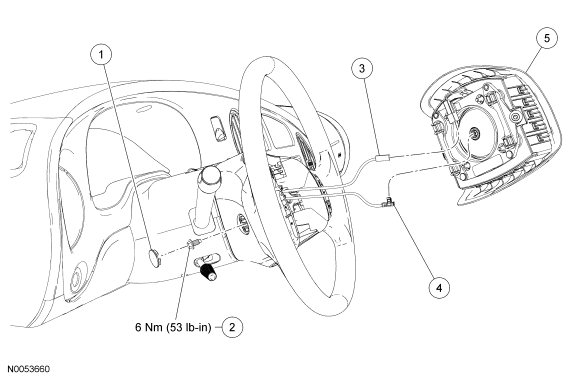

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specification
GF0011563Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3L518 Driver air bag module bolt caps (2 required)
2 - Driver air bag module bolts (2 required)
3 - Horn electrical connector (part of 14A664)
4 - Driver air bag module electrical connector (part of 14A664)
5 043B13 Driver air bag module
