Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

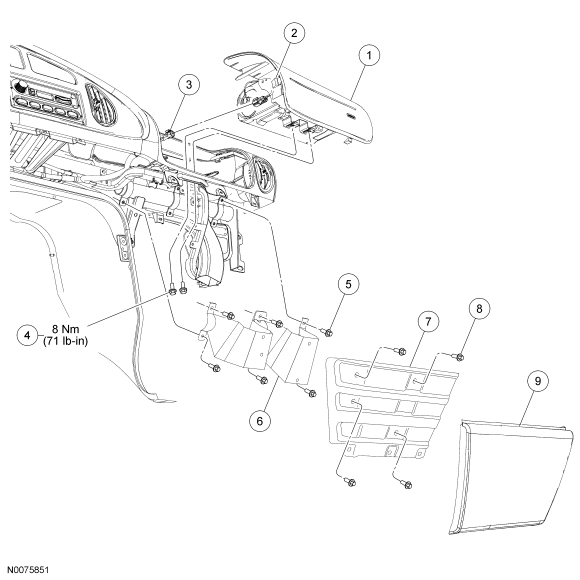

| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | - | Passenger air bag module deployment door clip (part of 044A74) (2 required) |
| 3 | - | Passenger air bag module electrical connector (part of 14401) |
| 4 | W505422 | Passenger air bag module bolt (2 required) |
| 5 | - | RH lower instrument panel reinforcement mounting bracket bolts (6 required) |
| 6 | 044F48 | RH lower instrument panel reinforcement mounting bracket |
| 7 | - | RH lower instrument panel reinforcement |
| 8 | - | RH lower instrument panel reinforcement bolt (4 required) |
| 9 | 044D70 | RH lower instrument trim panel |
