Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

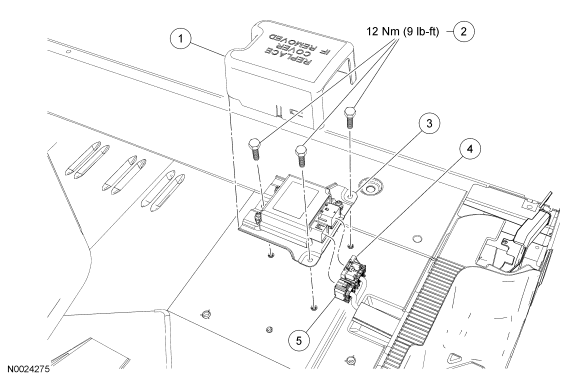

Fig 1: Exploded View Of Restraints Control Module RCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14B568	Restraints control module (RCM) cover
2	W707935	RCM bolts (3 required)
3	14B321	RCM
4	-	RCM large connector (part of 14A200)
5	-	RCM small connector (part of 14A200)
