Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the safety canopy and cause serious personal injury or death.
NOTE: When installing a new restraints control module (RCM), it is necessary to carry out programmable module installation (PMI). System failure may occur if PMI is not carried out. For additional information, refer to MODULE CONFIGURATION article.
NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE: The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
  1. Remove the driver seat. For additional information, refer to SEATING article.
    2. NOTE: Care must be taken to prevent damage to the restraints control module (RCM) cover. If the RCM cover is damaged, a new cover must be installed.
  2. Remove the RCM cover.
    • Pry outward on each side of the cover to disengage the clips.
    • Slide the cover rearward and remove.
    3. Fig 1: Removing RCM Cover
    GF0011575Courtesy of FORD MOTOR CO.
  3. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
    2. Pull out and disconnect the large RCM electrical connector.

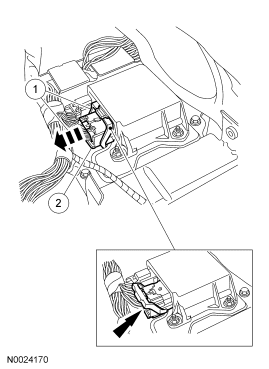

    4. Fig 2: Disconnecting RCM Electrical Connectors
    GF0011576Courtesy of FORD MOTOR CO.
  4. Disconnect the small RCM electrical connector.
  5. Remove the 3 bolts and the RCM and bracket assembly.
