Driveshaft - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

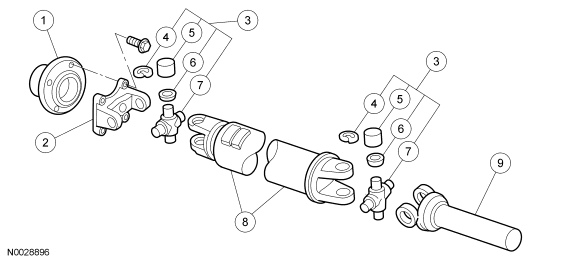

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Driveshaft rear axle pinion flange |
| 2 |
4866 |
Driveshaft flange yoke |
| 3 |
4635 |
U-joints |
| 4 |
- |
Snap rings (part of 4635) |
| 5 |
- |
Bearing cups (part of 4635) |
| 6 |
- |
Seals (part of 4635) |
| 7 |
- |
Spiders (part of 4635) |
| 8 |
4602 |
Driveshaft |
| 9 |
4841 |
Driveshaft slip-yoke |

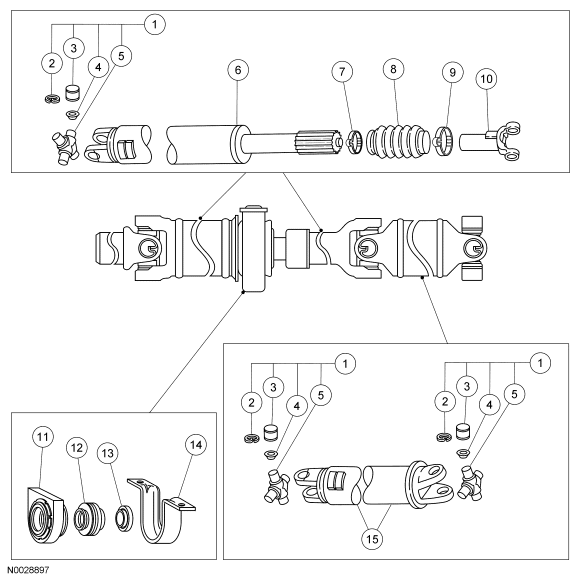

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
4635 |
U-joints |
| 2 |
- |
Snap rings (part of 4635) |
| 3 |
- |
Bearing cups (part of 4635) |
| 4 |
- |
Seals (part of 4635) |
| 5 |
- |
Spiders (part of 4635) |
| 6 |
4602 |
Driveshaft |
| 7 |
4K227 |
Driveshaft slip-yoke boot clamp (large) |
| 8 |
4421 |
U-joint slip-yoke boot |
| 9 |
4K227 |
Driveshaft slip-yoke boot clamp (small) |
| 10 |
4841 |
Driveshaft slip-yoke |
| 11 |
- |
Rubber insulator (part of 4800) |
| 12 |
- |
Bearing (part of 4800) |
| 13 |
- |
Bearing shield (part of 4800) |
| 14 |
4A449 |
Driveshaft center bearing bracket |
| 15 |
4602 |
Driveshaft |
- Driveshaft differ in length, diameter, material, number of pieces and the type of slip yokes to accommodate various wheel bases and powertrain combinations.
