Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

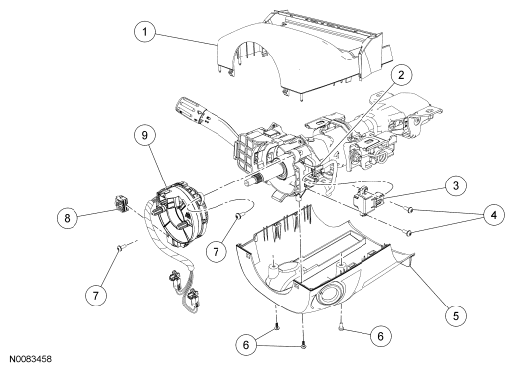

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 3 | 3F818 | Steering wheel rotation sensor |
| 4 | W506942 | Steering wheel rotation sensor screws (2 required) |
| 5 | 3K512 | Lower steering column shroud |
| 6 | - | Lower steering column shroud screws (3 required) (part of 3K512) |
| 7 | W506942 | Clockspring screws (2 required) |
| 8 | - | Clockspring electrical connector (part of 14401) |
| 9 | 14A664 | Clockspring |
