Driver Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

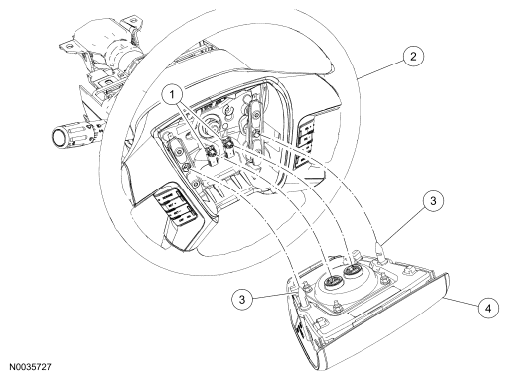

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Driver air bag module electrical connectors (part of 14A664) |
| 2 |
3600 |
Steering wheel |
| 3 |
- |
Driver air bag module locking pins (part of 43B13) |
| 4 |
43B13 |
Driver air bag module |
