Steering Column Multifunction Switch: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

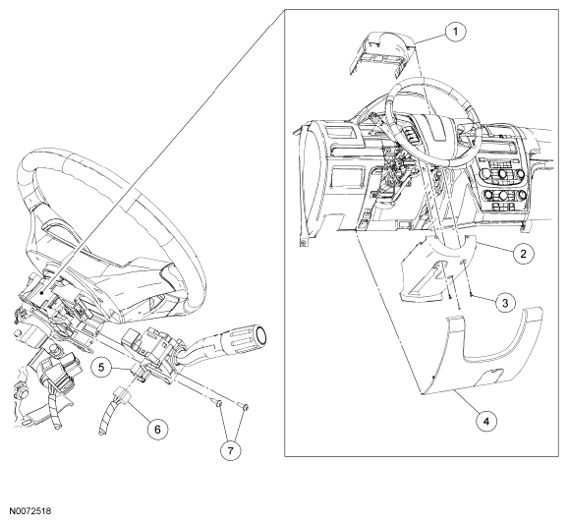

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 3K512 | Lower steering column shroud |
| 3 | W707658 | Lower steering column shroud screw (3 required) |
| 4 | 5404459 | Steering column opening cover |
| 5 | 14K147 | Multifunction switch |
| 6 | - | Multifunction switch electrical connector (part of 14401) |
| 7 | W503521 | Multifunction switch screws (2 required) |
