Piston Diameter
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to appropriate article in Engine
for the specification.

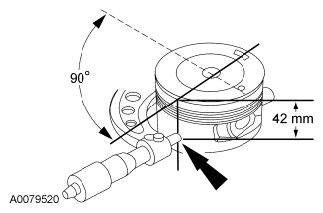

- Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated.
Courtesy of FORD MOTOR CO.
