Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

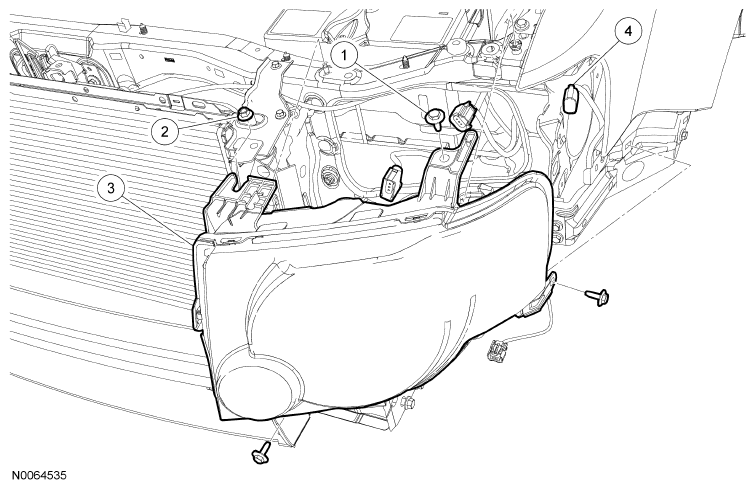

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp assembly bolts (3 required) |
| 2 |
- |
Headlamp assembly nut |
| 3 |
13008 |
Headlamp assembly |
| 4 |
- |
Electrical connectors (part of 14290) |
