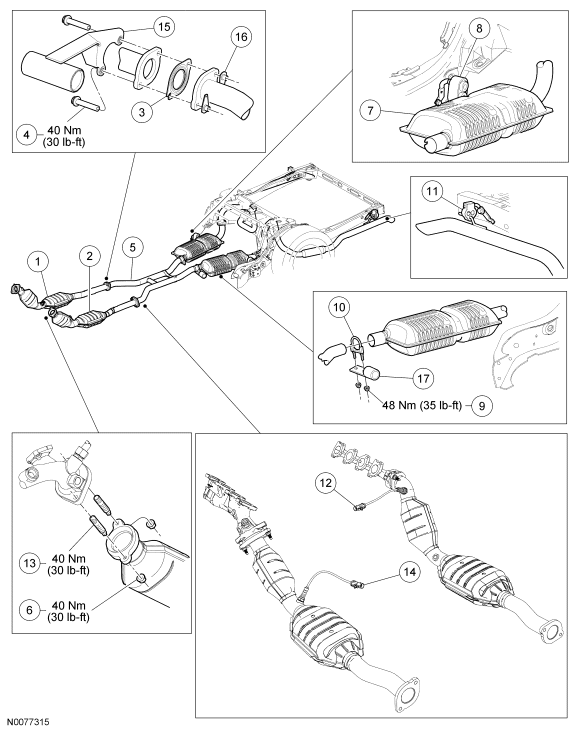

Exhaust System - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | Catalytic converter, RH |
| 2 | 5E214 | Catalytic converter, LH |
| 3 | 5F263 | Gasket |
| 4 | 56143 | Catalytic converter-to-exhaust inlet pipe bolt (2 required) |
| 5 | 5246 | Exhaust inlet pipe |
| 6 | W705443 | Catalytic converter-to-exhaust manifold nut (2 required) |
| 7 | 5C258 | Muffler |
| 8 | 5A262 | Muffler isolator and bracket |
| 9 | N802771 | Clamp nut (2 required) |
| 10 | N802771 | Clamp |
| 11 | 5256 | Tailpipe isolator and bracket |
| 12 | 14A464 | Heated oxygen sensor (HO2S) electrical connector |
| 13 | W701732 | Catalytic converter-to-exhaust manifold stud (2 required) |
| 14 | 14A464 | Catalyst monitor sensor electrical connector |
| 15 | 5F240 | Damper |
| 16 | - | Flagnut (2 required) |
| 17 | - | Exhaust damper (if equipped) |
- For additional information, refer to the appropriate procedures.
