Anti-Lock Brake System (ABS) Module: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

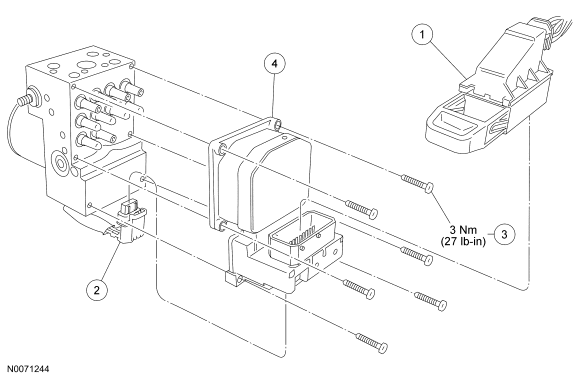

| Item |
Part Number |
Description |
| 1 |
- |
ABS module electrical connector (part of 14290) |
| 2 |
- |
Hydraulic control unit (HCU) pump motor electrical connector (part of 14290) |
| 3 |
2C331 |
ABS module screw (6 required) |
| 4 |
2C219 |
ABS module |
