Driver Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

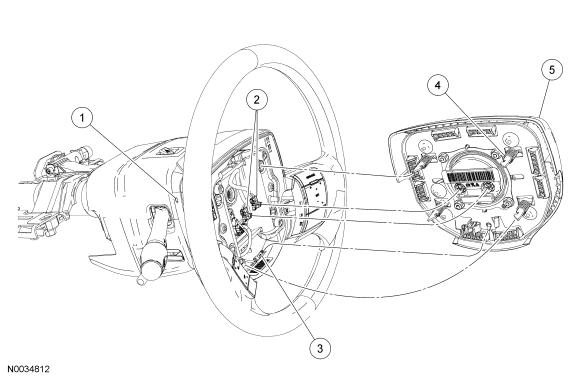

| Item |
Part Number |
Description |
| 1 |
- |
Steering wheel rear cover access hole (4 required) (part of 3600) |
| 2 |
- |
Driver air bag module electrical connectors (part of 14A664) |
| 3 |
- |
Horn electrical connector |
| 4 |
- |
Driver air bag module locking pin (part of 043B13) |
| 5 |
043B13 |
Driver air bag module |
