Front Impact Severity Sensor: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

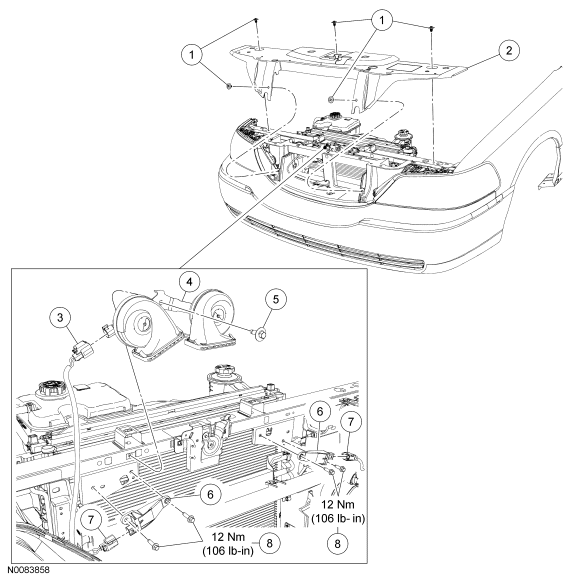

| Item | Part Number | Description |
|---|---|---|
| 1 | W705956 | Pin-type retainers (5 required) |
| 2 | 8C299 | Radiator opening cover assembly |
| 3 | - | Horn electrical connector (part of 14290) (RH only) |
| 4 | 13832 | Horn and bracket assembly (RH only) |
| 5 | W503923 | Horn and bracket assembly bolt (RH only) |
| 6 | 14B006 | Front impact severity sensors |
| 7 | - | Front impact severity sensor electrical connectors (part of 14290) |
| 8 | W707935 | Front impact severity sensor bolts (2 required) |
