Occupant Classification Sensor: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

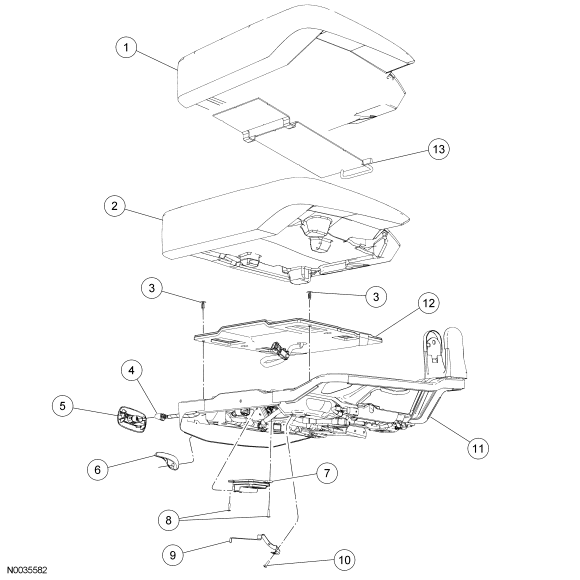

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | - | Seat cushion pad |
| 3 | - | Pin-type retainers (2 required) |
| 4 | - | Power lumbar switch electrical connector (part of 14A699) |
| 5 | 14A706 | Power lumbar switch and bezel |
| 6 | 61198 | Seat backrest recliner handle |
| 7 | - | Occupant Classification System Module (OCSM) |
| 8 | - | OCSM rivets (2 required) |
| 9 | - | OCSM bracket |
| 10 | - | OCSM bracket rivet |
| 11 | 63100 | Seat cushion pan |
| 12 | - | Occupant Classification Sensor (OCS) (bladder and hose with pressure sensor) |
| 13 | - | Heated seat element electrical connector (if equipped) (part of 14D698) |

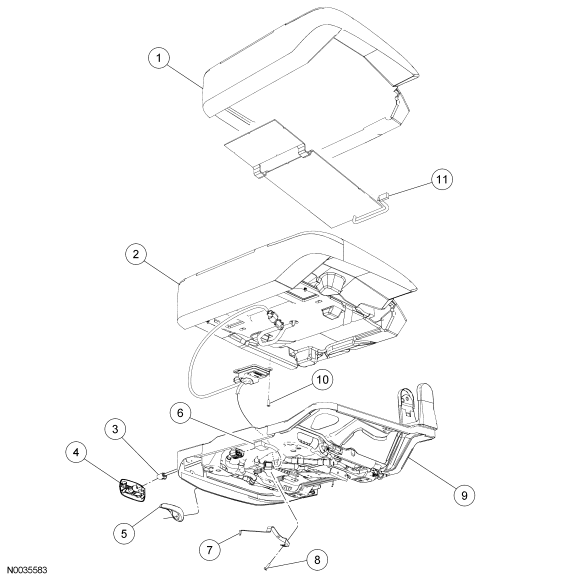

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | 632A22 | Occupant Classification Sensor (OCS) system service kit (foam pad, bladder, hose with pressure sensor, Occupant Classification System Module (OCSM) and wiring harness) |
| 3 | - | Power lumbar switch electrical connector (part of 14A699) |
| 4 | 14A706 | Power lumbar switch and bezel |
| 5 | 61198 | Seat backrest recliner handle |
| 6 | - | OCS service kit electrical connector (part of service kit 632A22) |
| 7 | - | OCSM bracket |
| 8 | - | OCSM bracket rivet |
| 9 | 63100 | Seat cushion pan |
| 10 | - | OCSM rivet (2 required) |
| 11 | - | Heated seat element electrical connector (if equipped) (part of 14D698) |
