Restraints Control Module (RCM): Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

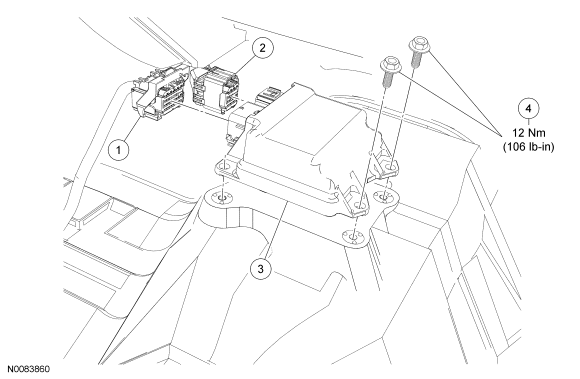

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Large Restraints Control Module (RCM) connector (part of 14A005) |
| 2 | - | Small RCM connector (part of 14401) |
| 3 | 14B321 | RCM |
| 4 | W707935 | RCM bolts (3 required) |
