Bearing Inspection

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect bearings for the following defects:
    1. Cratering - fatigue failure
    2. Spot polishing - incorrect seating
    3. Imbedded dirty engine oil
    4. Scratching - dirty engine oil
    5. Base exposed - poor lubrication
    6. Both edges worn - journal damaged
    7. One edge worn - journal tapered or bearing not seated

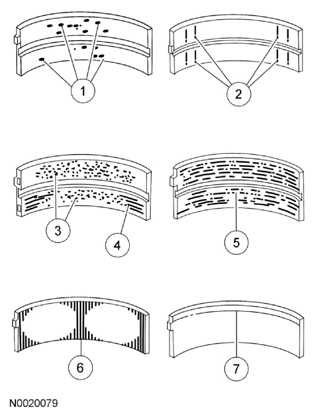

      Fig 1: Identifying Defected Bearings
      G07780492Courtesy of FORD MOTOR CO.
