Piston Diameter
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the
appropriate article in ENGINE MECHANICAL - 2.5L (EXCEPT HYBRID)
, ENGINE MECHANICAL - 2.5L - (HYBRID)
, ENGINE MECHANICAL - 3.0L (4V)
or ENGINE MECHANICAL - 3.5L
for the specification.

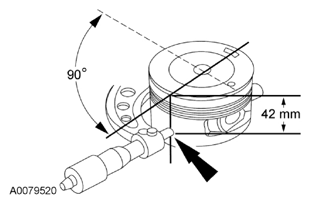

- Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated.
