Occupant Classification Sensor: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

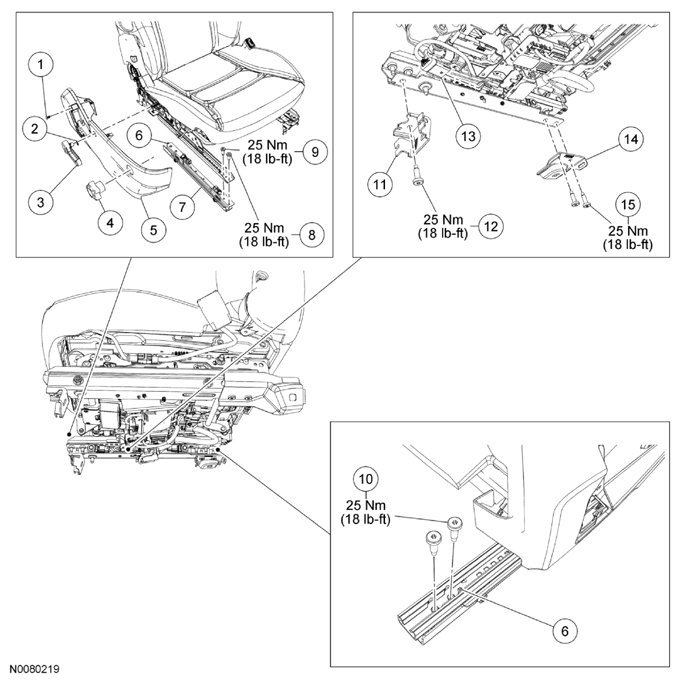

Outboard shown in the illustration, inboard similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cushion side shield scrivet (if equipped) |
| 2 | - | Manual recliner handle spring clip (part of 61198) (if equipped) |
| 3 | 61198 | Manual recliner handle (if equipped) |
| 4 | 62622 | Manual lumbar control knob (if equipped) |
| 5 | 62186 | Cushion side shield |
| 6 | - | Occupant Classification System (OCS) weight sensor assembly locating pin (part of 61708) |
| 7 | 61708 | OCS weight sensor assembly |
| 8 | - | OCS weight sensor assembly front mounting position front bolt (part of 61708) |
| 9 | - | OCS weight sensor assembly front mounting position rear bolt (part of 61708) |
| 10 | - | OCS weight sensor assembly rear bolt (part of 61708) (2 required) |
| 11 | 61913 | Forward seat riser |
| 12 | - | Forward seat riser bolt |
| 13 | - | OCS weight sensor assembly electrical connector (part of 14A698) |
| 14 | 61913 | Rearward seat riser |
| 15 | - | Rearward seat riser bolt (2 required) |
