Occupant Classification Sensor: Removal

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Use care when handling the front passenger seat and track assembly. Dropping the assembly, placing excessive weight on or sitting on a front passenger seat that is not secured in the vehicle may result in damaged seat components. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS) and increases the risk of serious personal injury or death in a crash.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

All Occupant Classification System (OCS) weight sensor assemblies

Remove the passenger seat. For additional information, refer to SEAT SYSTEM - SEATS -- FUSION, MILAN & MKZ article.
Outboard OCS weight sensor assembly
If equipped, remove the manual lumbar control knob.
If equipped, remove the spring clip and the manual recliner handle.

NOTE: Do not reinstall the cushion side shield or side shield retainers after removal. These are one-time-use items that become damaged during removal and may not remain attached if reinstalled. Install a new side shield (includes new retainers attached).

Remove and discard the cushion side shield.
- If equipped, remove the scrivet.
- Pull out on the side and rear of the cushion side shield and release the retainers.
  - Separate the wire harness from the cushion side shield.
- Remove the side shield and any remaining side shield retainers from the seat and discard.
Seat receiving a new OCS weight sensor assembly
Remove the bolt and the forward seat riser from the affected side OCS weight sensor assembly.
Remove the 2 bolts and the rearward seat riser from the affected side OCS weight sensor assembly.
All OCS weight sensor assemblies

NOTE: Note the position and the routing of the OCS system electrical wiring and connector for installation.

On the affected side, disconnect the OCS weight sensor assembly electrical connector.
If equipped, disconnect the power seat track motor electrical connector.
Move the seat to the forward most position.
- If equipped with a power seat track, apply power and ground to the pins shown in the illustration.

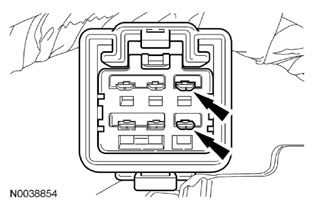

  Fig 1: Locating Power Seat Track Pins
  Courtesy of FORD MOTOR CO.
Remove the 2 rear bolts from the affected OCS weight sensor assembly.
Move the seat to the rearward most position.
- If equipped with a power seat track, apply power and ground to the pins shown in the illustration.

  Fig 2: Locating Power Seat Track Pins
  Courtesy of FORD MOTOR CO.
Remove the 2 front bolts and the OCS weight sensor assembly.
